The Invisible Core of AR Optical Waveguide Mass Production: How Dispensing Systems Determine Yield And Imaging Limits
Views: 0 Author: Site Editor Publish Time: 2026-07-11 Origin: Site
Within the AR smart glasses supply chain, the optical waveguide is indisputably the "heart" of the system. Whether dealing with lightweight, consumer-grade diffractive waveguides or cost-effective geometric waveguides, the final product's clarity, light transmission, slimness, and imaging uniformity depend almost entirely on downstream precision manufacturing processes.
While many focus on waveguide materials, nano-imprinting, and wafer processing, they often overlook the dispensing system—a core process that spans the entire journey from raw waveguide substrate to finished product. At leading waveguide manufacturing facilities, dispensing is no longer a simple matter of applying adhesive; it has evolved into a precision manufacturing process characterized by micron-level accuracy, visual closed-loop control, and algorithmic calibration. This process directly determines mass production yields, stability, and the ultimate limits of product performance.
In short: the ceiling for waveguide imaging performance is defined equally by optical design and precision dispensing.
Why do optical waveguide factories have a "zero-tolerance" policy for dispensing errors?
Unlike the structural dispensing processes used for standard consumer electronics, optical waveguides are ultra-precision optical components; issues such as adhesive layer thickness variations, unevenness, air bubbles, adhesive overflow, or misalignment directly cause irreversible optical defects.
The core challenges in the mass production of optical waveguides are concentrated in the dispensing process:
Deviations in adhesive layer thickness exceeding 5 μm can lead to optical path misalignment, image ghosting, and color unevenness;
Micro-bubbles within the adhesive layers can cause stray light spots, localized blackouts, and reduced light transmission;
Uneven edge sealing or adhesive overflow obstructing the light path can result in light leakage and glare, severely compromising the visual experience during outdoor use;
Uneven stress during coupling and bonding makes the finished product highly susceptible to waveguide cracking or delamination when subjected to drops or temperature fluctuations.
Consequently, leading optical waveguide manufacturers have long since phased out manual dispensing and standard 3-axis dispensing equipment in favor of fully integrated systems featuring vision-guided alignment, micron-level precision dispensing, and UV curing, thereby achieving end-to-end automation and standardized process control.
Comprehensive Implementation: Dispensing Systems in the Six Core Processes of Optical Waveguide Manufacturing
From optical waveguide die processing and multi-layer lamination to optomechanical coupling, light-shielding packaging, and final assembly, dispensing systems are integral to the entire optical waveguide production chain—spanning the initial, intermediate, and final stages—making this one of the processes with the highest number of workstations and the most profound impact on the production line.

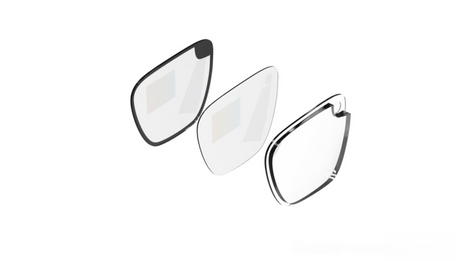

Interlayer dispensing for optical waveguide multi-layer lamination (core imaging process)
Arrayed optical waveguides and multi-layer composite optical waveguides rely on the stacking of multiple waveguide layers for optical signal transmission; any air gaps between these layers would completely compromise optical performance. This manufacturing step requires a precision dispensing system to create an ultra-thin, uniform adhesive layer, utilizing high-refractive-index optical UV adhesive to precisely match the refractive index of the optical path.
The equipment must be capable of dispensing adhesive in nanoliter-scale volumes while controlling layer thickness variations to within 5 μm. The process must ensure a completely bubble-free and uniform adhesive layer—eliminating air-gap interference and guaranteeing stable light transmission—which is fundamental to achieving clear imaging in optical waveguides.
Precision Bonding and Dispensing for Waveguide Lenses and Frames
Bonding and securing optical waveguide lenses to plastic or metal frames is a fundamental step in mass production. Conventional dispensing methods are prone to issues such as adhesive overflow, indentation marks, misalignment, and uneven stress distribution, which can lead to deformation of the finished product and image distortion.
Automated vision-guided dispensing systems utilize CCD vision to automatically identify fiducial marks and dynamically compensate for positional deviations. They apply adhesive evenly along the lens edge—maintaining a stable bead width of 0.15–0.3 mm—to balance bonding strength with zero optical interference, thereby eliminating deformation issues associated with the bonding process.
Waveguide Edge Light-Blocking Sealing (Ink Coating) Process
The primary drawback in the user experience of AR optical waveguides is the issue of light leakage and stray light. To address this, the manufacturing process employs a black UV light-blocking adhesive to fully seal the waveguide edges and non-optical active areas, thereby preventing stray light from escaping the optical path.
This process demands exceptional equipment flexibility, requiring a five-axis motion control system capable of adaptive dispensing along curved surfaces and irregular edges. The resulting adhesive layer is uniform—free of breaks or accumulation—effectively eliminating glare and image washout in high-brightness environments while significantly enhancing AR display contrast.
Precision Dispensing and Curing for Optical Waveguide and Optical Engine Coupling
The optical coupling between the waveguide and the Micro-OLED or LCoS micro-display optical engine is a critical process that determines imaging accuracy. The industry-standard approach employs an integrated process combining optical alignment, automated dispensing, and UV curing.
The equipment first utilizes a micron-level adjustment platform to achieve optimal optical path alignment and lock in the position for maximum optical power transmission; it then precisely dispenses a low-stress optical matching adhesive and rapidly cures it with UV light to set the assembly. The entire process requires no manual intervention, ensuring zero optical path deviation and maximizing coupling efficiency while preventing imaging shifts caused by adhesive stress—making it an essential process for the mass production of high-end optical waveguides.
Dustproof and Moisture-proof Dispensing for Waveguide Modules
The internal optical path structure of optical waveguide lenses is highly precise and susceptible to damage from dust and moisture, which can cause bright spots, dark spots, or signal attenuation. During module packaging, a dispensing system applies a continuous seal between the waveguide, the mounting bracket, and the housing, creating a complete protective barrier.
By utilizing low-volatility, high-adhesion optical adhesives that neither leach nor corrode the optical lenses after curing, the process effectively improves product yield and service life, making the modules suitable for demanding environments such as outdoor activities and sports.
Module Reinforcement and Stress-Buffering Dispensing
As wearable devices, AR glasses are frequently subjected to bending, drops, and thermal shock. Dispensing systems apply buffering and reinforcing adhesive with high precision at critical stress points on the optical waveguide module; this balances assembly stresses and prevents cracking or delamination of the waveguide lenses caused by compression or vibration, thereby significantly enhancing product reliability and durability.
How does precision dispensing reshape mass production capabilities for optical waveguides?
In the mass production of optical waveguides, dispensing systems have evolved far beyond mere "processing equipment"; they serve as a cornerstone for quality and efficiency, effectively resolving numerous pain points associated with traditional manufacturing methods.
Precision Control to Eliminate Optical Defects
High-precision vision-guided dispensing equipment achieves a repeatability of ±0.01 mm and a dispensing volume tolerance of ±1%. Utilizing end-to-end closed-loop visual compensation, the system eliminates issues common to manual dispensing—such as uneven thickness, adhesive overflow, and misalignment—thereby preventing optical defects like ghosting, light leakage, and distortion at the source.
Cost Reduction and Efficiency Gains for Mass Production
Traditional manual dispensing relies on the experience of skilled operators, leading to inconsistent yields and limited production capacity. Automated dispensing systems enable continuous, stable 24-hour operation; when combined with rapid UV curing, they significantly reduce processing time per unit, maintain consistently high yields, and effectively lower costs associated with rework and scrap.
Process standardization ensures product consistency
Leveraging AI algorithms and visualized parameter control, dispensing paths, adhesive volume, curing times, and adhesive layer thickness are all quantifiable and traceable; this thoroughly resolves issues regarding batch-to-batch color variations and imaging discrepancies, ensuring highly consistent quality for every single optical waveguide.
Industry Trend: Dispensing Precision Determines the Next-Generation AR Glasses Experience
As AR glasses evolve toward lighter, thinner, and higher-resolution designs capable of all-day wear and imaging, and as optical waveguide manufacturing processes continue to advance, the requirements for dispensing systems are becoming increasingly stringent.
The evolution of precision dispensing technology—ranging from early standard planar dispensing to modern capabilities such as 3D contour-following dispensing, ultra-thin micro/nano-scale adhesive layer control, multi-material gradient dispensing, and integrated coupling-curing processes—is continuously pushing the boundaries of optical waveguide imaging performance.
Looking ahead, as diffractive optical waveguides achieve mass adoption and consumer-grade AR glasses see widespread market rollout, core competitiveness will shift beyond optical materials and design to a contest of refinement in micron-level precision manufacturing processes; in this arena, dispensing systems serve as a critical strategic asset.
Conclusion
Laypeople evaluate optical waveguides based on materials, light transmission, and design;
Experts evaluate them based on dispensing, manufacturing processes, and yield rates.
As the invisible yet core process in mass production, precision dispensing systems span the entire workflow—from optical molding and coupling/packaging to protective reinforcement. By upholding the baseline of AR imaging quality with micron-level precision, these systems serve as critical infrastructure enabling the large-scale commercialization of consumer-grade AR.
Amid the rapid expansion of the AR industry, the continuous evolution of advanced dispensing technology will ultimately transform smart glasses from devices that are merely "functional" into products that offer a "superb user experience."
