Analysis of Near-Eye Display (NED) Technology

A near-eye display (NED) is a display device designed to be used in close proximity to the eye—typically just a few centimeters away. Unlike traditional screens viewed from a distance, an NED utilizes a sophisticated optical system to project images generated by an internal micro-display into a larger, more distant virtual image.

What the user perceives is not the display panel itself, but a virtual image optically rendered at a comfortable viewing distance. This capability is fundamental to creating immersive and natural visual experiences, particularly in wearable systems where size, weight, and power consumption are strictly constrained.

Consequently, NEDs are increasingly recognized as a core enabling technology for modern AR and VR systems, where balancing display performance, optical efficiency, and user comfort is critical. As the industry moves toward more practical, everyday wearable devices, the role of near-eye displays has evolved from that of an experimental component to a decisive factor in product success.

NEDs are most commonly found in head-mounted displays (HMDs) and smart glasses, serving as the core technology behind virtual reality (VR), augmented reality (AR), and mixed reality (MR) experiences.

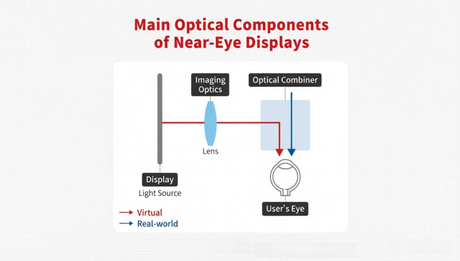

Key optical components of near-eye displays

While Near-Eye Displays (NEDs) may have a futuristic appearance, their optical systems actually consist of just three key components. These components work together to transform the image from a micro-display into a wide, comfortable virtual image that appears to float right before the user's eyes.

Display / Light Source

In near-eye display systems, the display (sometimes referred to as the light source or light engine) is the core component responsible for generating or modulating the image. Simply put, this is where the image originates before being guided and shaped by optical elements.

The display/light engine is pivotal to overall visual performance, directly influencing image clarity, color quality, brightness, energy efficiency, and motion fluidity. Different technologies are employed depending on the specific requirements of AR, VR, or MR systems. Common display and light engine technologies found in near-eye optical systems include:

LCoS (Liquid Crystal on Silicon): A reflective microdisplay technology commonly used in AR light engines. Known for its high resolution and excellent image uniformity, LCoS is often used with external lighting sources and projection optics.

MicroLED: A self-illuminating microdisplay technology that is extremely bright and energy efficient. These properties make them particularly advantageous in see-through AR displays, where overcoming interference from ambient light is critical.

LBS (Laser Beam Scanning): A display technology that generates images by scanning a laser beam. LBS can achieve a compact and thin optical design and achieve high brightness performance, making it an ideal choice for thin and light AR glasses.

OLED (Organic Light-Emitting Diode): A self-illuminating display technology known for its fast response time, high contrast, and rich colors. OLED is widely used in VR and MR near-eye displays, and brightness and service life are important considerations when applied to AR.

LCD (Liquid Crystal Display): A light modulation technology that requires an external backlight. Although it has an important historical position, compared with new micro-display technologies, its contrast ratio is lower and its response speed is slower, so its application in high-end near-eye displays has been relatively limited.

DLP/DMD system: a display technology that modulates light through a micro-mirror array. DLP/DMD systems can provide high brightness and precise image control, but when applied to near-eye devices, system size, power consumption, and optical complexity all need to be carefully managed.

Optical beam combiner

An optical combiner controls how images are transmitted to the user's eyes and how they blend with the real world. Its function varies depending on the system's design goals—whether the aim is a fully immersive experience or the overlay of digital content onto the physical environment.

In immersive systems like VR headsets, the optical combiner distributes images to both eyes while blocking out external light, allowing the user to be fully immersed in a virtual environment.

In see-through systems like AR glasses, the optical combiner plays a more complex role. It must seamlessly blend digital images with light from the real world, ensuring that graphics, text, or virtual objects integrate stably and comfortably with the user's actual surroundings. Achieving this balance requires precise control over optical efficiency, brightness, and transparency.

As AR devices increasingly enter daily life, the optical combiner has become one of the most challenging and pivotal components in near-eye display design. Its performance significantly impacts system size, visual quality, and user comfort, ultimately determining whether the near-eye display isolates the user from reality or augments it.

Imaging optics

The imaging optical system is responsible for magnifying the image from the micro-display and presenting it as a wide, comfortable visual image. These lenses or optical elements shape, magnify, and focus the light, allowing the image to appear at a natural viewing distance rather than right in front of the eyes.

There are currently two main design approaches:

An exit-pupil-forming system expands the exit-pupil range by generating an intermediate image, allowing the user to maintain a clear view even as their eyes move, thereby preventing the image from being lost due to shifts in the line of sight.

A non-exit-pupil-forming system directs nearly parallel light into the eye, presenting the image at a greater visual distance, which helps reduce eye strain.

Its core objective is to ensure visual clarity while accommodating natural eye movement and maintaining comfort during prolonged use.

These three components form a complete optical system, with the human eye serving as the final link. The image generator creates the visual content; the imaging optics magnify and shape the image; and the optical combiner determines how the image is delivered to the eye and whether it blends with the real world.

Rather than projecting images onto a physical surface, the system directly generates a virtual image and a virtual exit pupil. When the eye is positioned within this zone, the lens focuses the light directly onto the retina, making the micro-display's image appear as a massive screen suspended in space.

Think of a near-eye display as a high-tech window: the image generator represents the scene displayed within the window; the imaging optics act as special glass that makes the scene appear wider and more distant; and the optical combiner determines whether the window is transparent or opaque. Together, these elements create a sense of depth, scale, and immersion, defining the unique visual experience of a near-eye display.

NED Measurement Challenges

The measurement and evaluation of near-eye displays (NEDs) differ fundamentally from the testing methods used for conventional screens. Because these devices are specifically designed to interface with the human eye, the measurement system must do far more than simply capture light. It must simulate the geometry, movement, and perceptual characteristics of the human eye, performing measurements within a tiny "eye box" by precisely positioning the camera's entrance pupil where the actual eye would be, while simultaneously accounting for ocular rotation and focusing mechanisms.

This unique set of requirements makes NED measurement one of the most challenging aspects of display metrology; it also directly underpins the two core factors that determine the success or failure of the near-eye display experience: comfort and immersion.

Comfort

Comfort determines whether a Near-Eye Display (NED) allows for natural, prolonged use without causing fatigue or discomfort; measurement technology helps engineers identify and resolve issues affecting the user's vision, sense of balance, and overall physical experience.

One of the most critical challenges is the Vergence-Accommodation Conflict (VAC). In natural vision, the eyes converge inward to fixate on an object while simultaneously adjusting their focal distance to match that object's location. In many NED systems, however, the eyes may converge on a virtual object while the focal distance remains fixed at a different optical distance. This discrepancy is a primary cause of eye strain, fatigue, dizziness, and nausea, making VAC a top priority in both design and measurement.

Hardware design is equally crucial; as NEDs are head-mounted devices, weight, dimensions, and center-of-gravity balance directly impact wearing comfort. Even with exceptional display quality, a device that is too heavy or poorly balanced makes prolonged use difficult for the user. Measurement technology plays a pivotal role here, ensuring that optical designs achieve a compact, lightweight form factor without compromising performance.

Another key aspect is spatial configuration, typically described in terms of eye clearance and eye relief. Eye clearance refers to the distance between the final optical surface and the exit pupil—usually around 20 to 25 millimeters—while eye relief is the distance from the final optical surface to the ideal eye position. Precise control of these distances is essential to ensure wearer comfort, compatibility with eyeglasses, and operational safety.

Closely related to this is the "eye box," which defines the spatial range within which the eye can move while still viewing the full image. A well-designed eye box allows for natural eye movement without image cropping or distortion. Measurement techniques must evaluate both the size and position of the eye box to ensure a consistently comfortable experience for diverse users.

Furthermore, the system must account for the user's vestibular system—the sensory system responsible for balance and spatial orientation. If visual signals from one or both eyes are misaligned, the brain may interpret them as conflicting motion information, potentially leading to discomfort or motion sickness. Precise measurement helps prevent such sensory inconsistencies.

Immersion

Immersion determines the realism and fluidity of a virtual experience. A highly immersive Near-Eye Display (NED) ensures that digital content is stable, responsive, and visually lifelike.

Field of View (FOV) is a critical factor influencing immersion. A wider FOV fills more of the user's visual space and enhances the sense of presence, yet it often entails trade-offs, such as reduced resolution or a smaller eyebox. Finding the optimal balance among these trade-offs is precisely where measurement technology plays a vital role.

Resolution and image clarity are also central to visual quality. Insufficient pixel density can lead to the "screen-door effect," where individual pixels or the gaps between them become clearly visible. In near-eye displays, resolution is typically measured in pixels per degree (PPD), representing the number of pixels displayed within every degree of the user's field of view.

PPD is one of the most critical performance metrics for AR and VR systems; higher values indicate sharper images and a more natural visual experience.

Measurement systems utilize tools such as Modulation Transfer Function (MTF) analysis to evaluate resolution and image clarity, thereby assessing the optical system's ability to reproduce fine details. By combining PPD measurements with MTF analysis, engineers can comprehensively evaluate whether a display offers sufficient clarity to deliver a comfortable and immersive user experience.

Brightness and contrast significantly impact realism and readability. Immersive displays require high contrast to render deep blacks, whereas see-through AR systems must ensure that digital content remains clearly visible against bright, complex real-world backgrounds.

Latency is another critical parameter affecting immersion; any noticeable lag between head movement and the updating of the visual display shatters the sense of presence and can even trigger motion sickness. Precise measurement ensures that system responsiveness remains both fast and stable.

For see-through displays, managing the depth of field is particularly crucial—users must be able to clearly see both digital content and physical objects simultaneously without frequently refocusing; otherwise, the sense of immersion instantly collapses.

Source: UPRtek
