154mAh Vs 48 Hours: The "Impossible Triangle" of AI Glasses Battery Life And The Hidden Battle in Battery Technology

From liquid lithium to all-solid-state: How micro-batteries within 2.2mm-thick temple arms define the make-or-break factor for the next generation of smart glasses.

Have you noticed a strange phenomenon? Promotional materials for 2026 AI glasses make extravagant claims—4K recording, real-time translation, AI large-model conversations, spatial displays... yet once they reach users' hands, the most common complaint is always the same: the battery doesn't last long enough.

What is even more noteworthy is that this is not an issue unique to a single company. The Ray-Ban Meta (154mAh) offers four hours of normal use, but frequent photo-taking and AI interactions cut that time in half to just two hours; the V3 (158mAh) manages only 30 minutes of video recording; and even the V4—launched in May 2026 and touted as featuring a semi-solid-state battery with a "massive 57% capacity boost"—essentially does little more than nudge the energy density ceiling of traditional lithium-ion technology slightly higher.

Why does the entire industry shy away from the fact that the battery is the true Achilles' heel of AI glasses? This article dissects the battleground most deeply obscured by "glamorous specifications"—ranging from the distribution of total system power consumption and the physical limits of miniaturizing temple-integrated batteries to the industrialization race among semi-solid-state, all-solid-state, and silicon-carbon anode technologies, as well as a critical variable overlooked by the vast majority of reviews: thermal management.

I. The Battery Life Dilemma: Why Is AI Eyewear’s Battery Life Never Enough?

Data from the China Academy of Information and Communications Technology (CAICT) for 2025 shows that the average battery life of AI glasses is merely 6.77 hours, while products featuring AR display capabilities average less than 3 hours. This reveals a gap—as yet unbridged—between actual performance and the industry's stated goal of "all-day wear" (over 12 hours).

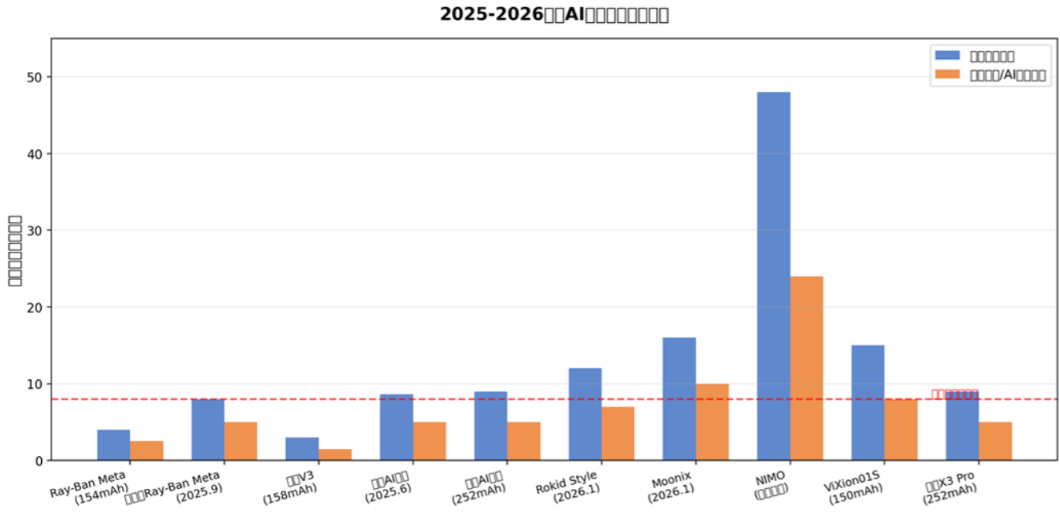

[Chart: Real-world Battery Life Comparison of Mainstream AI Glasses (2025–2026)]

The chart above reveals a stark disparity: screenless AI glasses (featuring audio and camera capabilities) have surpassed 12 hours of battery life using low-power MCU solutions (e.g., Rokid Style at 12h, Moonix at 16h, and NIMO at 48h). In contrast, AI/AR glasses equipped with displays—widely recognized in the industry as the "ultimate form factor"—remain stuck in the 2-to-5-hour range. This implies that for every additional pixel added to the display, the cost in terms of battery life is exponential.

Key findings:

• RayNeo V4 released in May 2026, features a semi-solid-state battery with 57% more capacity than the V3; however, the increase in battery life falls far short of the increase in capacity, as the rise in power consumption from AI computing loads—particularly on-device large model inference—outpaces the growth in battery energy density.

• NIMO’s 48-hour battery life relies on a configuration devoid of cameras and displays, utilizing only minimal sensors; essentially, it is a pair of glasses with Bluetooth audio capabilities, falling far short of the full definition of "AI glasses."

• Huawei’s AI glasses (equipped with 252mAh dual-side batteries) achieve 9 hours of audio playback or 8 hours of talk time; yet, the performance during 78 minutes of continuous live streaming reveals a stark reality: when high-load, continuous tasks are running, the remaining battery life is measured in mere minutes.

II. Power Consumption Breakdown: What Exactly Is "Stealing" Your Battery Life?

To understand the bottleneck in battery life, we must first answer a question: why does a pair of glasses weighing 40g—equipped with a 154mAh battery (approximately 0.57Wh)—last only 30 minutes when facing a peak system-wide power load approaching 3W?

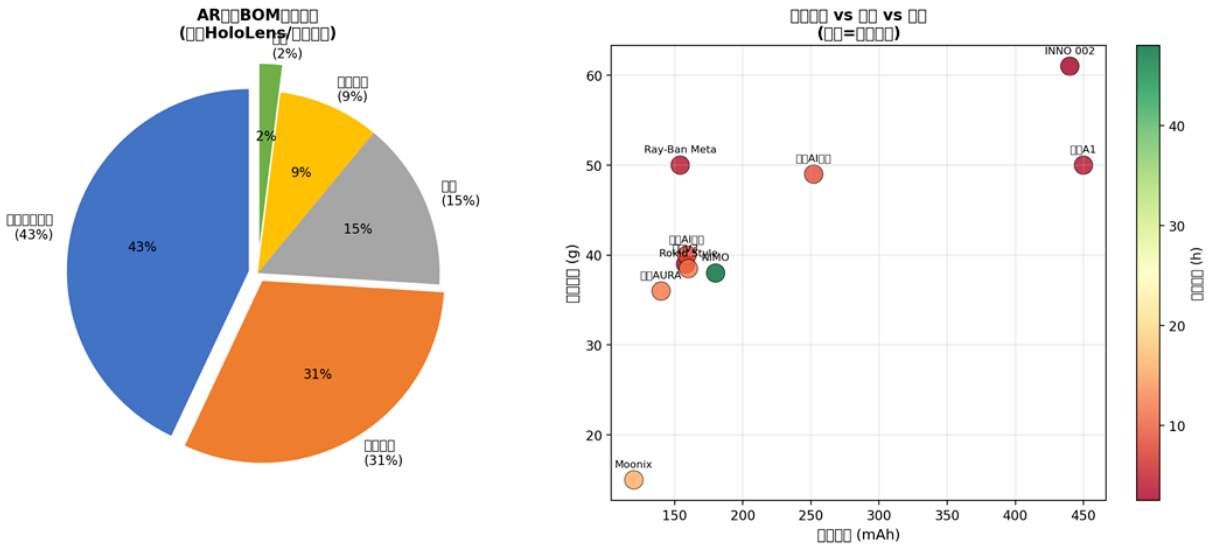

[Chart: AI Glasses BOM Cost Structure and the Relationship Between Battery, Weight, and Battery Life]

The image on the left is based on iResearch’s Bill of Materials (BOM) breakdown for the HoloLens: the optical display unit accounts for 43%, the computing unit for 31%, storage for 15%, and the sensing unit for 9%—whereas the battery accounts for only 2%. This is not because batteries are cheap, but because the battery has been physically "squeezed" to the absolute limit: within a total weight budget of 40g, the battery is typically allocated only 5–8g.

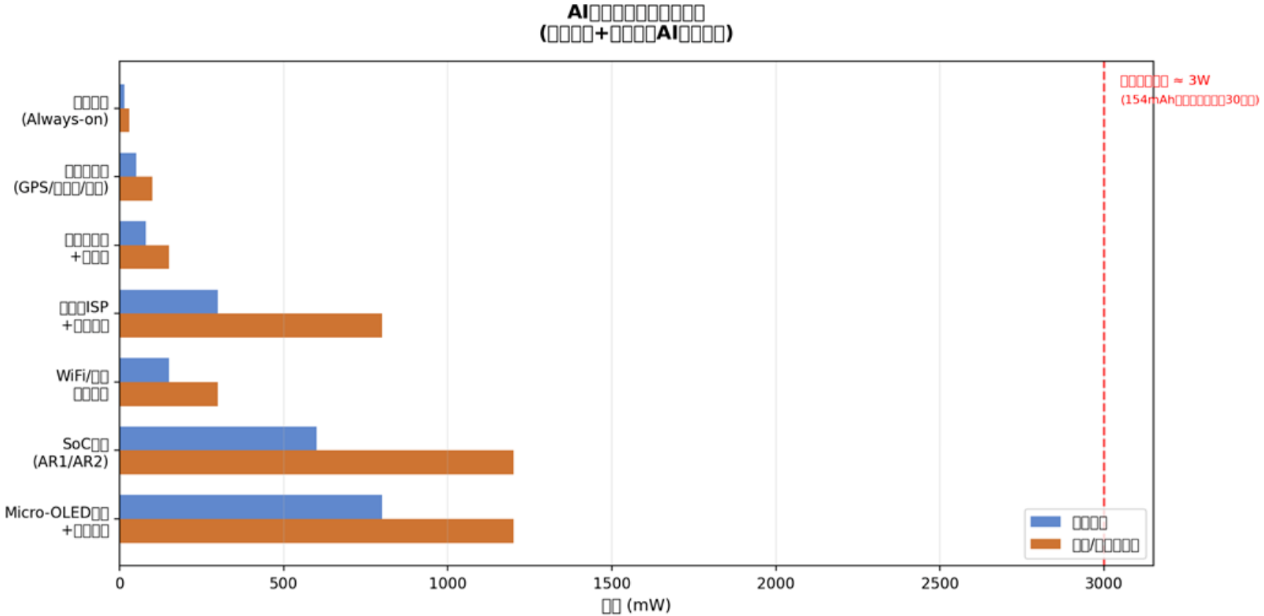

[Chart: Power Consumption Breakdown of AI Glasses Core Modules]

The table above reveals the "three major thieves" of power consumption:

1. Display module (Micro-OLED + optical engine driver): Typical power consumption is 800mW, with a peak of 1.2W. This is the fundamental reason why the battery life of AR glasses with built-in displays cannot exceed five hours. The optical engine must "project" the image into the waveguide and then couple it into the user's eye; optical losses at each stage consume significant power.

2. SoC main controller (Qualcomm AR1/AR2): Typical power consumption is 600mW, with a peak of 1.2W. On-device AI inference tasks (such as voice wake-up, real-time translation, and image recognition) require the NPU or DSP to remain active; the AR1's wake-up power draw is approximately 10mA—acting as an "invisible drain" on standby power.

3. Camera ISP + image processing: Typical power consumption is 300mW, with a peak of 800mW. Tasks such as 4K recording, real-time encoding, and AI-based visual analysis (e.g., object recognition and scene understanding) cause power consumption in this area to spike.

A deeper conflict lies in the fact that the "always-on" nature of AI glasses requires the device to continuously monitor its environment (for voice wake-up and sensor data acquisition), making it impossible to reduce standby power consumption to the microampere level typical of smartphones. While Jiutian Ruixin’s ADA100 processor manages to keep average power consumption below 70 μA—and under 170 μA during full-power operation—this optimization applies only to the single function of "voice wake-up"; power consumption still rises exponentially once multimodal interaction is involved.

III. Battery Miniaturization: The Ultimate Challenge of Fitting a Battery into a 2.2mm Eyeglass Frame

An in-depth analysis published on a Zhihu column in January 2026 pointed out that, given the extremely limited space and the need for small-capacity batteries (under 500 mAh) in smart glasses, traditional graphite anodes have reached their volumetric energy density limits. Manufacturers have only two paths for a breakthrough: switching material systems or changing structural forms.

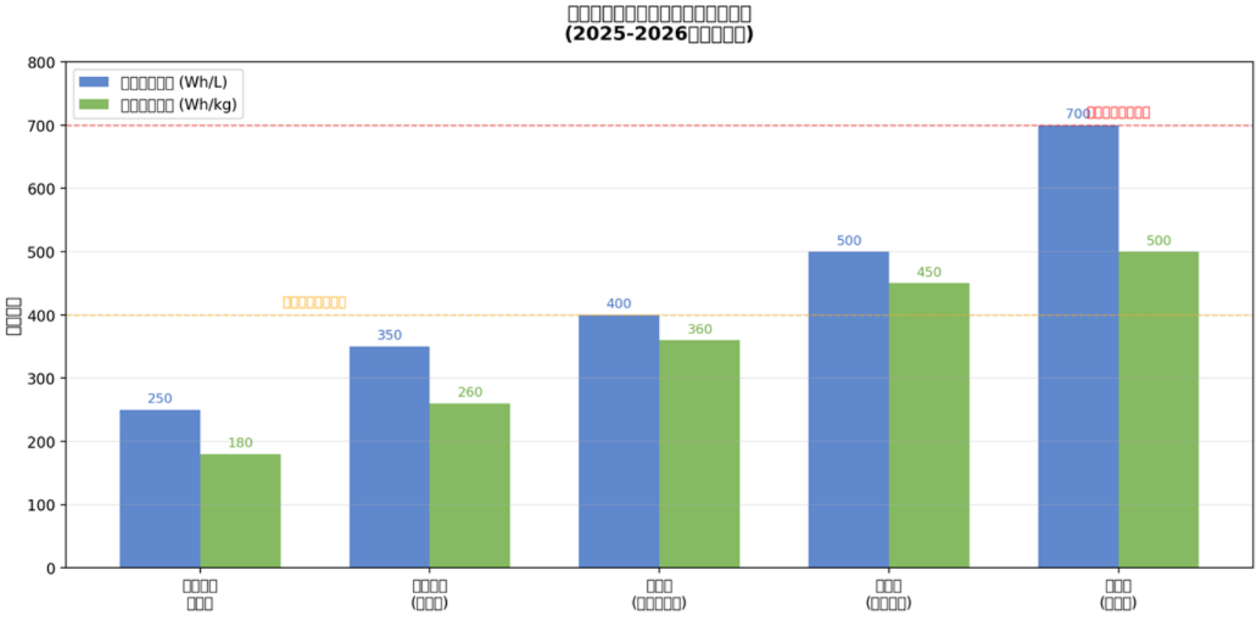

[Chart: Evolution of Energy Density in Smart Glasses Battery Technology Roadmaps]

Traditional liquid lithium-ion: Volumetric energy density is approximately 250 Wh/L, hitting a ceiling at a thickness of 2.2 mm.

Silicon-carbon anodes: Theoretical specific capacity is 10 times that of graphite, with actual energy density increasing by 30–50%. While implemented in mid-to-high-end smartphones by 2025, penetration into micro-batteries (<500 mAh) still faces challenges such as volumetric expansion and cyclic stress.

Semi-solid state: Energy density exceeds 360–400 Wh/kg, and volumetric energy density increases by 30–40%; mass-market application began in 2025–2026. Products such as the RayNeo V4 and Shanji A1 already feature this technology.

All-solid-state: Theoretical energy density is 400–500 Wh/kg, with volumetric energy density expected to surpass 700 Wh/L. However, as of 2026, it remains in the laboratory or pilot-testing stage, with small-scale application in consumer electronics not expected until 2027.

The "Invisible Revolution" of Structural Form:

• Steel-cased button cells: Utilizing a proprietary encapsulation process, these cells offer approximately 20% higher capacity for the same volume; they are already used in the "racetrack-shaped" battery modules of consumer smart glasses such as NIMO.

• Irregular form factor: Batteries are embedded directly into the curved space of the temple arms, eliminating the need for redundant structural designs required to accommodate standard batteries.

• Lamination technology: Mass production of AI smart glass batteries featuring lamination technology and a 20% silicon-doping ratio is scheduled for Q3 2026; this offers a 15–25% increase in volumetric energy density compared to winding technology.

• Dual-temple symmetrical power supply: Devices such as the Huawei and RayNeo X3 Pro employ a symmetrical layout with 126mAh batteries in each temple, balancing weight distribution while reducing localized heat generation.

IV. Technological Breakthroughs: The "Three-Way Battle" of Battery Solutions for 2026

Current battery technology for AI glasses is following three parallel paths, each with its own advantages and disadvantages:

Yaoshi Lithium’s "2.0 Solution": In February 2026, Yaoshi Lithium completed a Series A funding round raising RMB 200 million. Its "2.0" ultra-high energy density solid-state battery (energy density >1000 Wh/L) addresses the challenge of balancing capacity and safety within the compact form factor of AI glasses; leveraging in-situ solid-state technology and highly corrosion-resistant micro-packaging processes, the battery has already been validated by leading clients. This represents the battery solution with the highest energy density for AI glasses currently disclosed in public records.

Haopeng Technology’s "High-Silicon Pathway": By Q4 2025, Haopeng Technology had completed the development of high-silicon-content lithium-ion batteries and deployed them in wearable products. The company plans to collaborate with a European strategic partner in silicon materials to develop lithium-ion batteries featuring 100% silicon anodes, with future plans to supply these products to prominent North American smart wearable brands.

V. Thermal Management: The Overlooked "Second Battery"

A fact overlooked by the vast majority of reviews and teardowns is that batteries generate heat during discharge; this heat further reduces battery efficiency, creating a vicious cycle of "heat generation → reduced efficiency → faster depletion → increased heat." Within the confined 40-gram space of the temple arm, this issue is exponentially amplified.

Passive Cooling:

• Graphene thermal film: Widely used in high-end AI glasses, it can lower hotspot temperatures by 3–5°C but fails to resolve heat accumulation during sustained high-load operation.

• Vapor Chamber (VC): Evenly distributes heat from the SoC/battery area across the temples, but adds 1–2g of weight, posing a challenge to the "40g limit."

Active Cooling:

• An April 2026 research report by Wukuang Securities indicates that miniature active cooling chips—millimeter-scale in size and weighing less than 5% of traditional solutions—have entered the commercialization stage. These chips can be integrated into the edges of eyeglass frames to enhance heat dissipation efficiency through forced convection. For a given thermal management requirement, utilizing these miniature active cooling chips allows for the reduction or replacement of passive cooling materials (such as metal frameworks and thermal pads), resulting in a net reduction in weight.

• A design example from Xinyuan Shares: Through the use of over 20 power domain partitions and dynamic voltage scaling technology, the device achieves a power consumption of just 5 μW in RTS mode and 3.8 mW in standby mode. This achievement represents not merely a victory for battery technology, but a contribution of chip architecture to the balance between thermal and electrical performance.

The "impossible triangle" of power consumption, thermal management, and weight:

Given a 40g weight limit, every additional gram of thermal management material necessitates a corresponding reduction in the weight of the battery or structural components. The industry's prevailing strategy for 2026 is "reducing the load via heterogeneous computing"—offloading low-power tasks (such as audio sensing and image preprocessing) from the main SoC to a co-processor (e.g., NXP RT600 or Ruixin Micro RK2118). By lowering system power consumption, this approach directly reduces the requirements for battery capacity and alleviates thermal management demands. The Rokid Style dual-chip architecture (NXP RT600 + Qualcomm AR1) embodies this strategy, achieving a 12-hour battery life.

VI. Industry Chain Map: Who Is Building the "Heart" of AI Glasses?

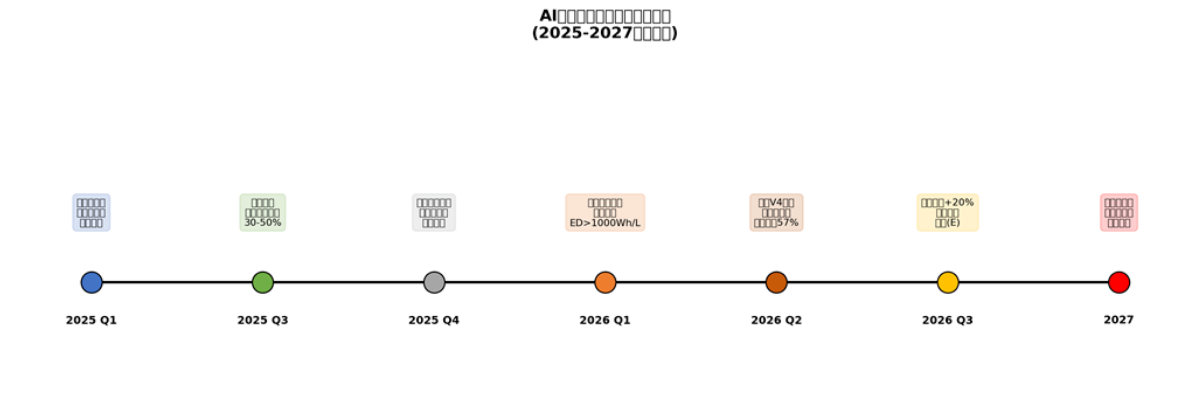

[Chart: Timeline for the Industrialization of AI Glasses Battery Technology]

Upstream Materials:

• Silicon-based anode materials: Lanxi Zhide (secured Series D funding from SAIC Jinshi Capital), Group14 (established equity and supply partnerships with Porsche), Beiterui, Xiangfenghua.

• Solid-state electrolytes: Qingtao Energy (oxide-based route),Ningdeshidai(sulfide-based route), Shanghai Xiba, Sanxiang New Materials.

• Electrolytes/Separators: Tinci Materials, Enjie (transitioning toward semi-solid/solid-state).

Midstream Battery Manufacturing:

• Yaoshi Lithium: Solid-state battery solution tailored for AI glasses; energy density >1,000 Wh/L; raised RMB 200 million in Series A funding (led by Wuyuefeng).

• Haopeng Technology: High-silicon-content lithium-ion batteries; validation for wearable applications completed.

• ATL (Amperex Technology Limited): Supplies high-energy-density temple batteries to leading brands such as Huawei and Xiaomi.

• Weilan Lithium Core: Small cylindrical batteries with silicon-based anodes; already used in power tools and expanding into the wearables sector.

Downstream Device Manufacturers/ODM:

• RayNeo: The V4 model features a semi-solid-state battery with a 57% increase in capacity, marking the first large-scale implementation of semi-solid-state battery technology in AI glasses.

• Huawei: Utilizes a symmetrical dual-side power supply design (252mAh) to balance weight distribution and battery life.

• Moonix: Achieves extended battery life (16 hours) in an ultra-light 14.9g frame through a minimalist feature set and a custom battery.

• Dongguan Industrial Cluster: ODM/OEM companies such as Sileke, Jiahe Smart, EssilorLuxottica, and Huahong have established a complete supply chain ecosystem, ranging from batteries to finished devices.

VII. Future Trends: When can "all-day wear" truly be achieved?

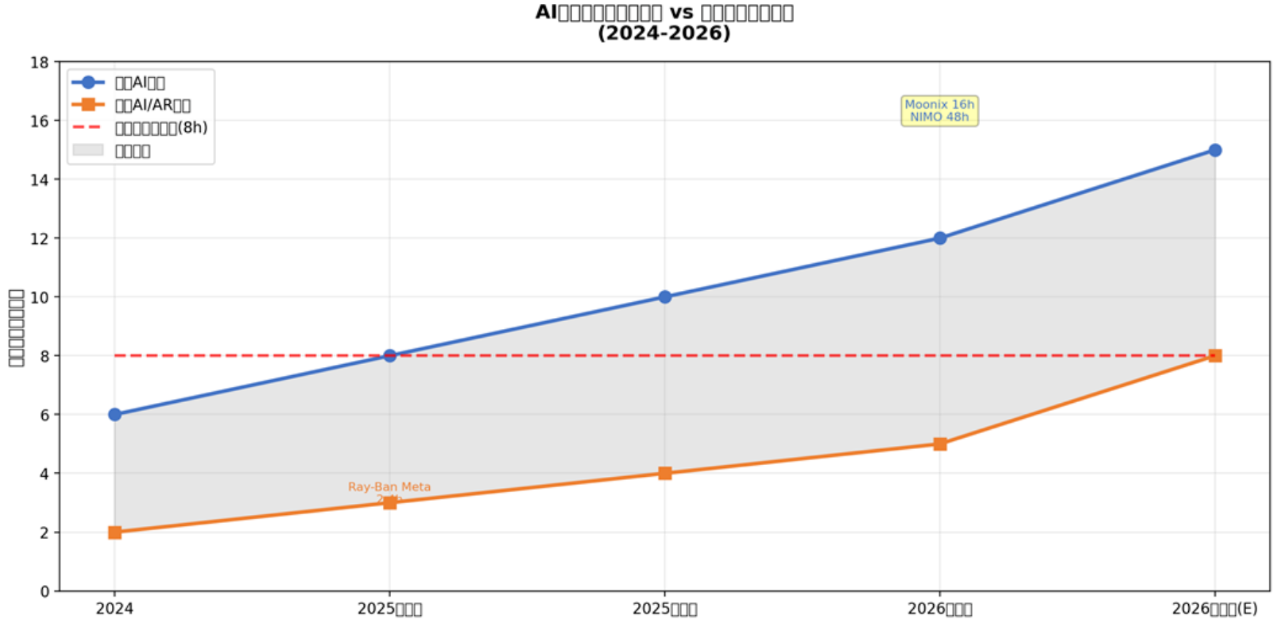

[Chart: Evolution of AI Glasses Battery Life – The Widening Gap Between Screenless and Screen-Equipped Models]

Short-term (2026–2027): Semi-solid-state batteries and silicon-carbon anodes become the standard configuration.

• Energy density increases by 30–50%, and battery life extends from 4 hours toward 8 hours, though it remains insufficient for all-day use of AR glasses equipped with displays.

• Multi-chip heterogeneous architecture (SoC + MCU/coprocessor) reduces system power consumption by 20–30%, indirectly extending battery life.

• Fast charging technology: Full charge in 40 minutes (RayNeo V3) → Fast charge in 15 minutes (target for 2027).

Medium-term (2027–2029): Small-scale adoption of all-solid-state batteries in vehicles and consumer electronics

• Academician Ouyang Minggao (February 2025) highlighted a strategic focus on the technology pathway combining sulfide electrolytes, high-nickel ternary cathodes, and silicon-carbon anodes. With performance targets set at an energy density of 400 Wh/kg and a cycle life of 1,000 cycles, the goal is to ensure small-batch installation in passenger cars by 2027; adoption in consumer electronics is expected to lag by 1–2 years.

• Volumetric energy density will exceed 700 Wh/L, potentially enabling AR glasses with integrated displays to achieve a battery life of 12–16 hours.

• Wireless charging or magnetic contact charging will become standard features, eliminating the need for nearsighted users to carry two pairs of glasses.

Long-term (2030+): The ultimate solution combining lithium-metal anodes and all-solid-state technology.

• Energy density exceeding 500 Wh/kg; cycle life of over 2,000 cycles.

• The battery is no longer a "burden" on the temple arms but a "distributed energy source" embedded within the frames, hinges, or even the lenses.

• Mature photovoltaic/thermoelectric auxiliary power technologies make "perpetual battery life" theoretically possible.

Conclusion: The battery is not merely an adjunct to product specifications; it is the "foundational issue" for AI glasses.

In the 2026 AI eyewear landscape, everyone is buzzing about optical waveguides, Micro-OLEDs, and on-device large models—yet the battery remains the fundamental variable determining whether the device is actually usable. The Ray-Ban Meta’s 154mAh battery struggles to last through an afternoon, while the NIMO—boasting 48-hour longevity—achieves this only by stripping away core features; the industry’s rhetoric regarding battery life is, at its core, an attempt to sidestep physical limitations.

The true turning point lies not in spec sheets, but in materials laboratories: only when semi-solid-state technology achieves true scale, all-solid-state technology clears the cost hurdle, and the cycle life of silicon-carbon anodes catches up with that of graphite—only then will AI glasses truly deserve to be called "all-day intelligent companions." Until then, all proclamations that "the future is here" are merely self-consolation in the intervals between plugging and unplugging the charger.

The data in this article is current as of July 2026, and the progress of technical pathways is based on publicly available information.
