Will The Future of AI Glasses Be Held Back by Heat Dissipation Issues

The development of any computing platform eventually hits physical limits. For AI glasses, that limit is heat—specifically, heat that directly affects the user's face. The objective for AI glasses is clear: to provide an always-on AI assistant, real-time translation, and context-aware capabilities that deeply integrate with the real world. Unlike smartphones, which operate on a pattern of short bursts of use interspersed with standby periods, AI glasses are designed for continuous, all-day wear. This means the system must not only deliver sustained computing power but also manage heat effectively while in direct contact with the user's skin.

In this type of product, performance is not determined solely by chip capabilities; it is also constrained by human tolerance for temperature.

Thermal constraints of skin-interfaced devices

Unlike traditional consumer electronics, wearable devices are subject to stricter thermal management standards. Products such as smartwatches, fitness trackers, and wireless earbuds remain in prolonged contact with the human body, but AI glasses raise the bar even higher; worn directly on areas highly sensitive to temperature—such as the bridge of the nose and the temples—even a slight rise in heat is quickly perceived by the user.

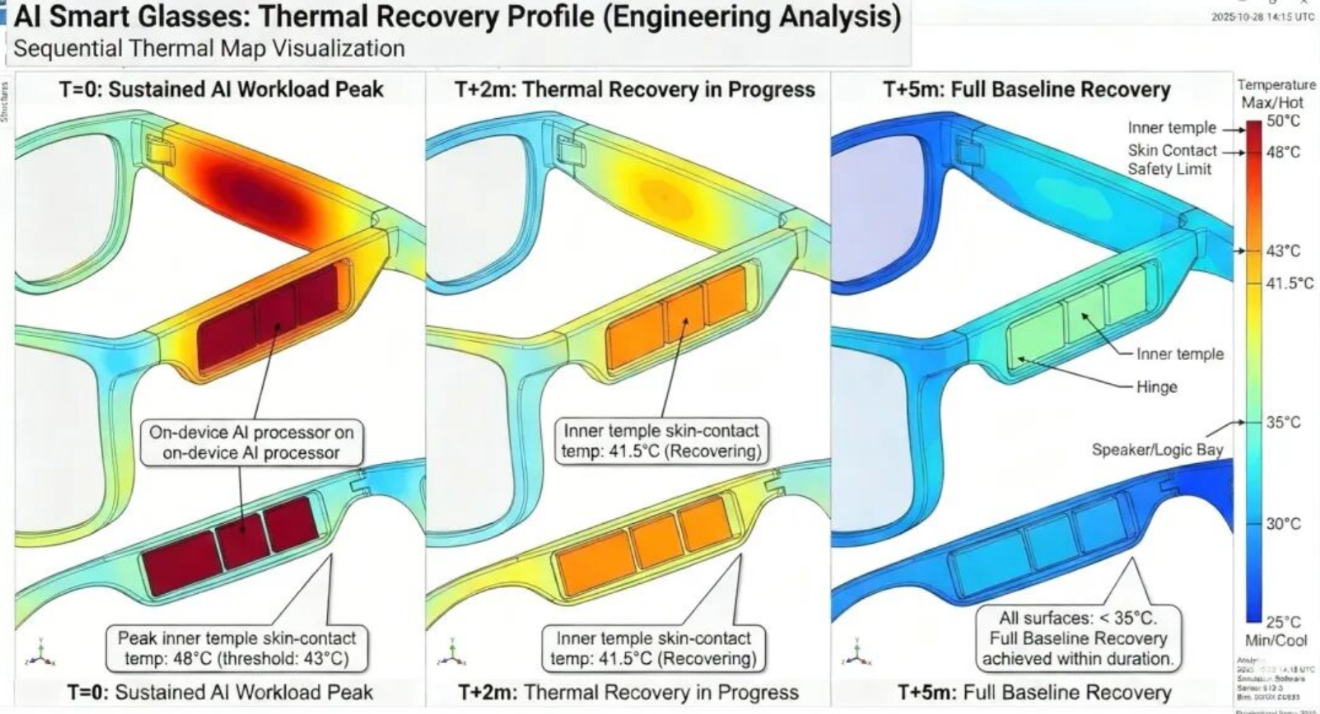

International safety standards typically limit the surface temperature of devices in contact with the skin to approximately 48°C; however, to ensure comfort during prolonged use, manufacturers often aim to keep the temperature between 41°C and 42°C. Within this narrow range, every watt of power and every degree of temperature rise must be strictly controlled.

For AI glasses, this has become a core design challenge. The frame itself offers limited surface area for heat dissipation, and the internal space is insufficient to provide an effective thermal buffer. Moreover, these devices must operate continuously in environments such as direct sunlight or high temperatures, unlike smartphones, which can cool down naturally between periods of use.

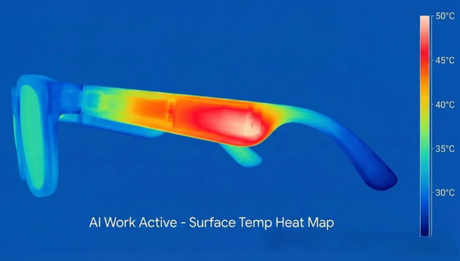

Consequently, heat accumulates rapidly. Once the frame temperature approaches the comfort threshold, the system must actively intervene—throttling performance, curtailing the duration of feature usage, or limiting the operation of certain functions.

This phenomenon is already evident in current smart glasses. For instance, high-resolution video recording is typically limited to short durations. When the camera, processor, and various sensors operate simultaneously, the system quickly nears its thermal limit and adjusts its operational state in real-time to ensure safety and wearer comfort.

In other words, the user experience of AI glasses is no longer determined solely by software; it is equally dependent on thermal management capabilities.

AI is transforming the logic of thermal management

In the past, wearable devices primarily relied on passive thermal management solutions—such as thermal spreaders, graphite layers, and metal frames—to dissipate heat by spreading it over a larger surface area before slowly releasing it into the air. While this approach sufficed for scenarios involving intermittent workloads and low power consumption, the integration of AI has fundamentally altered system operation.

Features such as on-device inference, real-time computer vision, and continuous sensing keep processors running for extended periods. Instead of the traditional pattern of brief bursts of activity followed by idle time, the system operates closer to a steady state, leading to persistent heat accumulation.

The form factor of AI glasses further exacerbates this issue. The frames offer limited surface area for heat dissipation and, being lightweight, lack the thermal mass needed to absorb heat spikes. Moreover, weight constraints make it impractical to simply add large passive cooling components, as every additional gram can compromise wearer comfort.

Consequently, the system is more prone to reaching thermal limits and remaining close to those limits during prolonged use.

Why does heat diffusion reach a limit

Currently, thermal management solutions for most compact electronic devices remain fundamentally based on heat conduction—transferring heat from the source and spreading it across a larger area. Materials such as graphite sheets and vapor chambers excel in this regard; however, once heat reaches the device's surface, the primary determinant of efficiency shifts to convective heat dissipation.

In still air, a layer of warm air forms around the device, impeding the release of heat into the surrounding environment. This "thermal boundary layer" eventually becomes a system bottleneck, limiting the rate at which heat can escape the device.

In other words, further improvements to internal thermal conduction yield diminishing returns. Since the heat has already been distributed, the critical challenge becomes how to rapidly remove that heat from the device's surface.

For AI glasses—characterized by limited space and restricted airflow—this bottleneck arises even sooner.

Consequently, the system's limiting factor is no longer merely how to conduct heat within the frame, but rather how to effectively dissipate that heat away from the frame.

AI glasses are facing a "multiple heat source" issue

The processor is not the only source of heat. As AI glasses continue to evolve, components such as cameras, sensor arrays, wireless communication modules, and AR display optical engines also continuously generate heat.

In AR glasses specifically, the display engine—which projects images onto the lenses—acts as a continuous heat source and is often located just millimeters away from the processor.

Thermal coupling occurs between these components. As internal temperatures rise, system performance may suffer, manifesting as reduced frame rates, degraded image quality, and slower response times.

Simultaneously, the temperature of the outer frame rises, increasingly approaching the threshold of human comfort.

Therefore, thermal management for AI glasses is essentially a matter of balancing system performance and wearer comfort within a shared thermal budget.

Airflow Design for the Miniaturized Structure of Eyewear

To further enhance the thermal management capabilities of AI glasses, relying solely on heat spreading is insufficient; the critical step is to effectively extract heat from the system. This implies that the design of the glasses may need to incorporate active airflow.

Conventional fans are unsuitable for eyewear. They are bulky, noisy, and rely on mechanical components prone to wear over time, making them better suited for larger devices like laptops.

Solid-state micro-cooling technologies—such as those championed by xMEMS—offer a promising new direction. By generating millimeter-scale directional airflow, these systems can deliver precise convective cooling exactly where it is needed most: at the heat sources and along the thermal pathways within the frame.

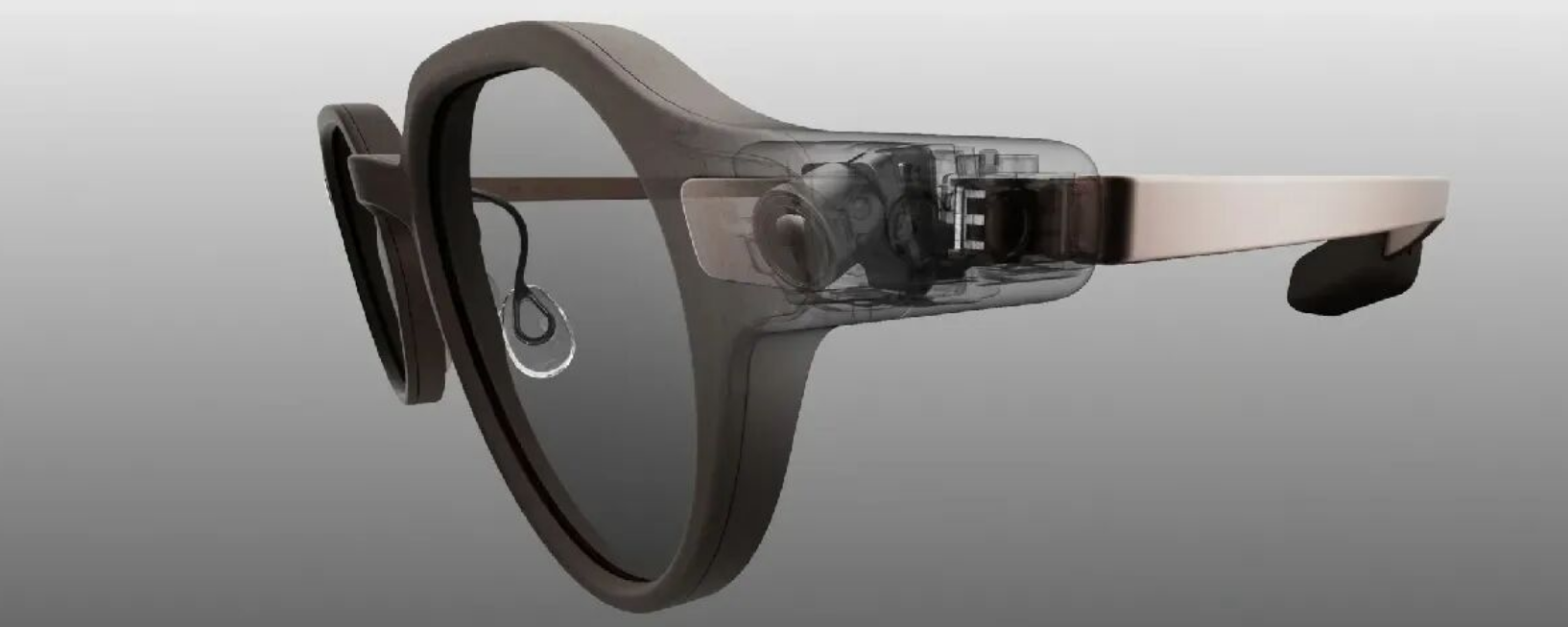

A controlled airflow channel can be integrated into the temple of the glasses. Air enters through a tiny intake, flows over heat-generating components, and is then exhausted from the rear of the frame. This entire airflow process allows for continuous, silent, and precisely controlled cooling.

The key lies in the strategic placement of the airflow. Even a modest volume of air, if directed at the right areas, can significantly lower the temperature of internal components as well as the surface temperature perceived by the user.

Moving from short-duration functionality to continuous, all-day use

Thermal design determines the ultimate real-world experience of AI glasses.

Currently, many functions remain constrained by thermal limitations. For instance, high-resolution video recording, continuous AI processing, and prolonged camera operation often face duration limits or require dynamic clock-speed throttling.

However, as thermal management capabilities improve, these boundaries will gradually be pushed back. Functions previously limited to short bursts of activity will be able to run for longer periods; AI assistants will remain active all day; and real-time processing capabilities will become more stable and predictable.

This aligns with the general trajectory of computing platform evolution: once a physical bottleneck—such as power supply, memory bandwidth, or storage limitations—is overcome, new usage patterns emerge, and the role of the device is redefined.

AI glasses are now approaching this pivotal moment, with thermal management serving as the decisive factor.

Thermal management architecture will become a core competitive advantage for AI glasses

The success of AI glasses hinges on delivering consistent, stable performance while maintaining a comfortable form factor. Achieving this balance relies critically on the thermal management architecture.

As computing density increases and new features are integrated, the heat generated within the device continues to rise. Addressing this challenge requires a multi-faceted approach: utilizing thermally conductive materials to dissipate heat while employing directed airflow to expel it from the system.

Micro-cooling technology complements existing thermal strategies by introducing controllable heat dissipation methods tailored to the compact scale of eyewear. It offers capabilities beyond the reach of passive cooling solutions, enabling the creation of a more balanced and stable thermal management system.

As AI glasses evolve from early-stage products into mass-market devices, thermal design will play a pivotal role in shaping both their performance and wearer comfort.

Source: arinsider
