The Birth of An Optical Lens: From Glass Blank To Coated Finished Product—Why Is It So Expensive?

What processes do the optical lenses we see every day undergo, from initial processing to the final product?

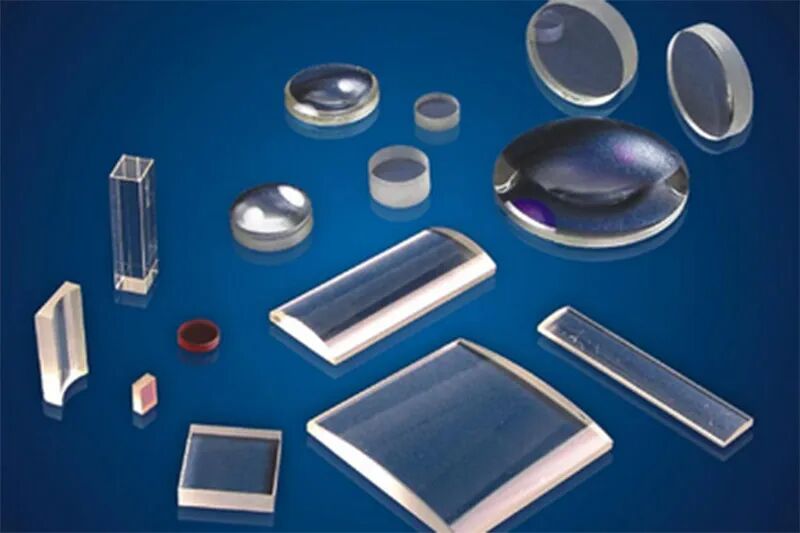

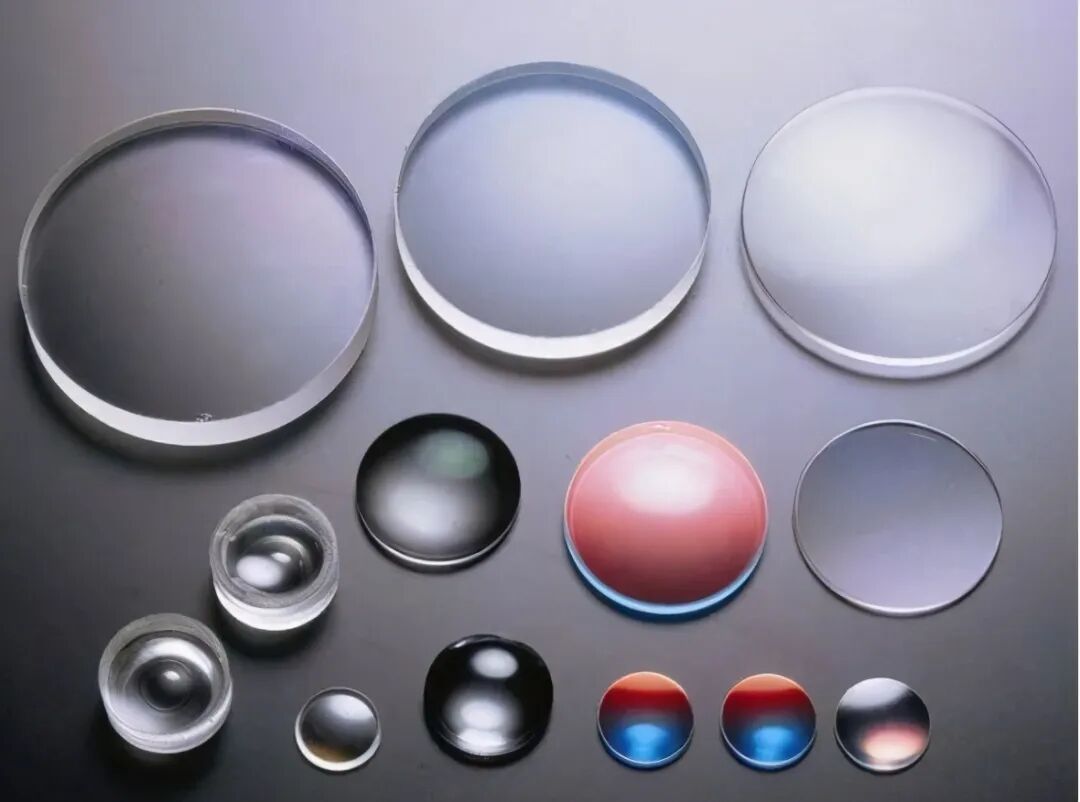

Whether it’s the lens in your smartphone camera, a microscope objective, or a lens inside laser equipment—each one begins as a piece of "glass blank."

To transform an unassuming piece of glass into a qualified lens, it must go through seven stages—cutting, milling/grinding, fine grinding, polishing, edging, cleaning, and coating—along with dozens of inspections.

If any single step fails, the entire lens is scrapped, and all the preceding effort goes to waste.

Today, we’re breaking down the entire cold-processing production line for you to see.

After watching this, you’ll understand why a high-precision lens commands such a high price.

I. Cutting the Material: Drawing Blood with the First Cut

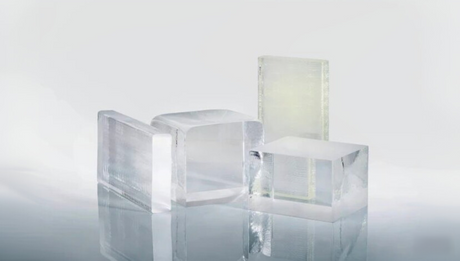

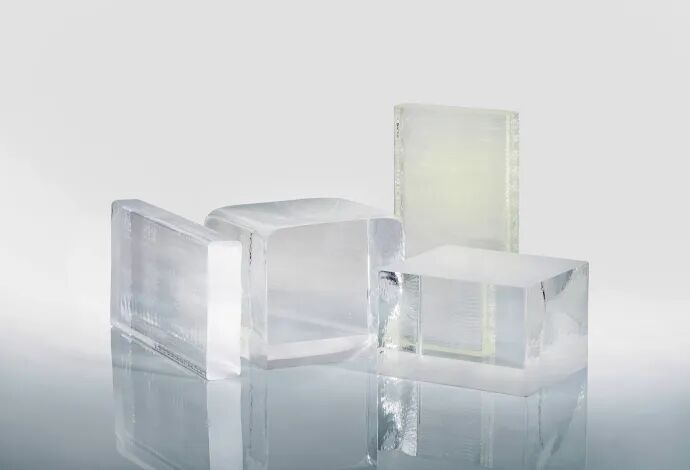

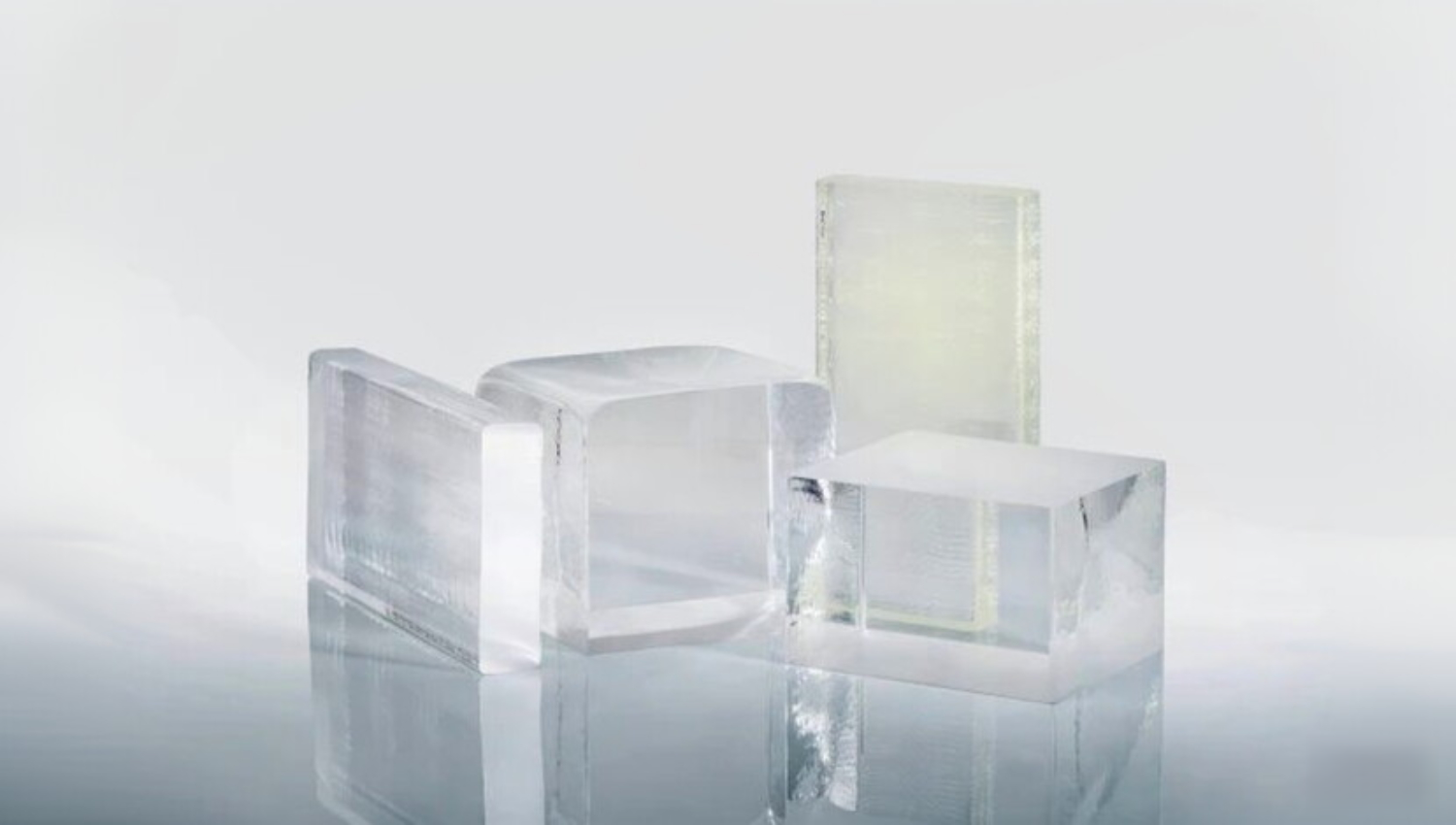

What to do: Cut large pieces of optical glass (blocks or profiles) into blanks that are close to the shape of a lens, leaving room for subsequent processing.

Key equipment: Diamond saw blade cutting machines and CNC profile milling machines (used to directly mill raw stock into complex curved shapes).

Typical defects at this stage: Edge chipping, cracking, and dimensional deviations.

Glass is a classic hard, brittle material; even a slight error in cutting force or feed rate can cause a chunk of the edge to "bite off" or chip—sending the piece straight to the scrap bin.

A bit of trivia: Optical glass is not ordinary glass. There are hundreds of different grades, each varying in refractive index, dispersion, and quality ratings regarding bubbles and striae. Choosing the wrong grade renders all subsequent processing efforts futile.

II. Milling and Grinding: The step involving the greatest amount of material removal

What to do: Grind the blank at high speed with a diamond grinding wheel to create a basic curved surface. This step removes the vast majority of the excess material, with efficiency as the priority.

Key equipment: Milling and grinding machines (diamond cup wheels for spherical milling/grinding; CNC grinding centers for aspherical surfaces).

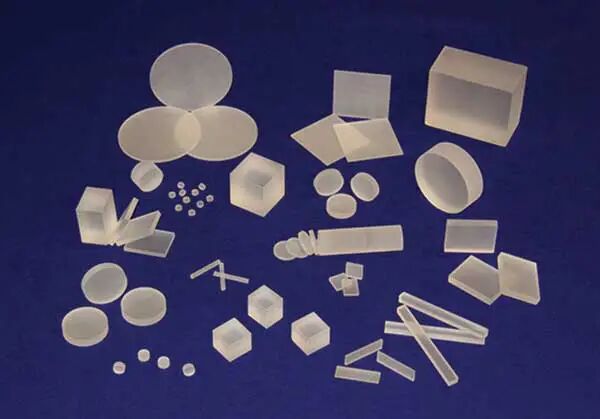

Typical defects: Surface scratches, pinholes, surface figure deviations, and grinding burns. After milling and grinding, the surface remains in a "frosted glass" state, yet the surface profile has already been established—all subsequent processes serve to refine this foundation.

III. Fine Grinding: From "Frosted Glass" to "Semi-transparent"

Purpose: To refine the rough surface left by milling using diamond pellets (or loose abrasives), control the subsurface damage layer, and prepare the surface for polishing.

Key Equipment: Precision grinding machine (utilizing diamond pellets for high-speed precision grinding; parameters such as pressure, rotational speed, and coolant flow are critical).

Typical Defects: Pitting, deep scratches, and residual subsurface damage. The core objective of this step is not merely achieving a "smooth finish," but removing the damage layer left by the previous process without introducing new, deep-seated damage. If residual damage remains, polishing time will double, and the surface figure is prone to collapse.

Industry Jargon: This is known as the "process chain"—the material removal amount in each step must exceed the depth of the damage layer from the preceding step. Trying to save time by skipping steps? Poor yields will teach you a hard lesson.

IV. Polishing: The magic of measuring precision in "light wavelengths"

What it entails: The soul of the entire cold-processing operation.

Using cerium oxide polishing powder and a polishing lap (made of pitch or polyurethane), the semi-transparent surface is ground into a mirror finish, achieving surface figure accuracy at the micron, sub-micron, or even nanometer scale.

Key equipment: Conventional polishing machines (single-sided/double-sided) and high-speed polishing machines; inspection relies on laser interferometers (whereas older processes used optical test plates to observe Newton's rings).

Typical defects:

Out-of-spec surface figure (surface deviation; N and ΔN values exceeding limits)—the most common critical defect

Pits and scratches (surface blemishes; judged against Class B standards)

Edge roll-off or turned-up edges (deformation of the edge profile)

Polishing paste marks (scratches caused by agglomerated polishing powder)

What defines precision?

Standard lenses are λ/4; high-precision lenses are λ/10 or λ/20—where λ represents the 632.8 nm wavelength of a helium-neon laser.

How small is λ/20? One-three-thousandth of the diameter of a human hair.

Achieving this level of precision using pitch and polishing powder...

...is the most romantic craft in the optics industry, spanning over a century.

Fun fact: Cerium oxide polishing powder is a rare-earth product, and its quality directly determines polishing efficiency. In traditional processes, the specific pitch formula and the technique for shaping the lap are closely guarded secrets of master craftsmen; many factories still rely on "feel" and hands-on experience to pass down these skills.

V. Edging: Aligning the optical axis with the geometric axis

Purpose: The optical axis (the central axis of the surface normals) and the geometric axis of a lens often do not coincide; centering and edging are required to align them, grind the outer diameter to the specified dimensions, and simultaneously perform chamfering and edge beveling.

Key Equipment: Centering and edging machine (mechanical centering or optical centering; high-precision components utilize optical centering combined with CCD alignment).

Typical Defects: Excessive decentration (exceeding chamfer/bevel tolerances, leading to image quality degradation after assembly), edge chipping, outer diameter out of tolerance, and defective chamfering/beveling.

A lens with a surface figure of λ/10 becomes a "high-precision reject" if decentration exceeds tolerances upon assembly into the lens system. Edging acts as the "guardian of precision."

VI. Cleaning: An invisible process, yet a visible impact on yield

What is being removed: Polishing paste, asphalt residue, particulates, and oily grime—any residual contamination can cause the coating process to fail completely.

Lenses undergo a multi-stage ultrasonic cleaning process: alkaline degreasing → neutral cleaning → pure water rinsing → IPA dehydration → drying.

Key equipment: Multi-stage ultrasonic cleaning line and a pure water system (producing ultrapure water with a resistivity of 18 MΩ·cm).

Typical defects: Watermarks, white spots, particulate residue, and oil films. When spots are discovered after coating, tracing the root cause often points back to the cleaning stage.

Little-known fact: The most precise processes often involve "invisible effort." The costs of electricity and air filters for Class 1,000 or Class 100 cleanrooms are all factored into the cost of each individual lens.

VII. Coating: The final battle—and a stage where failures frequently occur

Function: Depositing multilayer thin films (such as TiO₂, SiO₂, Ta₂O₅, MgF₂) onto lens surfaces in a vacuum environment to achieve functions such as anti-reflection, high reflection, beam splitting, and filtering.

That blue-purple sheen seen on smartphone camera lenses comes from an anti-reflective coating designed for the visible light spectrum.

Key equipment: Vacuum coating machines (using methods like resistive evaporation, electron-beam evaporation with Ion-Assisted Deposition [IAD], or—for high-end applications—magnetron sputtering and Atomic Layer Deposition [ALD]).

A single high-end imported coating machine starts at several million yuan.

Typical defects: Uneven coating color (color difference between the center and edges due to poor control of the packing density/aggregation coefficient);

Spots and pits (caused by particles "pushing up" from beneath the coating layer); and coating delamination or poor adhesion (failure to pass the cross-hatch adhesion test).

Deviations in coating layer monitoring and wavelength drift.

A fun fact: The vacuum level inside the coating chamber must reach the 10⁻⊃3; to 10⁻⁴ Pa range—an environment approaching that of outer space—simply to ensure the evaporated coating molecules travel in a straight line to the lens surface.

Each coating layer is only tens to hundreds of nanometers thick; building them up layer by layer relies entirely on real-time monitoring via crystal oscillation or optical systems.

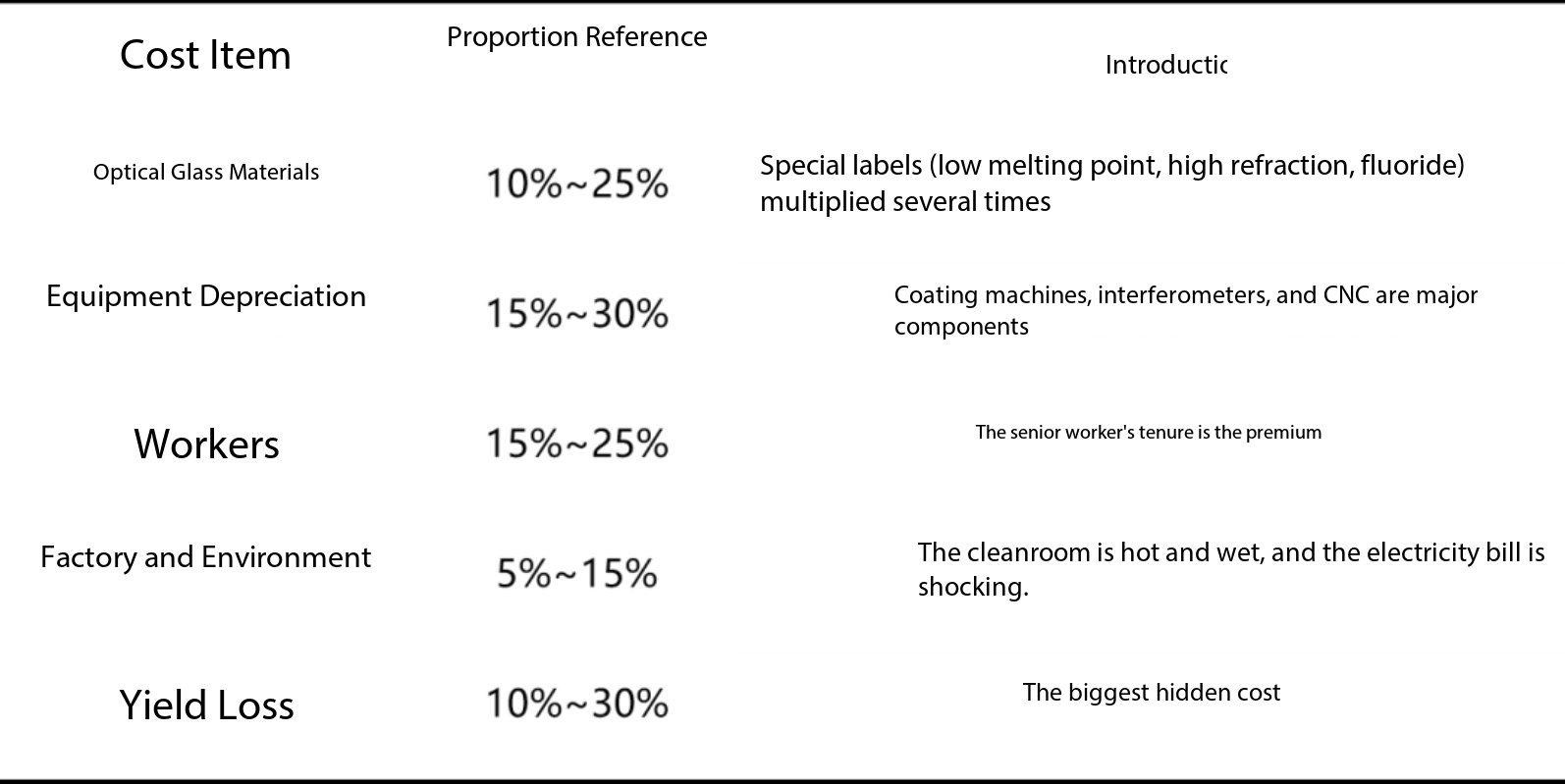

Let’s focus on the last point: while book costs are visible, yield losses are the black hole that devours profits.

Scrapping a single piece during polishing means all the money spent on earlier stages—material cutting, milling, and fine grinding—becomes a sunk cost; scrapping one during coating effectively incinerates the costs of the preceding six processes in a single stroke.

Therefore, the true core competitiveness of an optical manufacturer lies not in the cost of its equipment, but in process control and the speed at which it can ramp up yields.

Here are a few lesser-known facts about the industry:

From raw blank to final shipment, a single lens undergoes dozens of inspections—covering surface profile, defects, dimensions, centration, and coating—with every stage requiring rigorous verification.

In this context, "aperture" (or "ring") does not refer to a ring of light; it is industry jargon for surface profile accuracy. The term originates from the Newton's ring interference patterns observed against an optical test plate, where veteran craftsmen can detect sub-micron errors simply by counting the rings with the naked eye.

Optical cold processing represents the pinnacle of "subtractive manufacturing"—carving nanometer-level precision out of a block of glass. While this approach is the exact opposite of the photolithography process used for chips, it remains the most cost-effective solution for many applications.

Summary

The birth of a lens is the result of a collaboration between glass, machinery, manufacturing processes, and people.

It involves seven interconnected stages; a compromise at any single step will inevitably reveal itself in the final image quality.

The true value of an optical lens lies not in the raw material, but in the cumulative precision of these seven linked processes—yield rate is the genuine "moat" of optical manufacturing.

The next time you hold a lens and view it against the light, take a closer look: within that perfect curvature lie a century of accumulated craftsmanship and the dedication of an entire production line.
