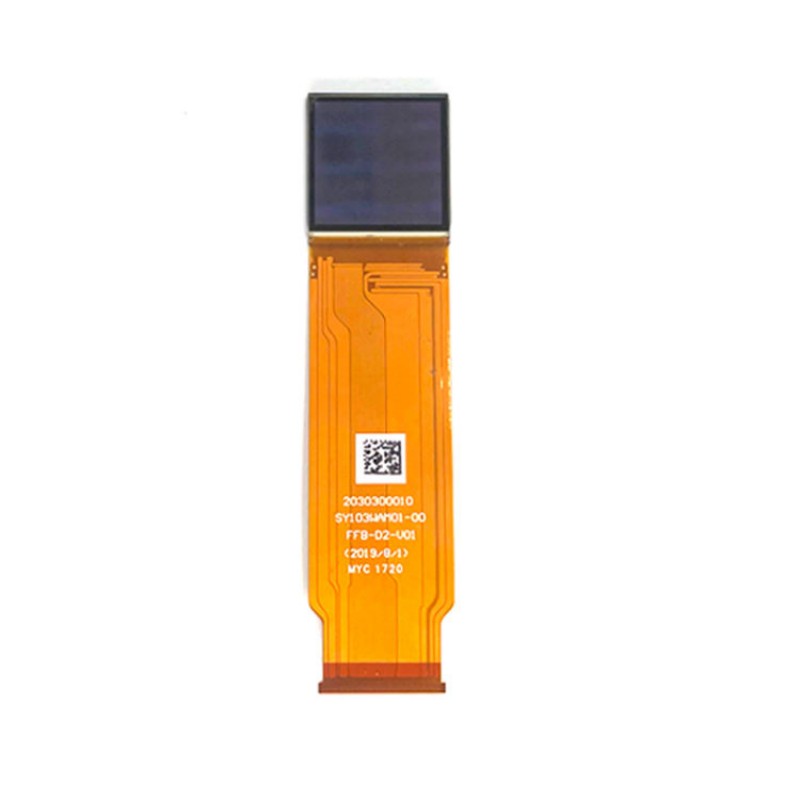

High Luminance 1.03 Inch Micro OLED Display

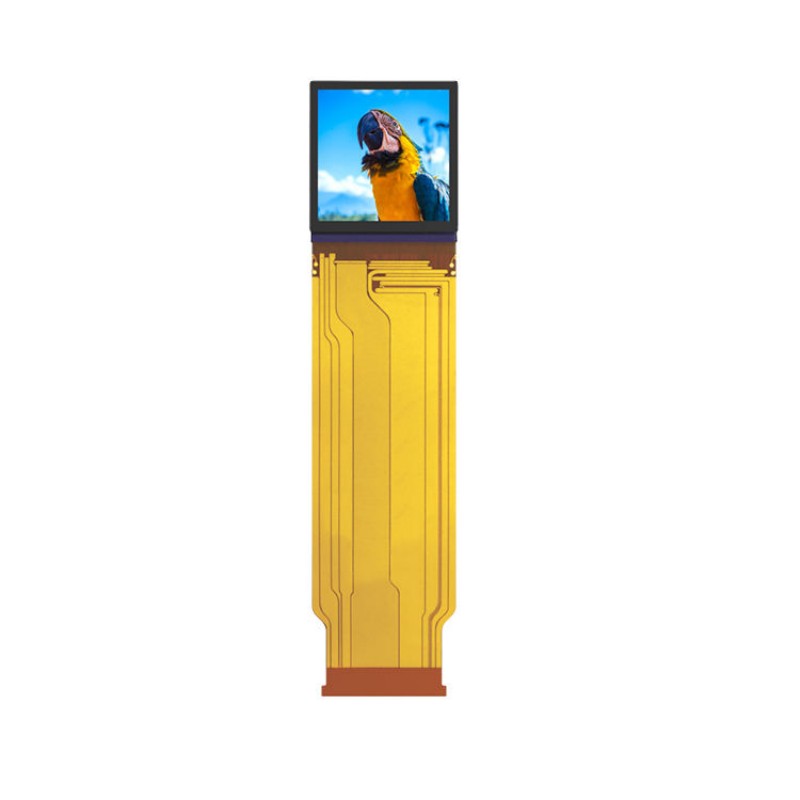

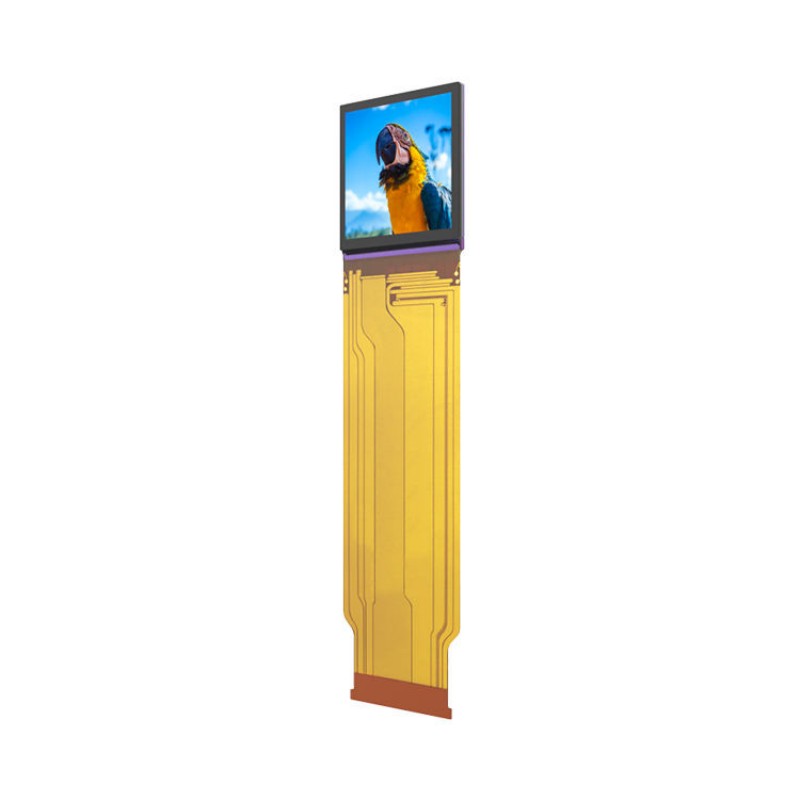

This display is a 1.03inch diagonal, 2560(RGB) × 2560 dots active-matrix color OLED module, based on single-crystal silicon backplate. This module integrates display driver and pixel driver circuit, and realizes small size, light weight, low power consumption and high resolution.
-
OL103
-
High-Definition display
| Size: | |
|---|---|
| Quantity: | |
This 1.03-Inch High Brightness Micro OLED Display (Model: B05B04) is a cutting-edge Optical Display Module engineered for the next generation of professional-grade AR/VR HMDs, industrial inspection tools, and military sighting systems. Leveraging a single-crystal silicon backplate, this module integrates the display and pixel driver circuits to achieve an unprecedented combination of 2560 x 2560 real RGB resolution, compact size, lightweight design, and exceptional energy efficiency. It directly addresses the B2B demand for a high pixel density display that delivers immersive, lifelike visuals without the typical trade-offs in power or form factor.
Micro OLED Work Principle and Architecture
The module is based on an Active Matrix Color OLED on a single-crystal silicon backplate, a core technology known as Micro-display or OLED on Silicon. This architecture allows for integrating the pixel-addressing transistors and the display/pixel driver circuits directly onto the silicon substrate. Key features include:
Integrated Drivers: On-chip integration of drivers minimizes external components, reducing PCB size and power draw.
VESA-DSC v1.1 Decoding: Supports high-efficiency data transfer by compressing the video stream (3x compression ratio) without visually significant loss, which is essential for transmitting the 2560 × 2560 data at high frame rates over the MIPI interface.
Scaling Support: Includes in-chip scaling up (e.g., 1920 × 1920 to 2560 × 2560) to optimize input data processing and display performance.
Customization Services and Quality Assurance
As a trusted B2B supplier of Optical Display Module technology, we understand the need for specialized solutions.
Customization: We offer tailored services including specific FPC modifications, customized Interface Protocol adjustments, and specialized thermal management solutions to meet unique project requirements.
Quality & Certifications: Our manufacturing processes adhere strictly to international standards, including ISO quality management systems, ensuring reliable product quality and consistency. All modules are designed to meet relevant environmental directives like RoHS.
Reliability: Tested for wide-ranging operation and storage temperatures (Operating: -20℃ to +70℃) to guarantee long-term performance in demanding environments.
Ready to Enhance Your Optical System?
Request a Quote today to learn how this ultra-high resolution, High Luminance Micro OLED Display can accelerate your product development. Our technical team is ready to discuss your custom project needs and provide expert guidance on integration.
