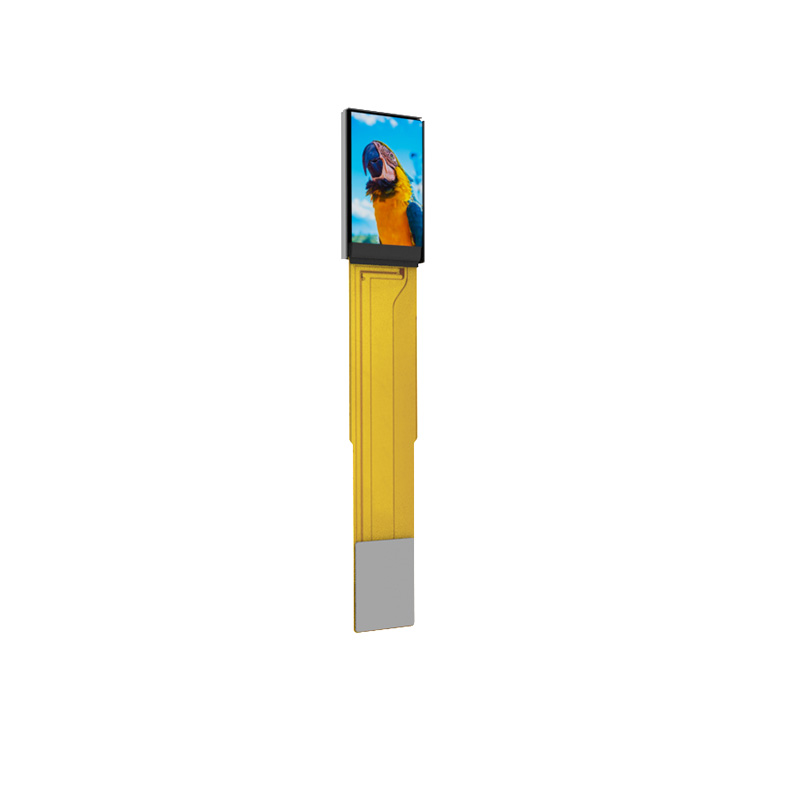

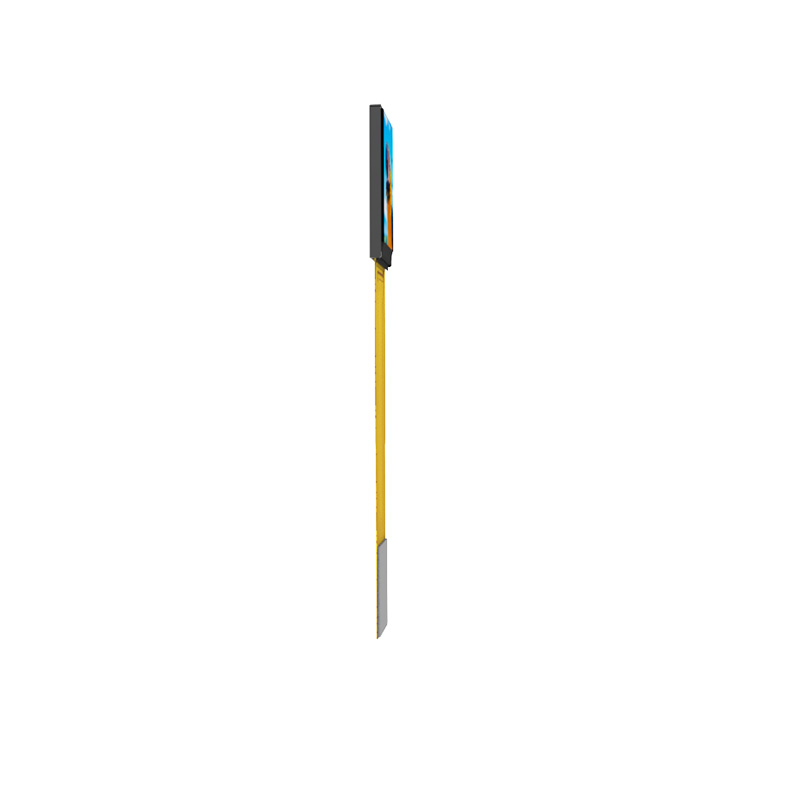

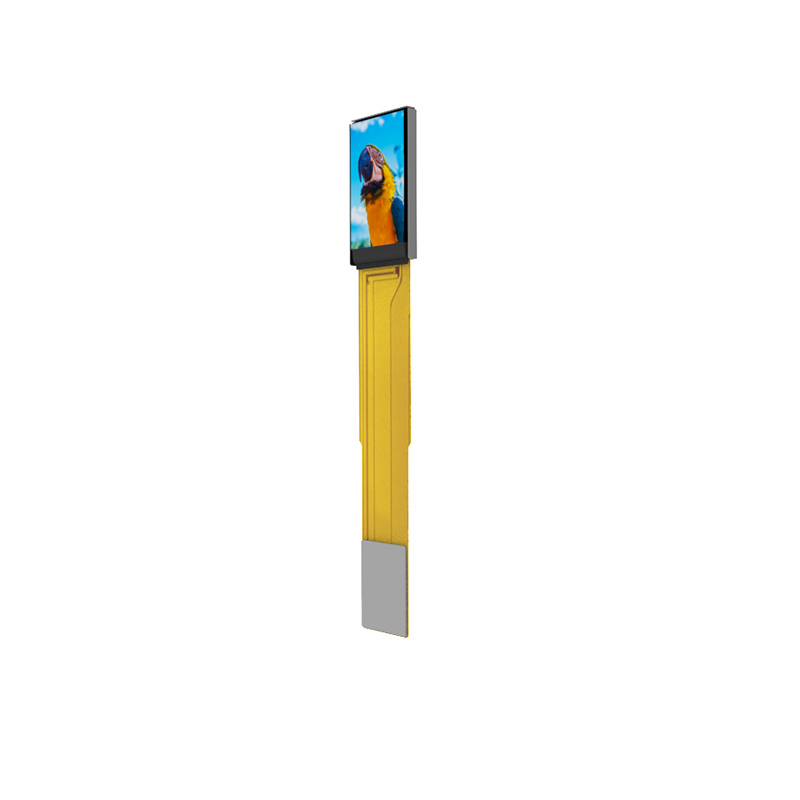

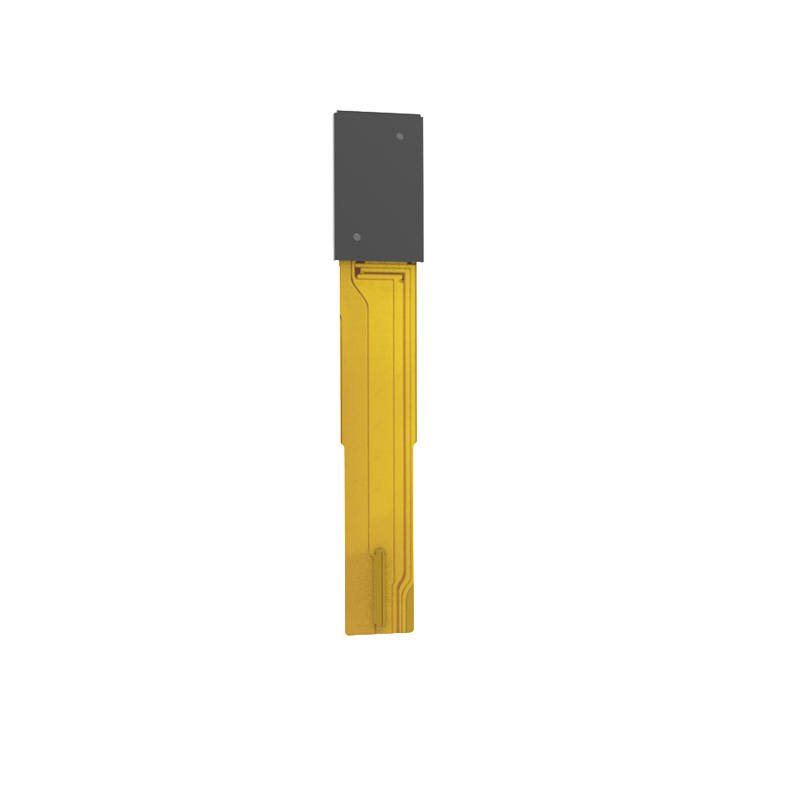

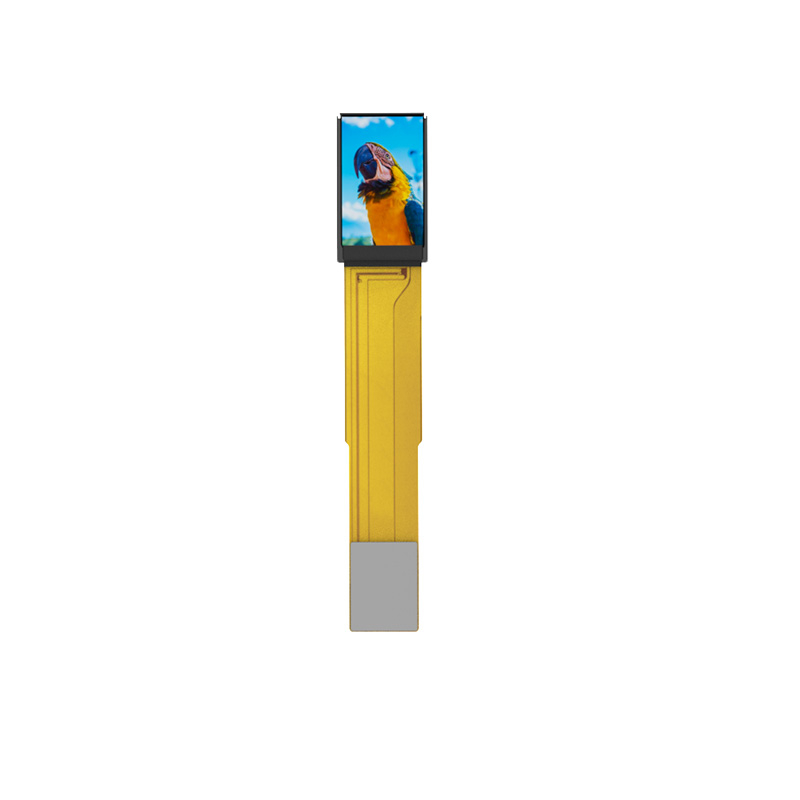

High Luminance 0.60 Inch Micro OLED Display
-
OL060
-
High-Definition display
| Size: | |
|---|---|
| Quantity: | |
The OL060 is a cutting-edge High Brightness OLED Display designed for applications demanding exceptional image quality in a minimal footprint. This 0.60-inch diagonal, active-matrix color OLED panel module leverages advanced single-crystal silicon transistor technology to deliver a true Full HD (1920x1080) resolution. It is the ideal Optical Display Module for next-generation AR/VR Head-Mounted Devices (HMDs), professional viewing equipment, and high-precision instruments where size, clarity, and low power consumption are paramount.
Core Technology & Display Architecture
Single-Crystal Silicon Backplane for Micro-LED Grade Performance
The OL060 utilizes an advanced backplane manufactured with single-crystal silicon transistors rather than traditional amorphous or poly-silicon. This superior foundation enables the integration of complex, high-performance pixel circuits and the entire display driving circuit (Source/Gate Driver, timing controller) directly on the chip.
This architecture results in:
Ultimate Miniaturization: Extremely small module size for easy integration into compact AR/VR HMD optics.
High Electron Mobility: High current drive capability required for achieving the massive 3000 nits Luminance.
Low Power Design: Optimized circuit architecture minimizes power draw while maintaining peak brightness.
Enhanced Functionality: Integration of features like VESA-DSC and scaling/color management directly on the module.
Customization Services and Quality Assurance
As your trusted Optical Display Module supplier, we understand the B2B need for tailored solutions and guaranteed reliability.
Bespoke Customization
We offer robust customization services to ensure the OL060 perfectly fits your project requirements:
Firmware/Software Adjustments: Fine-tuning of gamma correction, scaling parameters, and unique timing control.
Mechanical & Optical Integration: Assistance with FPC design, cover glass integration, and module bonding to your optical train.
Interface Optimization: Configuration support for the MIPI DPHY and I2C control protocols.
Commitment to Quality & Compliance
All our display modules, including the OL060 High Brightness Micro OLED Display, adhere to stringent quality control standards.
Reliability Testing: Modules undergo rigorous thermal, vibration, and drop testing to ensure reliability in challenging operating environments (-20℃ to +70℃).
Global Certifications: Our manufacturing processes comply with international standards such as ISO 9001. Products are built to meet relevant environmental and safety directives (RoHS, CE).
Ready to Integrate the Future of Near-Eye Displays?
The OL060 High Brightness Micro OLED Display is the solution for your next high-performance visual product.
Contact Our Sales Team Today to discuss your specific integration needs or learn more about our customization capabilities.
