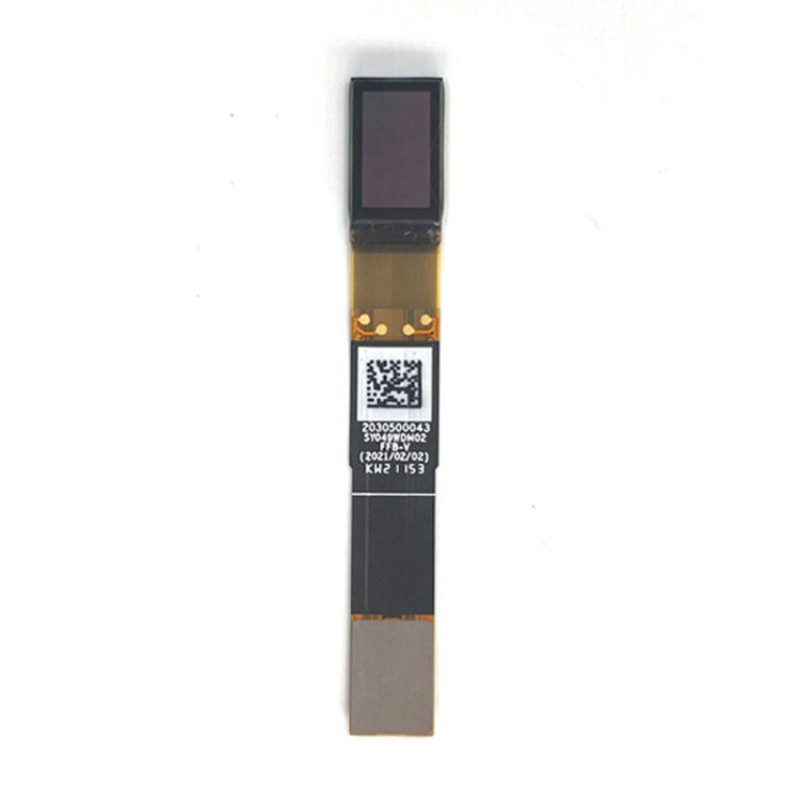

High Luminance 0.49 Inch Micro OLED Display

Model:
OL049
Weight:
< 20g
Camera:
No
Display:
High-Definition display
Speaker:
No
Battery Life:
No Battery
Microphone:
No
AI Features:
No
Connectivity Type:
External Module
Prescription Support:
Not Supported

Quantity:
Size:	0.49 inch
Availability:





Inquire Add to Basket

Product Overview

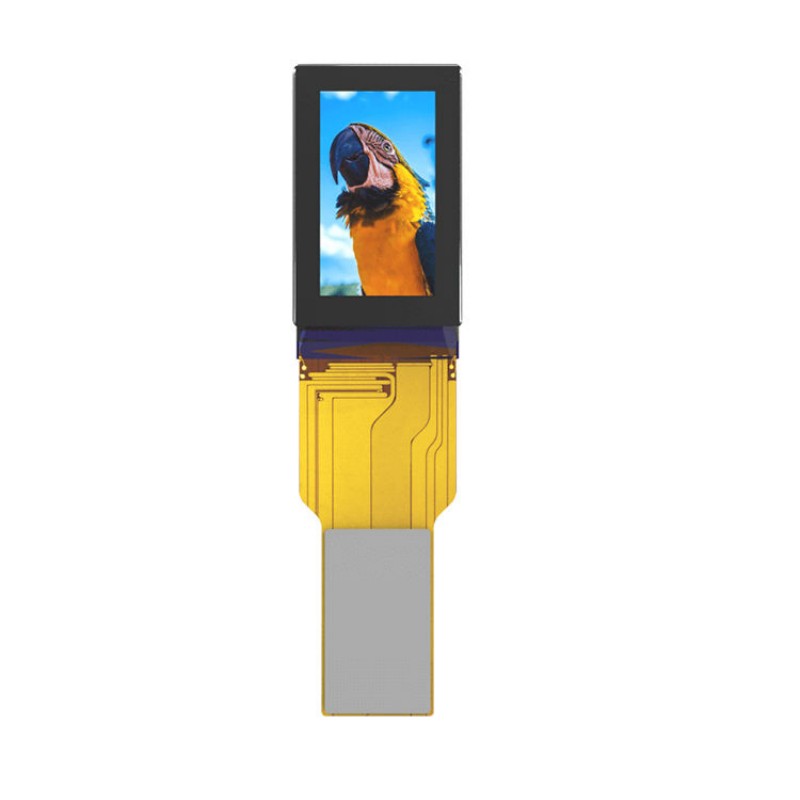

OL049 is a compact 0.49-inch Micro-OLED display module designed for near-eye display applications where size, weight, and image detail are important. It provides a 1920×1080 resolution and supports 60–90 Hz operation for compatible AR/VR and other compact optical systems. With its compact form factor and external-module design, OL049 can be evaluated for AR/VR headsets, electronic viewfinders, industrial inspection devices, and other near-eye display systems. Final suitability depends on the host interface, optical architecture, mechanical design, power requirements, and thermal conditions of the target device.

Product Architecture: Silicon-Based Micro OLED Technology

Our OL049 Micro-OLED display is a testament to advanced microdisplay technology, leveraging the benefits of single-crystal silicon backplanes.

The Power of Micro OLED

Unlike traditional OLEDs on glass, Micro OLED (often called OLED-on-Silicon) utilizes a high-density, integrated silicon chip as the backplane. This architecture allows the integration of panel driver and logic circuits directly onto the same chip, minimizing size and maximizing pixel density. This results in superior uniformity, higher fill factor, and the ultra-low power consumption required for battery-operated wearable devices.

Customization Services and Quality Assurance

As a trusted B2B partner, we recognize the need for tailored solutions and guaranteed reliability.

Customization Capabilities: We offer comprehensive support for minor and major customization, including adjustments to firmware, specific color temperature calibrations, interface modifications, and specialized module integration support to perfectly fit your device's requirements.
Quality and Certifications: Our manufacturing processes adhere strictly to international standards, including ISO 9001 and compliance with RoHS directives. Every OL049 Micro OLED Display undergoes rigorous quality control, including a 100% visual and functional check, and temperature cycle testing to ensure long-term stability.

Get Started: Request Specifications and Quote

Elevate your next-generation optical product with the OL049 High Brightness Micro OLED Display.

Request Quote: Click here to receive a competitive price quotation for bulk orders.

Contact Customization Team: Discuss your unique integration challenges and custom module requirements.

0.49 Inch Micro OLED Display (6)

General Feature

Parameter	Specification
Resolution	1920(H)* 1080(V)
Number of dots	192010802(2/3 SPR)
Pixel Size	5.616um* 5.616um
Active Area	10.783mm * 6.065mm/0.49" diagonal
Luminance	1800cd/㎡ typical
Contrast Ratio	50000:1
Uniformity	>85%
Operating Voltage	AVDD:5.3v~5.5v AVEE:-4~5.5V VDDI: 1.65~1.95v
Power Consumption (3 power mode,90hz,1800nits,VESA on,Rolling mode)	468mW
Gray Levels	256 or 1024
Interface	MIPI
Frame Rate	60Hz~90Hz
Weight	~1g
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +80°C

Optical

Symbol	Parameter	Min.	TyP.	Max.	Unit
Brightness	Tpanel = 20°C ~50°C	1350	1800	2250	cd/m2
CR	White to Black Contrast Ratio	20000:1	50000:1	-	-
Uniformity	9 points uniformity	85	-	-	%
Red Chromaticity	CIE193 1-x	0.625	0.655	0.685	-
Red Chromaticity	CIE1931-Y	0.300	0.330	0.360
Green Chromaticity	CIE193 1-x	0.210	0.245	0.280
Green Chromaticity	CIE1931-Y	0.650	0.680	0.710
Blue Chromaticity	CIE193 1-x	0.120	0.150	0.180
Blue Chromaticity	CIE1931-Y	0.025	0.055	0.085
White chromaticity	CIE193 1-x	0.298	0.313	0.328
White chromaticity	CIE1931-Y	0.314	0.329	0.343
Color Gamut	DC1-P3	80%	90%	-	-
View angle	White luminance decay to 50%	35°	-	-	-
Frame rate	-	60	-	90	HZ
Power consumption	90hz,1800nits,VESA DSC on,Full white, No scaling	-	468	515	mW

Note1:If there is no specified, the specification of optical is specified at 30 degree Celsius.

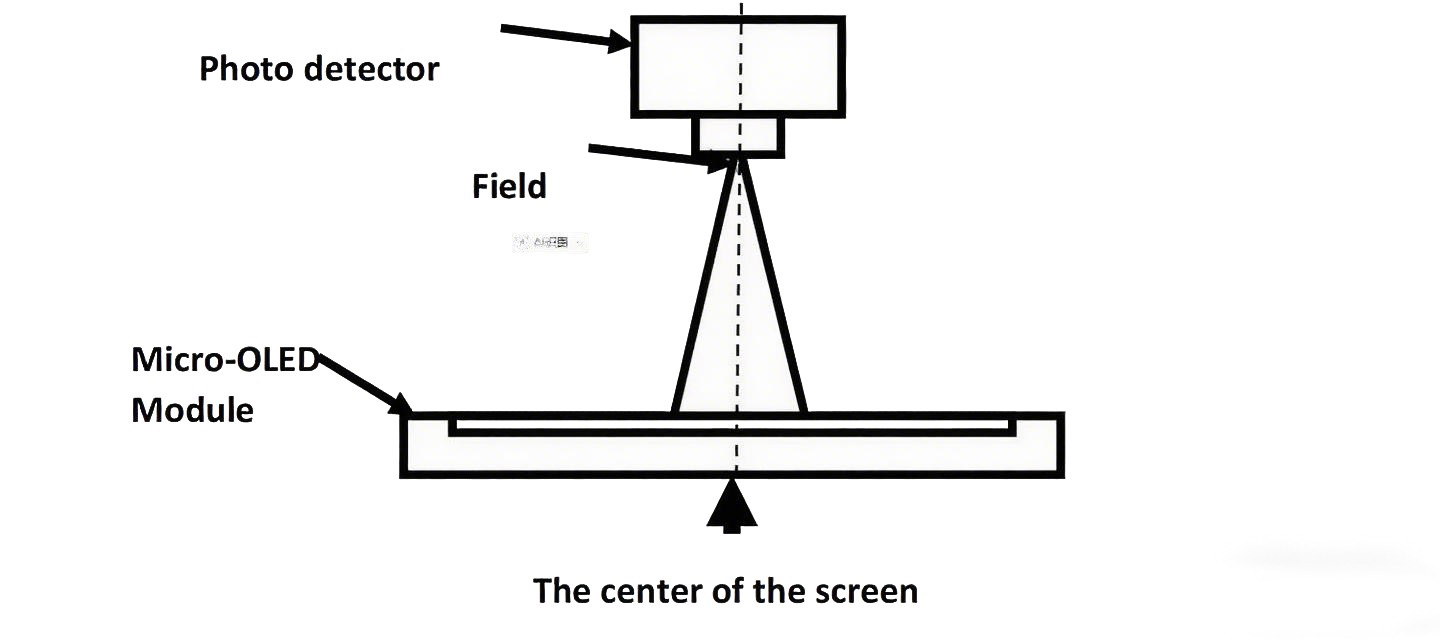

Note2:Definition of optical measurement system.

The optical characteristics should be measured in dark room. Brightness is measured as peak luminance at full white

pattern(Gray level=255)；

图片透明底处理

Note3: Definition of Uniformity at highest gray level( 255 or 1023) and 100%duty emission.

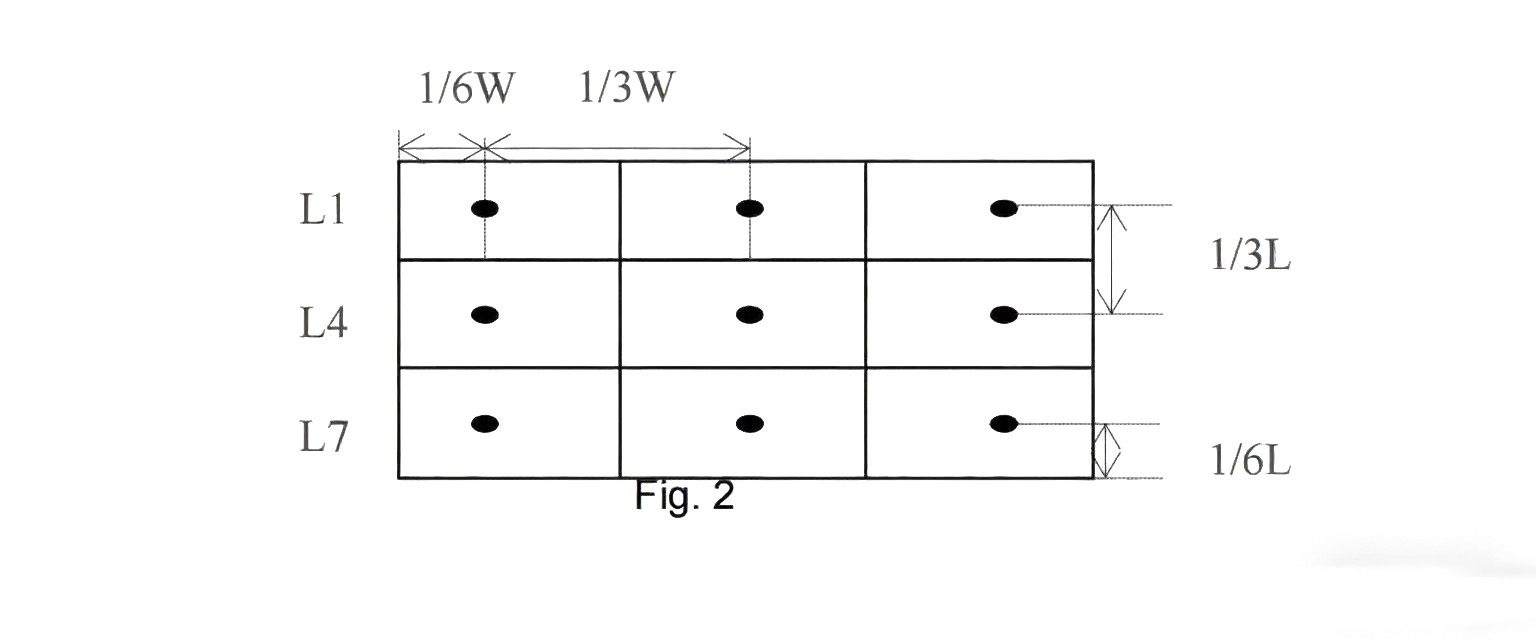

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

Luminance Uniformity (U) = Lmin/ Lmax

L-------Active area length; W----- Active area width

Lmax: The measured maximum luminance of all measurement position.

Lmin: The measured minimum luminance of all measurement position.

图片透明底处理 (1)

SPECIFICATIONS
Resolution	1920*1080
Display Ratio	1609
Pixel Size	5.6um
Active Area	10.783*6.065mm
Contrast Ratio	50,000:ITyp
Luminance	1800cd/m²typ
Powder Consumption@100%duty.1800nits	468mw@VESA DSC,Rolling.4power
Color Gamut	>90%DCI-P3
Interface	MIPI(1 port D-PHY).VESA DSC3:1
Frame Rate	60~90Hz

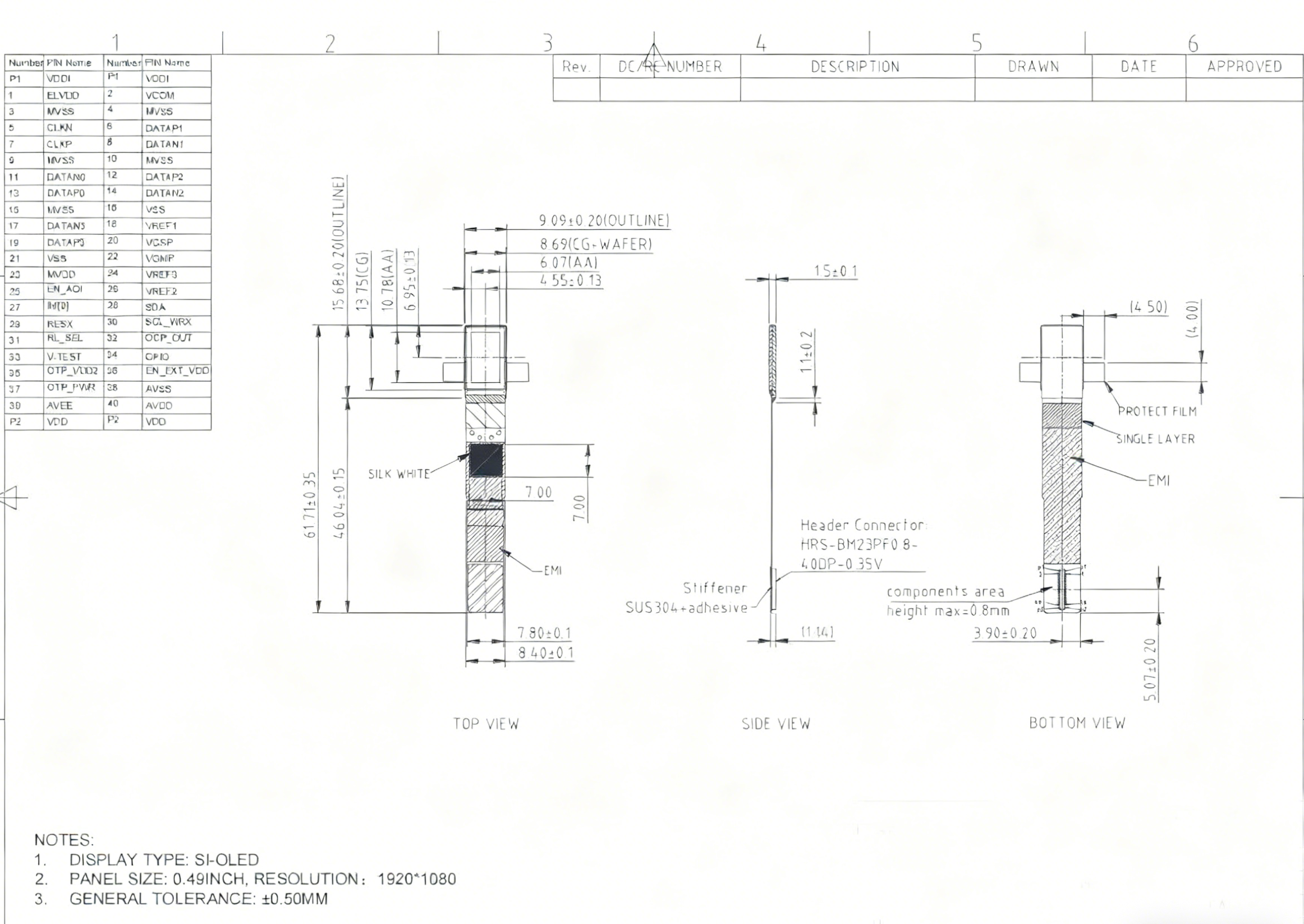

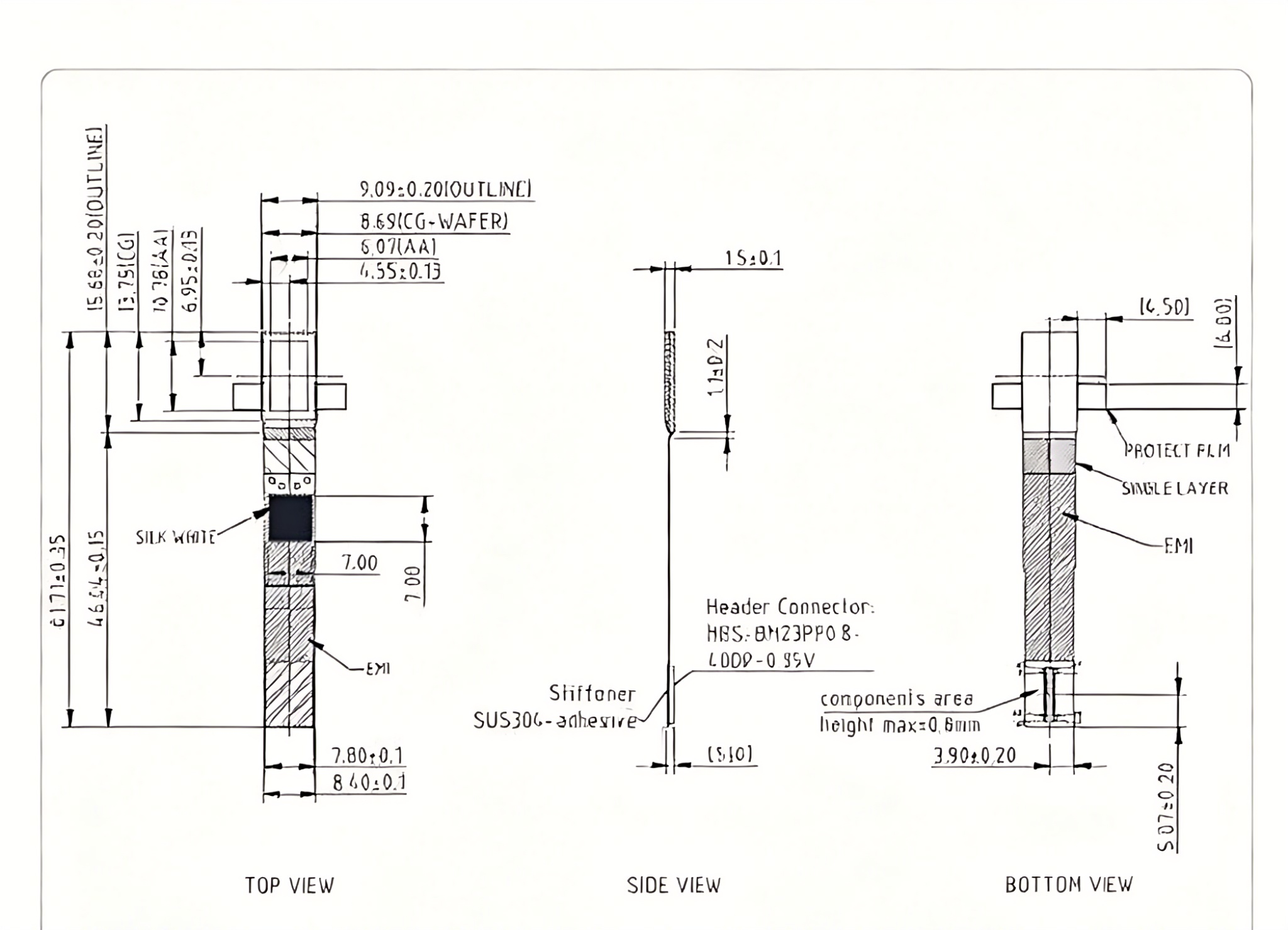

PRODUCT STRUCTURE Module Drawing

What is the OL049 0.49-inch Micro-OLED display module?

OL049 is a compact 0.49-inch Micro-OLED display module for near-eye display applications. It can be evaluated for compatible AR/VR headsets, electronic viewfinders, industrial inspection devices, and other compact optical systems.

What resolution does the OL049 display support?

The OL049 reference specification lists a 1920×1080 resolution. The final image performance depends on the complete optical system, host hardware, and display configuration.

What is the typical luminance of the OL049 Micro-OLED display?

The typical luminance is listed as 1800 cd/m². The maximum value is listed as up to 2250 cd/m² under the specified optical measurement conditions.

What frame rate does the OL049 support?

OL049 supports a 60–90 Hz frame-rate range. The actual operating frame rate depends on the host system, interface configuration, and selected display mode.

What interface does the OL049 use?

The OL049 uses a MIPI interface. Customers should verify MIPI compatibility, lane configuration, timing, and host-side requirements during the integration stage.

How much does the OL049 display module weigh?

The top-level product information lists the OL049 weight as less than 20 g. The final system weight will depend on the optical engine, housing, cable, and other integrated components.

Does the OL049 include a battery, camera, speaker, or microphone?

According to the top-level product information, the OL049 has no camera, speaker, battery, or microphone. It is listed as an external display module that needs to be integrated into a compatible host system.

What applications can use the OL049 Micro-OLED module?

The OL049 can be evaluated for AR/VR headsets, near-eye display systems, electronic viewfinders, industrial inspection equipment, and other compact optical devices. Final suitability should be confirmed according to the application’s optical, mechanical, electrical, and thermal requirements.

Can the OL049 be customized?

Project-specific integration requirements can be discussed with Sotech. The available customization scope depends on the target product, interface requirements, optical design, mechanical constraints, and production plan.
