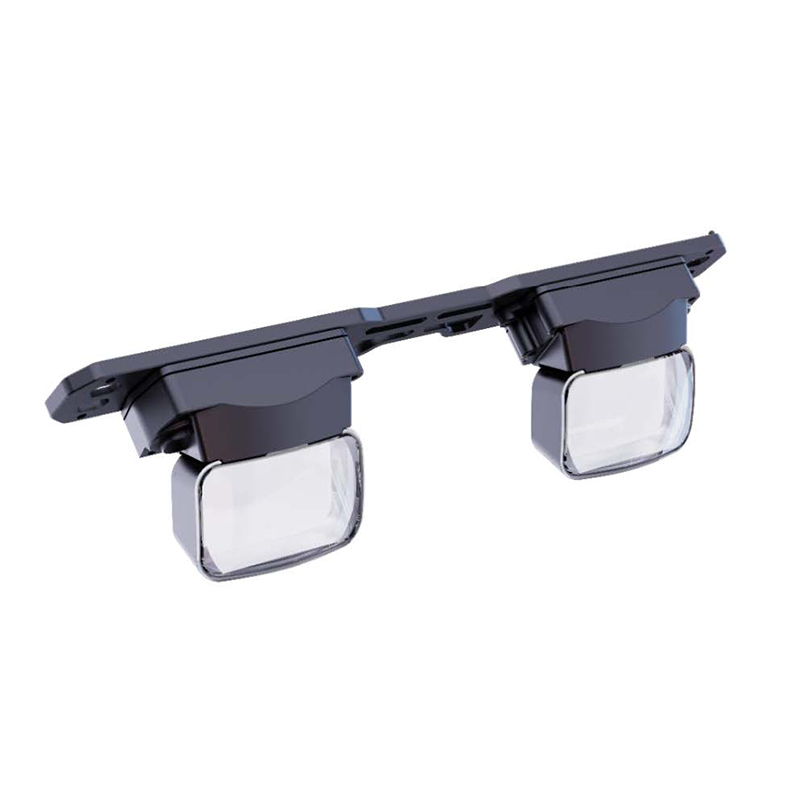

High Brightness 0.49 Inch Bicritical Propagation Optical Display Module for AR/VR Headsets
Developed by SOTECH's XR Division, the BP049 Optical Module is a premium consumer-grade solution designed to enable lightweight, sunglasses-style AR glasses with an immersive “portable large screen” experience. Engineered for versatility, this ultra-thin module features adjustable diopters ranging from -0.5D to -5.2D, ensuring clear vision for a wide variety of users without the need for additional corrective lenses.
At the core of the BP049 module is a 0.49-inch Micro-OLED display delivering stunning 1920×1080 Full HD resolution at a 16:9 aspect ratio. It provides exceptional visual fidelity with up to 3000 nits of brightness, a 50000:1 contrast ratio, and a wide 47° Field of View (FOV). Despite weighing only about 1g per screen, it maintains high optical performance with TV distortion under 1% and an MTF of >0.2 at 30 lp/mm. Operating efficiently between 936mW and 960mW, the module supports 60Hz to 90Hz frame rates via a MIPI interface, making it ideal for high-quality video streaming, entertainment, and mobile office applications.
Key Specifications
•Display: 0.49” Micro-OLED, 1920×1080 (16:9), 60Hz–90Hz
•Optical Performance: 47° FOV, 2m Virtual Image Distance, <1% TV Distortion
•Brightness & Contrast: 1800/3000 nits, 50000:1 Contrast Ratio
•Eye Parameters: 10mm×6mm Eye Box, 15.5mm Eye Relief, -0.5D to -5.2D Adjustable Diopter
•Power Consumption: 936mW (1800 nits) / 960mW (3000 nits @ 90Hz)
•Physical: ~1g per screen, Ultra-thin structure
•Operating Temperature: -20°C to +70°C
At the core of the BP049 module is a 0.49-inch Micro-OLED display delivering stunning 1920×1080 Full HD resolution at a 16:9 aspect ratio. It provides exceptional visual fidelity with up to 3000 nits of brightness, a 50000:1 contrast ratio, and a wide 47° Field of View (FOV). Despite weighing only about 1g per screen, it maintains high optical performance with TV distortion under 1% and an MTF of >0.2 at 30 lp/mm. Operating efficiently between 936mW and 960mW, the module supports 60Hz to 90Hz frame rates via a MIPI interface, making it ideal for high-quality video streaming, entertainment, and mobile office applications.
Key Specifications
•Display: 0.49” Micro-OLED, 1920×1080 (16:9), 60Hz–90Hz
•Optical Performance: 47° FOV, 2m Virtual Image Distance, <1% TV Distortion
•Brightness & Contrast: 1800/3000 nits, 50000:1 Contrast Ratio
•Eye Parameters: 10mm×6mm Eye Box, 15.5mm Eye Relief, -0.5D to -5.2D Adjustable Diopter
•Power Consumption: 936mW (1800 nits) / 960mW (3000 nits @ 90Hz)
•Physical: ~1g per screen, Ultra-thin structure
•Operating Temperature: -20°C to +70°C
-
BP049
-
< 20g
-
No
-
High-Definition display
-
No
-
No Battery
-
No
-
No
-
External Module
-
Not Supported
| Quantity: | |
|---|---|
The Next-Generation Optical Engine for Lightweight AR
The BP049 is an advanced upgrade to our optical module lineup, representing the next generation of see-through near-eye display technology. It ingeniously integrates two high-brightness 0.6-inch silicon-based OLED displays with precision, all-plastic optical lenses, and a stable mechanical structure.
Engineered for superior visual immersion and user comfort, the BP049 serves as the ideal core optical engine for a new class of lightweight, high-performance Augmented Reality (AR) glasses and Virtual Reality (VR) HMDs. This module specifically addresses the B2B need for a compact solution that delivers an immersive Field of View (FOV) and exceptional image quality, without compromising on wearer comfort or device form factor.
Product Architecture & Core Technology
Birdbath Optical System Explained
The Birdbath optical design is renowned for its ability to deliver a large Field of View and a relatively compact form factor, making it the preferred choice for many consumer and enterprise AR/VR HMDs. The BP049 achieves its performance by utilizing a semi-transparent curved mirror (the birdbath) to reflect the image from the high-resolution Micro-OLED display into the user's eye, while simultaneously allowing the user to see through the mirror into the real world. This clever light path management is key to the BP049's high magnification and wide FOV.
Parameter | Specification |
Display Size | 0.49 inch (x2) |
Monocular Resolution | 1920 × 1080 (SPR) |
Field of View (Diag.) | > 47° |
Magnification | 13.3x |
Eyebox | 10 mm × 6 mm |
Eye Relief | 15.5 mm |
Diopter Adjustment | -5D ~ 0D |
Optical Distortion | < 1% |
Maximum Screen Brightness | 3000 nits |
Customization Services and Quality Assurance
We understand that B2B projects require precision engineering and reliable supply chain partnership.
Customization Capabilities: We offer customization services for the BP049Optical Module, including mechanical integration, interface board design (to support specific Interface Protocols), and optical tuning for specialized use cases (e.g., specific Eye Relief or Diopter ranges).
Quality & Reliability: All modules are manufactured under strict quality control processes. We adhere to international standards, holding certifications such as ISO 9001 for quality management, and ensuring compliance with environmental standards like RoHS and CE. Each unit undergoes rigorous testing for thermal stability, shock resistance, and long-term Luminance performance.
Application Scenarios & Versatility
The BP049 is a versatile display solution designed to be the central component in devices across high-demand professional sectors. This section outlines the key markets where the BP049 OLED display module excels.
Augmented Reality (AR) Smart Glasses: Provides the core visual experience for consumer and prosumer AR glasses, enabling seamless overlay of digital information onto the real world.
Enterprise & Industrial Head-Mounted Displays (HMDs): Ideal for hands-free information display in manufacturing, logistics, remote assistance, and complex assembly, enhancing worker efficiency and safety.
Medical & Surgical Visualization: Used in specialized near-eye display devices for medical imaging and guidance, where high resolution and low distortion are non-negotiable.
Military & Defense Systems: Applicable in tactical wearable computing devices that require robust, high-brightness displays for crucial situational awareness data.
Interactive Information Display Systems: Integrated into drone remote controllers, inspection tools, and other professional equipment requiring a compact, crystal-clear heads-up display.
Request a Quote: Partner with Our Optical Experts Today
Elevate your next-generation AR/VR Headset or Wearable Computing Device with the superior performance of the BP049 0.49 Inch BP Optical Display Module.
Don't compromise on your display engine. Contact our B2B sales and engineering team today to receive a comprehensive specification sheet (Specs Sheet) and discuss your integration requirements.
Click here to request a detailed specifications sheet or a custom project quotation.
