Unlocking the Future of AR: How a Tiny Grating Will Make Your Glasses Disappear

A deep dive into the manufacturing breakthrough—Surface Relief Gratings (SRG)—that promises sleeker, brighter, and affordable AR eyewear.

The dream of augmented reality glasses has long been caught in a paradox. To be truly immersive, they need brilliant, wide-field displays; to be adopted daily, they must be as light and stylish as regular eyeglasses. For years, manufacturers faced a difficult trade-off: uncompromised optical performance or scalable, affordable production? This core challenge has stalled the mainstream arrival of AR.

Today, a groundbreaking collaboration suggests the dilemma may soon be over. By combining innovative nanoscale manufacturing techniques, the Swiss-Japanese partnership of Eulitha and TEL has demonstrated a clear path to producing the heart of next-generation AR optics: the Surface Relief Grating (SRG) waveguide. Let‘s explore why this tiny component is a game-changer and how it’s finally being tamed for mass production.

Part 1: The Magic of SRGs: The Invisible Engine for AR

Forget bulky lenses and complex optical stacks. Imagine a component as thin as a sticker applied to your regular glasses lens, capable of piping full-color digital images directly into your eye while leaving the real world perfectly visible. That‘s the promise of an SRG waveguide.

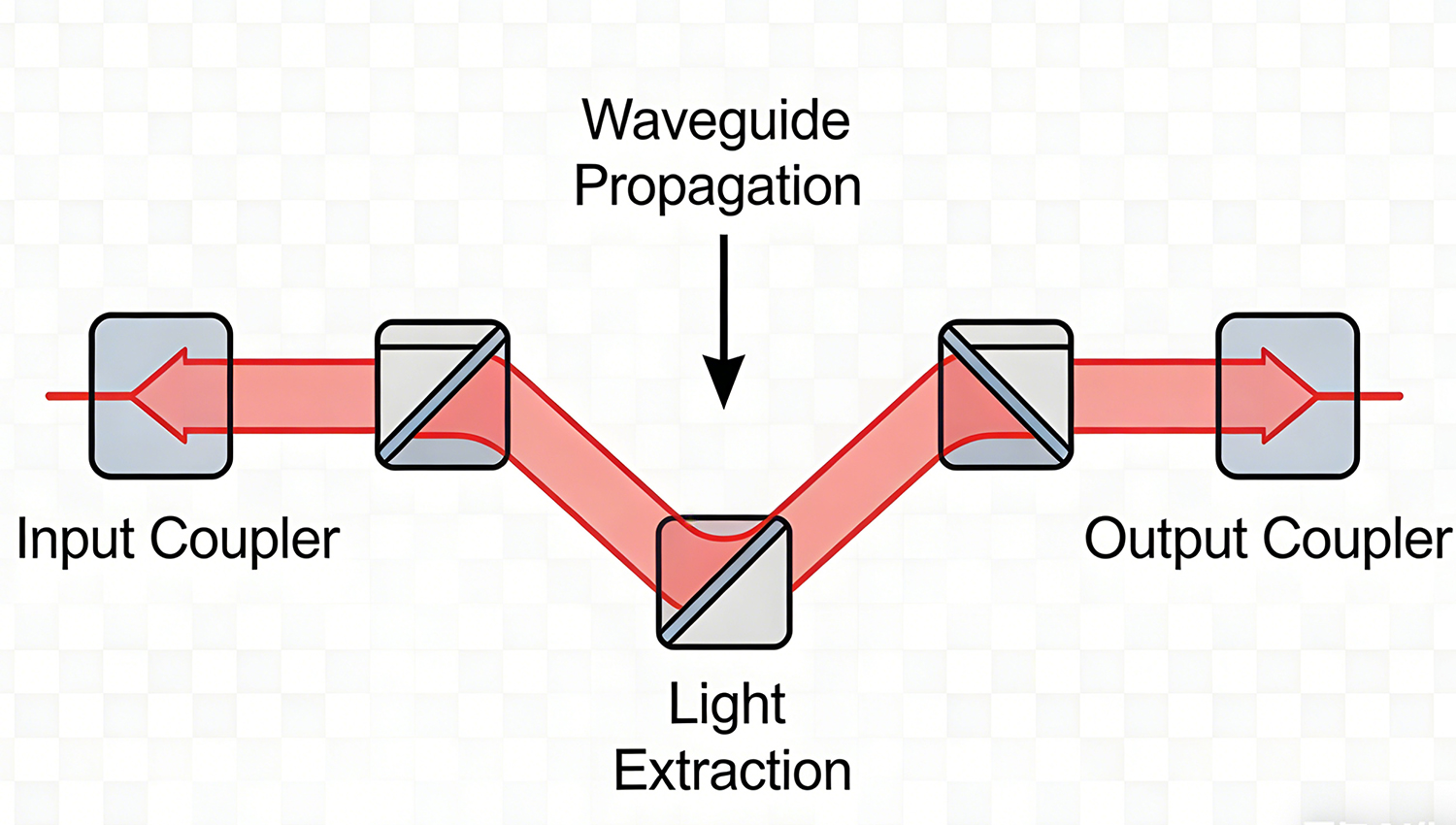

At its core, an SRG is a nanoscale pattern—a series of grooves and ridges smaller than the wavelength of light—etched onto a transparent substrate. This pattern acts as a traffic controller for light:

1. Couples In: It catches light from a tiny micro-display projector at the temple.

2. Guides Along: It traps and channels this light inside the glass lens through total internal reflection, like a fiber-optic cable.

3. Pops Out: Finally, it gently deflects the light outwards in a controlled manner, painting the image onto your retina.

The result? Superior optical performance (wide field of view, high efficiency), an ultra-thin form factor, and excellent design flexibility to manage colors and ambient light. The challenge has never been the theory, but the practice: how do you mass-produce these nanometer-precise structures with perfect consistency without breaking the bank?

Part 2: The Manufacturing Breakthrough: From Lab Curiosity to Fab-Ready

The recent achievement by Eulitha and TEL is significant because it successfully married high precision with scalability. Their process, a symphony of advanced semiconductor techniques, provides a blueprint for the industry:

Design & Simulation: It all starts in the digital realm. Using advanced simulation software, engineers can precisely model how light interacts with different grating shapes, sizes, and materials. This allows them to optimize the design for specific goals—like maximizing brightness or field of view—before any physical manufacturing begins.

The “Nano-Stamping” Revolution – Displaced Talbot Lithography (DTL): This is the star of the show. Traditional high-resolution lithography is slow and costly for large areas. Eulitha‘s DTL technology acts like a high-precision, large-area nano-stamp. It can pattern vast sections of a glass wafer with incredibly fine grating structures in a single exposure, dramatically boosting throughput and cutting cost—a vital step for consumer electronics.

Atomic-Level Perfection – Thin Film Deposition: Before patterning, the glass substrate is coated with an ultra-thin, high-refractive-index film (like titanium dioxide) via Atomic Layer Deposition (ALD). This film is the canvas for the grating. ALD ensures it is perfectly uniform and just the right thickness, which is critical for controlling light diffraction.

Sculpting with Plasma – Precision Dry Etching: The final step transfers the patterned design from the resist “mask” into the functional film. Using a process called Inductively Coupled Plasma (ICP) etching, the material is meticulously carved away with near-atomic precision. This step defines the exact depth, angle, and smoothness of the final grating grooves—parameters that directly determine optical quality.

The key outcome? The team produced high-fidelity SRGs not just on ideal R&D substrates like silicon, but crucially, on high-index glass—the material needed for real-world eyewear. This proves the compatibility of high-volume semiconductor tools with consumer AR optics manufacturing.

Part 3: What This Means for Your Next Pair of AR Glasses

For you, the user, this manufacturing feasibility translates into tangible benefits for future devices:

Form Factor Revolution: AR glasses can finally shed their bulky, “ski-goggle” appearance. SRG waveguides enable optics that are just a few millimeters thick, paving the way for frames that look and feel like your favorite pair of everyday glasses.

Visual Fidelity Leap: Expect brighter, more vibrant virtual images overlaid on your world, with a wider field of view that feels more immersive and natural.

The Path to Affordability: Scalable manufacturing is the direct precursor to lower costs. As techniques like DTL mature, the premium for advanced AR optics will shrink, opening the door to mainstream price points.

Part 4: The Road Ahead & Our Vision at Sotech

Of course, the journey from a successful pilot line to every pair of glasses is not without hurdles. Consistency across millions of units, final cost optimization, and continuous performance tuning remain focal points for the industry. However, the Eulitha-TEL collaboration has provided a critical and validated roadmap.

At Sotech, we are passionately focused on the convergence of intelligent wearability and human-centric design. Breakthroughs in core enabling technologies like SRG waveguides are exactly what we monitor and analyze closely. They directly inform our product philosophy: that advanced technology should be invisible, intuitive, and accessible.

While today's AI Camera Glasses leverage a different set of innovations to deliver hands-free documentation and AI-assisted vision, our vision for the future is shaped by these emerging optical frontiers. We believe the ultimate wearable should augment your life seamlessly—both in intelligence and in perception.

The future of AR is being written at the nanoscale. As these manufacturing puzzles are solved, the line between a “smart device” and “perfect glasses” will finally vanish, unlocking a new era of seamless virtual-real integration. The question is no longer “if,” but “how soon.”
