The Optical Heart of AR Glasses: A Complete Guide To 4 Lens Solutions

When virtual information seamlessly overlays the real world before your eyes, the core engine of this visual revolution isn‘t hidden in a chip, but precisely located in that thin optical lens in front of you.

This lens is the physical convergence point of the optical engine, algorithms, and interaction design. It directly defines the clarity of the virtual image, the see-through transparency of the real world, and the comfort of wear. It is also the “value anchor” of an AR device, with its display module often accounting for 40%-50% of the total unit cost.

Choosing which optical solution fundamentally determines the form factor, experience, and positioning of an AR product. Currently, the four dominant technological paths in the market are clearly distinct, each corresponding to a different future.

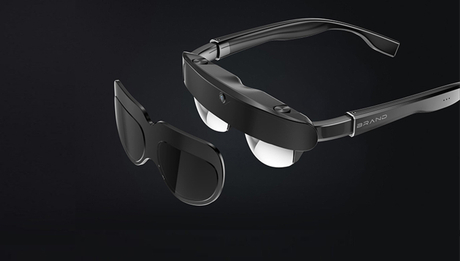

1. Combined Prism (BirdBath): The Cost-Effective Choice for Quality

As the core of the mature and reliable BirdBath solution, it achieves imaging through the collaborative work of a precise optical “team”: light is collimated by a lens, directed and reflected by a beam splitter prism, and finally enters the human eye via a curved reflector, while allowing real-world light to pass through.

Its core advantage lies in excellent visual performance—vibrant colors, high contrast, capable of delivering highly immersive viewing and gaming experiences. The stable supply chain resulting from mature technology makes it the cost-effective choice for scenarios prioritizing high image quality with budget sensitivity. However, the complex optical path design forces compromises in volume and weight, typically resulting in a bulkier device appearance.

Therefore, it perfectly fits scenarios where portability is not a high priority but audiovisual experience is, such as personal large-screen viewing and in-vehicle entertainment systems.

2. Freeform Lens: The Balanced Foundation for Consumer AR

This is currently the most mainstream form in consumer AR glasses. Its core is a meticulously calculated freeform resin lens that can precisely refract and project light from a micro-display located on the upper side into the retina.

Its greatest success lies in achieving a critical balance: its appearance closely resembles everyday glasses, offering lightweight, unnoticeable wear; good light transmission ensures a natural view of the real world; meanwhile, it finds the optimal balance between field of view, image quality, and cost. Although its edge image quality requires algorithmic optimization, this does not prevent it from being the absolute main force driving AR into mass-market daily use.

Currently, it is widely used in mobile office work, information prompts, navigation, and lightweight entertainment, serving as the core technological carrier for the wave of consumer adoption.

3. Array Waveguide: Large-FOV Solution for Professional AR

Aimed at professional fields like industry and healthcare, array waveguide offers a distinctly different approach. It is a flat glass sheet with embedded multilayer mirror arrays inside. Light propagates via total internal reflection and is coupled out in a “relay” fashion by the array structure.

The essence of this technology is “expansion”: it can provide the largest Eyebox among all solutions, meaning users can still see the complete image even when their eyes move, significantly enhancing comfort and information acquisition efficiency during prolonged use. At the same time, its lens offers extremely high light transmittance with a minimalist appearance, akin to ordinary glass. Of course, the complex multilayer lamination process also implies higher manufacturing costs and barriers.

This makes it particularly suitable for scenarios requiring prolonged concentration, where field of view stability and environmental awareness are equally important, such as industrial maintenance, surgical navigation, and security patrols.

4. Diffractive Waveguide: The Benchmark for Future, Thin-Form AR

Representing cutting-edge technology, diffractive waveguide utilizes nanostructured gratings to manipulate light through diffraction effects. This technology is redefining the form factor boundaries of AR glasses.

It achieves an unprecedented breakthrough in form factor: the lens can be made extremely thin and light, like fashionable sunglasses, completely liberating industrial design and giving AR devices genuine potential for fashionable daily wear. It also features a large eyebox and good image uniformity. However, its nanoscale manufacturing process entails extremely high technical barriers and costs, making it a “black technology” currently found only in high-end flagship products.

Therefore, it represents the future direction of industry exploration, primarily applied in high-end Mixed Reality (MR) devices pursuing ultimate thinness and immersion, as well as specific high-end B2B visualization solutions.

Selection Guide: Matching Optical Solutions to Your AR Product Needs

At Sotech, we deeply understand the essence and boundaries of each optical solution. We are committed to providing customers with full-stack optical solutions from concept design to mass production, translating cutting-edge technology into tangible product competitiveness. Because we believe that a perfectly suited lens is precisely the starting point for a great AR experience.
