Photocuring: Unlocking Mass Production of AI/AR Glasses
Views: 0 Author: Site Editor Publish Time: 2026-01-28 Origin: Site
A smart lens that integrates display, light adjustment, and vision correction functions is being precisely “cast” into shape at room temperature by a beam of ultraviolet light—this is no longer just a concept, but an ongoing manufacturing revolution that will determine when we can wear lightweight and reliable AI/AR glasses.
Imagine smart glasses of the future that can display navigation information in real-time and automatically adjust their tint according to light intensity. This seemingly ordinary lens actually requires the precise fusion of a waveguide display layer, a light-adjusting film, and myopia correction capabilities.
As traditional manufacturing methods hit their limits, a process known as “UV Photocuring” is becoming the key to unlocking the door to mass production of consumer-grade AI/AR glasses.
01 The Bottleneck of Mass Production: The Dilemma of Traditional Lamination
For a long time, manufacturing multifunctional lenses has relied primarily on the “Lamination” process: much like making an optical sandwich, each layer—the waveguide, the light-adjusting film, the lens substrate—is made separately and then bonded together layer by layer using special optical adhesive.
When faced with the demands of smart glasses—complex structures, extreme thinness and lightness, and long-term reliability—this method encounters three formidable “mountains” that are difficult to overcome:
The Efficiency Gap
Thermal-curing lamination is a “slow and meticulous” process, with heating and slow cooling alone taking several hours. This pace is completely out of sync with the consumer electronics market’s demand for “speed” and “personalized customization.” When every pair of glasses needs to be individually made based on personal prescription data, production efficiency becomes the primary constraint on mass production and cost control.
Material Limitations
Many core functional materials are inherently “heat-sensitive.” For instance, the electrochromic film responsible for auto-dimming contains electrochemical materials easily “damaged” during high-temperature curing, leading to slower response times, diminished dimming performance, and a direct impact on user experience and product lifespan.
Reliability Concerns
Each adhesive layer is a potential weak point. Microscopic bubbles within the adhesive can cause light scattering and image distortion. Different materials expand and contract at different rates with temperature changes, potentially leading to lens deformation or even delamination over time due to internal stress. For components sensitive to moisture, the additional edge sealing steps required further complicate the process, and the long-term reliability of this seal is difficult to guarantee.
02 The Technological Leap: How Ultraviolet Light Achieves “Monolithic Generation”
The UV photocuring process brings a fundamental change: it no longer uses adhesive to “bond” parts together, but rather uses light to “grow” a complete component.

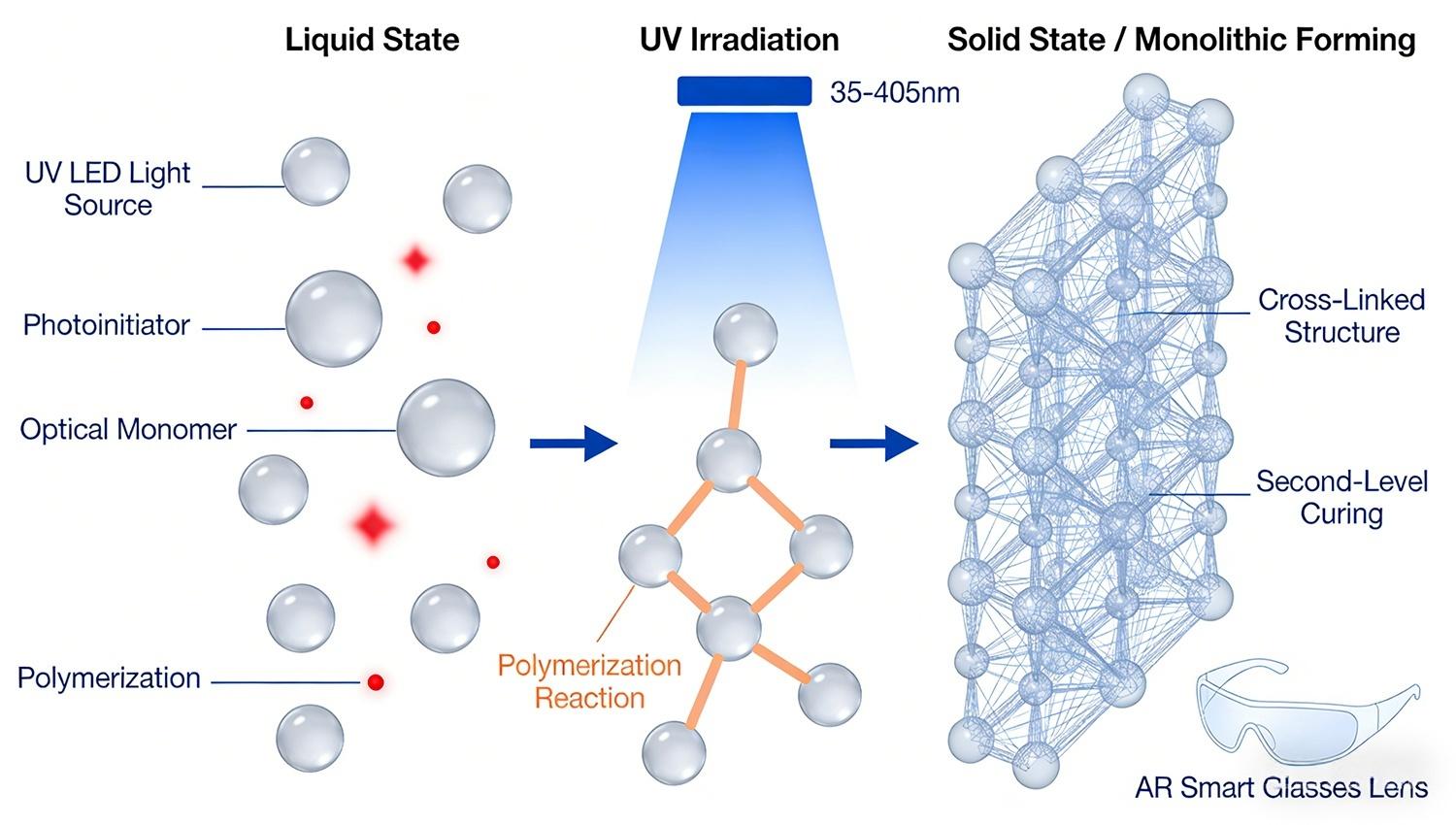

This process is like “speed-of-light modeling”: ultraviolet light of a specific wavelength, at room or low temperature, acts like a precise switch, instantaneously triggering a polymerization reaction in the liquid optical material. It transforms directly from a liquid into a solid, transparent monolith, seamlessly fusing the various functional layers together.
This shift in fundamental logic brings comprehensive improvements:
| Comparison Dimension | Traditional Lamination Process | UV Photocuring Process |
|---|---|---|
| Core Concept | “Assemble then bond,” like gluing independent building blocks together | “Done in one go,” like casting to form a single, integrated piece |
| Production Flow | Requires high temperature, takes several hours, plus slow cooling | Room or low temperature, cures rapidly within seconds to minutes |
| Impact on Materials | High-temperature environment may damage sensitive materials, limiting choices | Low-temperature environment is gentle, compatible with a wider range of materials, protects material properties |
| Structural Strength | Relies on adhesive strength, risks delamination and debonding | Monolithic structure, no internal seams, inherently more robust |
| Optical Performance | Adhesive layers may harbor bubbles/impurities, causing stray light/image distortion | Uniform curing, excellent light transmission, consistent and stable optical performance |
| Design Flexibility | Typically limited to planar or simple curved layer stacking | Enables integrated manufacturing of complex curves and precision microstructures |
03 Key Breakthroughs: Two Core Applications Materialize
The advantages of photocuring technology are not just theoretical. It has achieved substantive breakthroughs in integrating the two most core functions of smart glasses, solving the pain points of traditional processes.
Embedding AR Display into Prescription Lenses
In AR glasses, to comfortably overlay virtual images onto the real world, the flat waveguide display must be perfectly combined with the curved prescription lens. Traditional lamination requires extremely high alignment precision and is prone to delamination over time.
The photocuring process can directly cast the waveguide structure into the lens interior, akin to “setting a gemstone.” Using high-precision molds for single-step forming ensures not only precise optical parameter matching but also eliminates the possibility of debonding at its root, guaranteeing long-term stability and clarity for the virtual display.
Equipping Lenses with “Smart Dimming” Capability
Smart dimming (electrochromic) functionality greatly enhances visual comfort in bright light, but its core EC film is very “delicate,” sensitive to both high temperature and moisture.
The “low-temperature characteristic” of the photocuring process perfectly protects the EC film. It can completely encapsulate and seal the dimming film within the lens, forming a natural protective barrier that effectively blocks moisture and dust, eliminating the need for subsequent sealing steps. This makes the dimming function both responsive and durable, becoming a truly reliable feature for daily use.
04 Industrial Transformation: Reshaping the Smart Glasses Ecosystem
The impact of UV photocuring has long transcended the single manufacturing step, triggering a “chain reaction” from product design to the entire industrial ecosystem.
It first changes design thinking. Designers no longer need to rack their brains over how to “cobble together” various independent components. They can design the waveguide, dimming, and vision correction as a “complete smart optical module,” greatly unleashing innovation potential and pushing the ceiling of product performance.
More importantly, this new process integrates smoothly with the existing vast eyewear industry chain. Traditional lens manufacturers can undergo a relatively smooth transformation and upgrade, joining the ranks of smart glasses manufacturers without the need to start from scratch or drastically overhaul production lines. This will rapidly drive supply chain maturity and, through scaled production, tangibly reduce overall costs, accelerating the journey of smart glasses from “geek gadgets” to “mass consumer products.”
05 Conclusion
From using adhesive to “bond” to using light to “generate,” this quiet process revolution confirms a simple truth: Exceptional user experience is ultimately inseparable from solid breakthroughs in underlying technology.
The UV photocuring process, by simultaneously addressing the core conflicts of high integration, long-term reliability, and scalable cost, has tangibly pushed open the door to mass production for the widespread adoption of AI/AR glasses.
As this process continues to mature and improve, the day when each of us can own a pair of powerful, comfortable, and affordable smart glasses is accelerating its arrival. That precise beam of ultraviolet light ultimately illuminates the vast future where intelligent technology seamlessly integrates into our daily lives.
