A Comprehensive Analysis of Polarized Optical Path Design

From component principles to Jones matrices, and from extinction ratio control to stress-induced birefringence—this article thoroughly explains the core logic of polarization optical path design.

Anyone working with optical systems knows that polarization is a "silent killer."

Your meticulously designed imaging system suffers an inexplicable drop in contrast; your carefully aligned interferometer produces fringes that just won't look right; the polarization states you specified shift completely once integrated into the actual optical path—more often than not, these issues stem from polarization.

Unlike geometric optics, polarization optics is not a case of "what you see is what you get." It is hidden within the oscillation direction of light waves, the stress distribution of every glass element, and even the torque applied to a screw you casually tightened.

Today, we will systematically break down the four core pillars of polarization optical system design: the principles and selection of polarization components, Jones matrix modeling, extinction ratio control, and the impact of stress-induced birefringence.

This is practical, hard-core knowledge directly applicable to engineering practice.

Polarization Optical Components: Principles and Selection

In practice, the polarized optical path is quite simple.

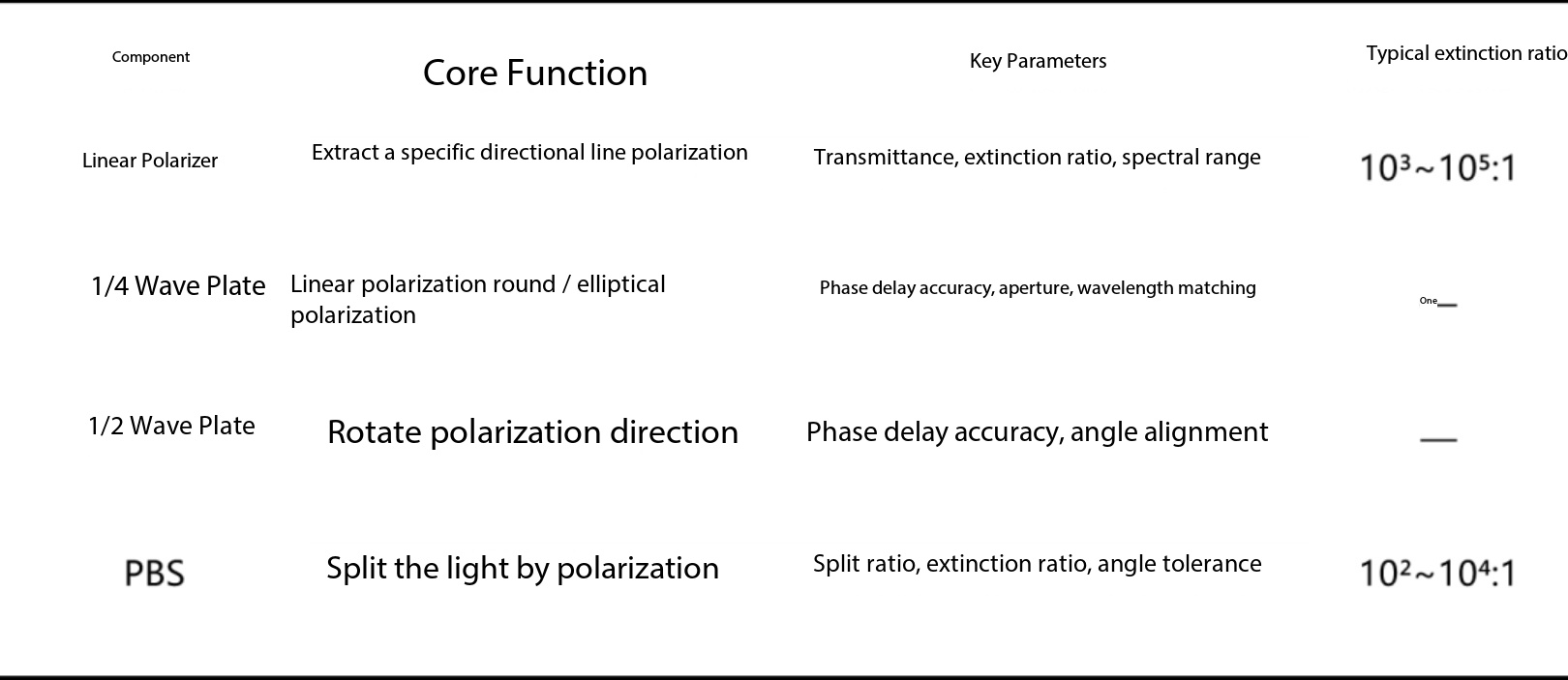

The "building blocks" of a polarized optical path consist of just four components: linear polarizers, quarter-wave plates, half-wave plates, and polarizing beam splitters (PBS). Choose the right ones, and system performance doubles; choose the wrong ones, and you'll face a host of pitfalls down the line.

Let's go through them one by one.

Linear Polarizer

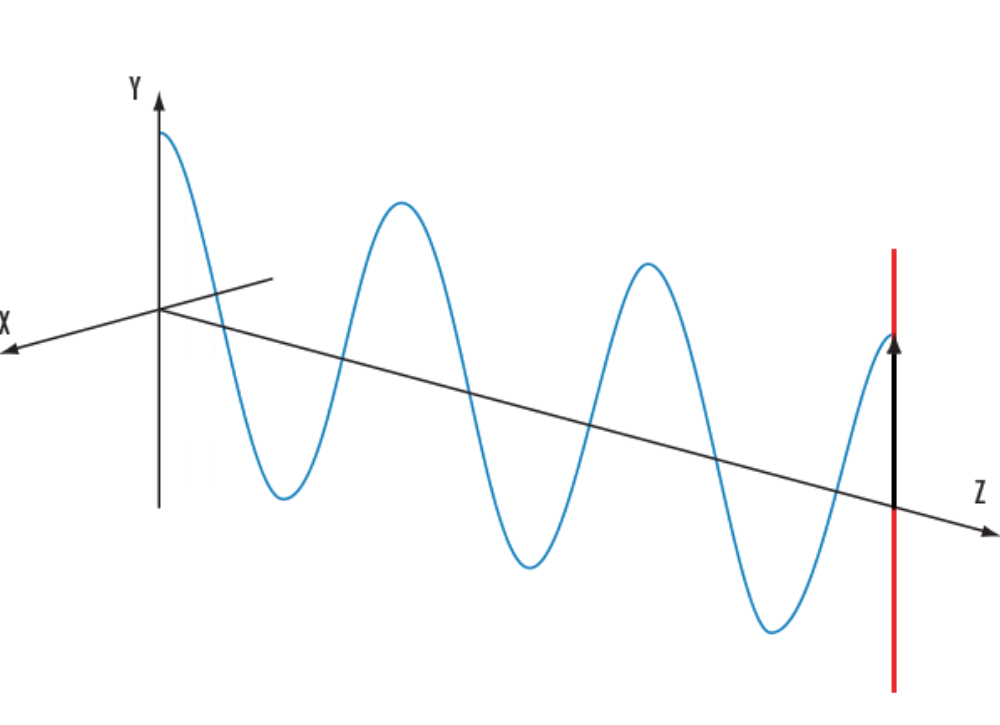

The function of a linear polarizer can be summed up in a single sentence: it extracts linearly polarized light in a specific direction from light of any polarization state.

In principle, a polarizer utilizes mechanisms such as dichroism or selective reflection to allow only light with a specific vibration direction to pass through, while absorbing or reflecting the orthogonal component.

Focus on three key parameters when selecting a polarizer:

Transmittance: An ideal polarizer has a transmittance of 50% for linearly polarized light (given natural light incidence), while actual devices range from 80% to 95%. Higher transmittance means less optical energy loss.

Extinction Ratio: This is the polarizer's defining characteristic. High-quality thin-film polarizers can achieve ratios of 10⁴:1 to 10⁵:1, while Glan-Taylor prisms can exceed 10⁵:1. Without a sufficient extinction ratio, any subsequent polarization control is meaningless.

Spectral Range: Iodine-based polarizers cover the visible to near-infrared spectrum; dichroic thin-film polarizers can extend beyond 2000 nm. The ultraviolet range requires special coatings or calcite prisms.

Selection Advice: For systems requiring high precision (such as polarization interferometry or ellipsometry), prioritize crystal prism polarizers; for cost-sensitive or space-constrained systems, choose thin-film polarizers. However, keep in mind that the extinction ratio of thin-film polarizers is sensitive to temperature and humidity and degrades over time, so periodic calibration is essential.

Quarter-Wave Plate

A quarter-wave plate introduces a phase shift of π/2 (i.e., one-quarter of a wavelength).

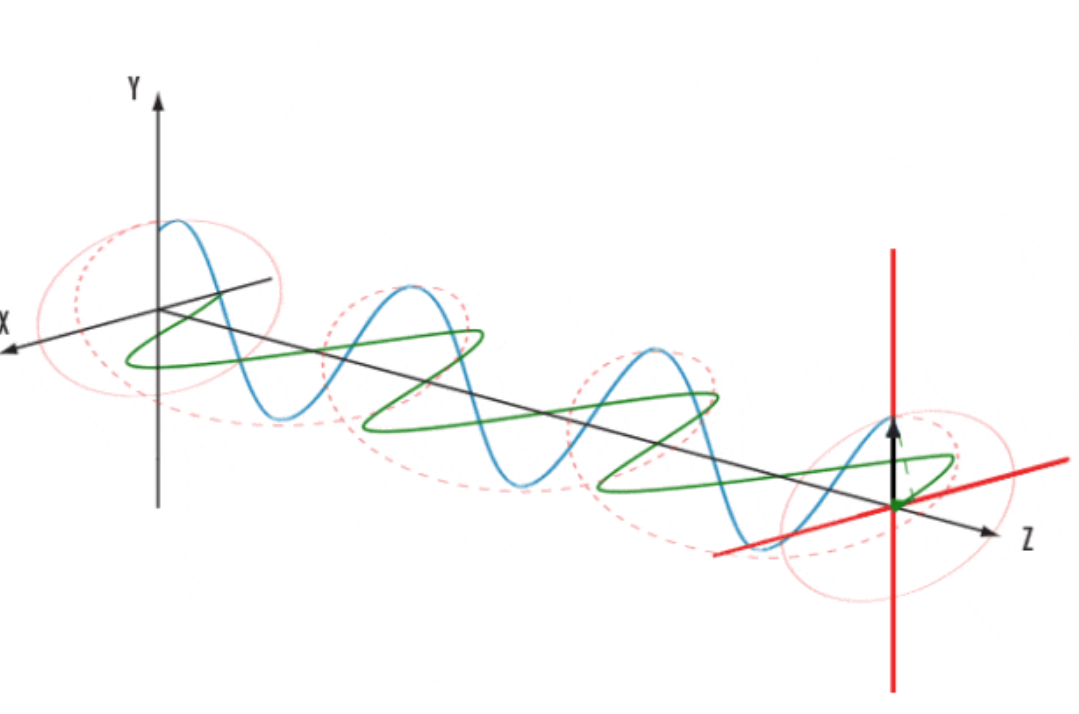

Its primary function is to convert between linearly polarized light and circularly or elliptically polarized light.

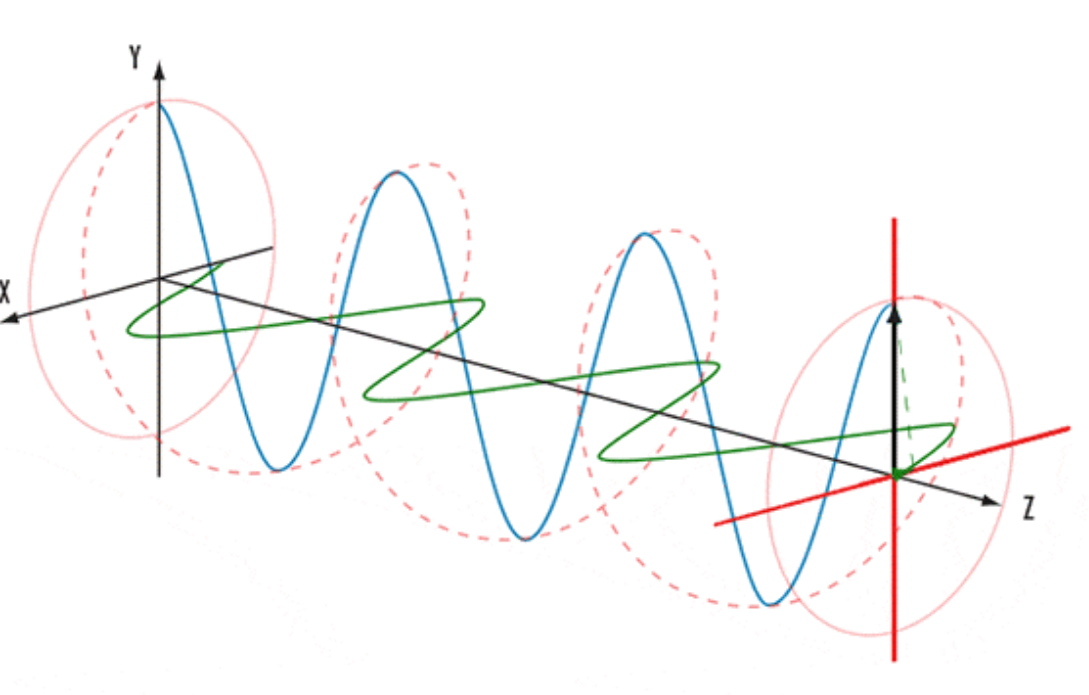

When incident linearly polarized light is oriented at 45° to the fast axis of the wave plate, the emergent light becomes circularly polarized; if the angle deviates from 45°, it becomes elliptically polarized.

This 45° alignment step is the most error-prone part of aligning a polarization optical path.

Key selection parameters:

Phase retardation accuracy: Zero-order waveplates offer the least sensitivity to wavelength and temperature fluctuations, making them the preferred choice for high-precision systems; multi-order waveplates are inexpensive but suffer from significant thermal drift.

Clear aperture: The waveplate material (quartz, mica, or polymer) determines the aperture size. Quartz zero-order waveplates typically have apertures no larger than 25 mm, whereas polymer waveplates can exceed 50 mm.

Wavelength matching: Quarter-wave plates are wavelength-sensitive devices; the phase retardation deviates from π/2 when used outside the design wavelength. For broadband systems, achromatic waveplates should be considered.

Half-Wave Plate

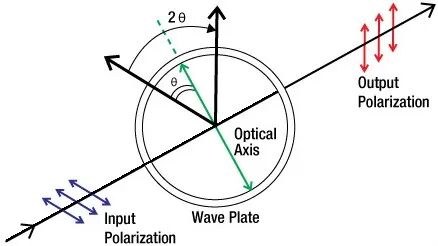

A half-wave plate introduces a phase shift of π, serving to rotate the vibration direction of linearly polarized light. When the angle between the incident linearly polarized light and the fast axis is θ, the polarization direction of the output light is rotated by 2θ.

This "2θ" relationship is the most important characteristic of the half-wave plate, implying the following:

When the fast axis is aligned at 45°, the polarization direction rotates by 90°—converting horizontal polarization to vertical polarization—enabling a "polarization flipping" function when used with a PBS.

As the fast-axis angle rotates continuously, the polarization direction changes continuously—this is the core principle behind variable optical attenuators and polarization controllers.

In fiber-optic communications, half-wave plates are widely used to compensate for changes in the state of polarization caused by fiber bending, specifically by leveraging this rotation characteristic.

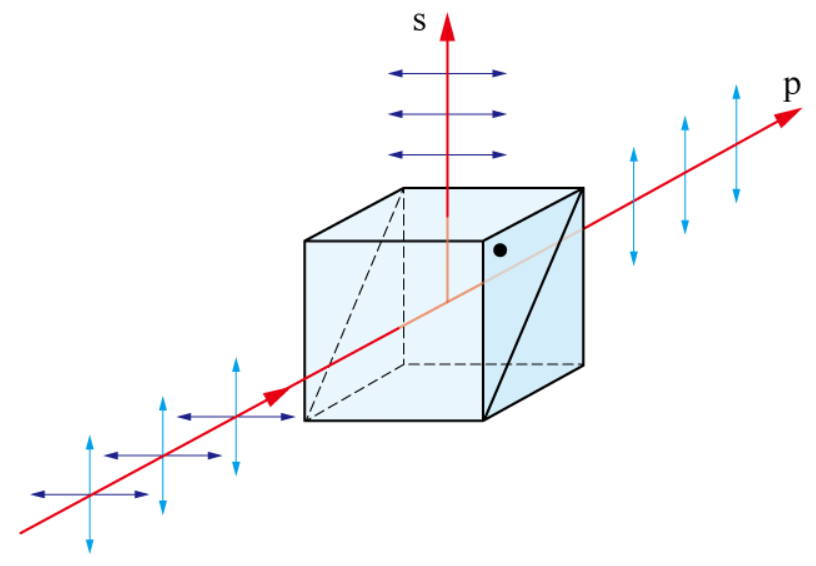

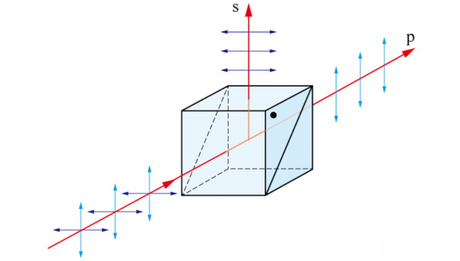

PBS (Polarizing Beam Splitter)

The PBS is a pivotal component in a polarized optical path: it splits incident light into two beams based on polarization, transmitting p-polarized light and reflecting s-polarized light.

There are two common configurations:

Thin-film polarizing beamsplitter: Features a multilayer dielectric coating on the hypotenuse of a cubic prism. Advantages: compact structure and large aperture; disadvantages: extinction ratio typically ranges from 100:1 to 1000:1, and it exhibits high angular sensitivity.

Polarizing beamsplitting prism (e.g., MacNeille type): Achieves a high extinction ratio by utilizing the Brewster angle condition. High-quality components can reach extinction ratios exceeding 10⁴:1.

Jones Matrices: The Mathematical Language of Polarization States

Jones matrices are indispensable in polarization optics design.

They are mathematical tools used to describe polarization states and the behavior of polarization elements, enabling "chain calculations" of polarized optical paths through matrix multiplication.

Jones Vector: Describing the polarization state

The state of a polarized light beam is described by a two-dimensional Jones vector:

Among them, Ex and Ey are the amplitudes of the two orthogonal components, and δx and δy are their respective phases.

Jones vectors of several typical polarization states:

Horizontal linear polarization: [1; 0]

Vertical linear polarization: [0; 1]

45° linear polarization: [1; 1] / √2

Right-handed circular polarization: [1; -i] / √2

Left-handed circular polarization: [1; +i] / √2

Jones matrix of components

Each polarization element corresponds to a 2×2 matrix, and the process of light passing through the element is represented by the multiplication of a vector by the matrix:

Jones matrices for four core components:

Linear polarizer (transmission axis along the x-direction):

Px = [ 1 0 ; 0 0 ]

When the transmission axis makes an angle θ with the x-axis:

P(θ) = [ cos⊃2;θ cosθ·sinθ ; cosθ·sinθ sin⊃2;θ ]

Quarter-wave plate (fast axis along the x-direction, phase retardation δ = π/2):

QWP = [ 1 0 ; 0 -i ] = [ 1 0 ; 0 e-iπ/2 ]

Half-wave plate (fast axis along the x-direction, phase retardation δ = π):

HWP = [ 1 0 ; 0 -1 ] = [ 1 0 ; 0 e-iπ ]

When the fast axis of the wave plate makes an angle θ with the x-axis, the general rotation transformation is:

M(θ) = R(-θ) · M(0) · R(θ)

in R(θ) = [ cosθ -sinθ ; sinθ cosθ ]

PBS (ideal scenario):

PBS Transmittance =[ 1 0 ; 0 0 ]

PBS reflection =[ 0 0 ; 0 1 ]

Chain Calculation of Optical Paths

When multiple polarization elements are connected in series, the total matrix is the product of the individual element matrices in reverse order:

M_total = M_n · M_{n-1} · ··· · M_2 · M_1

It is important to note here that matrix multiplication is non-commutative; changing the order of the polarizers can yield completely different results. This marks a key distinction between designing polarization-based optical paths and standard geometric optical paths—the sequence of components cannot be arranged arbitrarily.

Here is a practical tip: when designing a system, it is advisable to build a computational model using Jones matrices (which can be implemented in just a few dozen lines of Python or MATLAB code) to run simulations before physically assembling the setup. This is particularly crucial for complex systems involving multiple waveplates and polarizing beam splitters (PBS), where manual calculations are highly prone to error. Once the simulation runs, the evolution path of the polarization state becomes immediately clear.

Extinction Ratio Control: The Lifeline of Polarization Systems

Extinction Ratio (ER) is a key metric for evaluating the performance of polarization systems, defined as the ratio of the transmittances of two orthogonal polarization components:

ER = Tmax / Tmin （or expressed in dB：ERdB = 10·log₁₀(Tmax/Tmin)）

The higher the extinction ratio, the better the polarization purity. However, in practical systems, the extinction ratio is "eroded" by various factors.

Degradation of the cascaded extinction ratio

When multiple polarization components are placed in series, the system's total extinction ratio is not a simple summation of the individual components' extinction ratios.

For cascaded polarizers, the approximate formula is:

1/ER_system ≈ 1/ER₁ + 1/ER₂ + ··· + 1/ERₙ

This implies that the system's extinction ratio is dominated by the component with the poorest performance.

If you use a polarizer with a 10⁵:1 extinction ratio followed by a PBS with a 100:1 ratio, the system's extinction ratio will be only 100:1.

Therefore, the core principle of component selection is that the bottleneck determines the upper limit. Allocating your budget to the component with the lowest extinction ratio is more effective than striving for high performance in just one specific area.

Angular alignment error

Angular misalignment of the polarizers' transmission axes directly degrades the extinction ratio.

The extinction ratio is maximized when two polarizers are ideally crossed (orthogonal), but an angular deviation Δθ introduces leakage:

ER_actual ≈ ER_ideal · cos⊃2;(Δθ) + sin⊃2;(Δθ) ≈ 1/Δθ⊃2; (when ER_ideal is very high)

To put this in perspective: an angular deviation of just 1° reduces an extinction ratio of 10⁵:1 to approximately 3300:1.

In high-precision systems, angular alignment requirements are typically within 0.1°, necessitating precision rotation mounts or fixation via optical bonding.

Practical methods for improving the extinction ratio

Series configuration of dual polarizers: Placing two polarizers with an extinction ratio of 10⊃3;:1 in series can theoretically boost the extinction ratio to 10⁶:1, at the cost of a roughly 50% reduction in transmittance.

Use of high-extinction-ratio prisms: Glan-Taylor or Glan-Laser prisms offer extinction ratios of 10⁵:1 to 10⁶:1, making them suitable for precision measurement systems.

Compensation plate correction: Inserting an adjustable waveplate into the optical path to cancel out residual system birefringence, thereby improving the extinction ratio by an order of magnitude.

Lock-in detection: For modulated polarization systems, employing electro-optic modulation combined with lock-in amplification allows for the extraction of weak polarization signals, effectively enhancing the detection extinction ratio.

Stress Birefringence: The Invisible Polarization Killer

If you have done everything right—selecting the best polarizer, aligning the angle, and calculating the Jones matrix—yet the extinction ratio still fails to improve, then stress-induced birefringence is likely the culprit.

What is stress-induced birefringence?

When optical materials are subjected to mechanical stress, their refractive index becomes anisotropic; this phenomenon is known as stress-induced birefringence. The effect is equivalent to "free" integration of a waveplate into the material, with properties that vary according to the stress distribution.

Stress-induced birefringence can be quantified by the optical path difference, Δn·d (measured in nanometers). Typical sources include:

Clamping stress at the lens edge: Excessive tightening of the lens barrel retaining ring induces compressive stress within the glass, resulting in peak birefringence at the edges.

Temperature gradients: Non-uniform temperature fields generate thermal stress; this is particularly pronounced in large-aperture lenses exposed to high-power light.

Bonding stress: Stress resulting from the shrinkage of optical adhesive during curing, which is especially significant in cemented prisms (such as PBS cubes).

Material residual stress: Stress remaining within glass blanks due to inadequate annealing—a "hidden landmine" in mass production.

Impact of stress-induced birefringence on the system

Stress-induced birefringence compromises polarization systems in several ways:

Extinction ratio degradation: When polarized light passes through an element exhibiting stress-induced birefringence, its polarization state undergoes rotation or becomes elliptical, leading to increased leakage through downstream polarizers. A window element with a retardation value of Δn·d = 10 nm is sufficient to reduce the system's extinction ratio from 10⁵:1 to approximately 10⊃3;:1.

Polarization orientation drift: The additional phase retardation introduced by stress-induced birefringence varies with the beam's position on the element, resulting in inconsistent polarization states across the beam profile—a phenomenon that manifests as "polarization artifacts" in polarization imaging systems.

Waveplate phase retardation error: Stress-induced birefringence inherent in the waveplate material superimposes upon the design phase retardation, causing the actual retardation to deviate from the nominal value. For zero-order quartz waveplates, the temperature coefficient of the quartz crystal's birefringence is approximately -0.0001 nm/°C/nm; consequently, precision systems require temperature compensation.

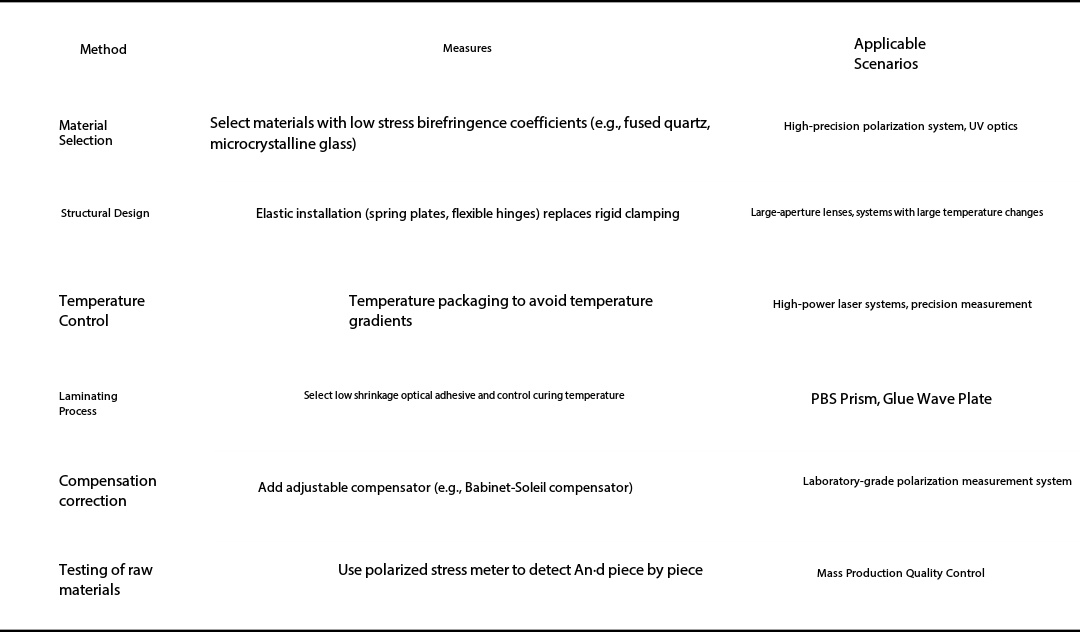

Engineering methods for controlling stress-induced birefringence

Here is a crucial insight: stress-induced birefringence is the most frequently overlooked source of error in polarization optical systems. Many engineers devote their efforts to selecting the best polarizers while ignoring the ordinary protective window in the lens barrel—yet it is precisely the birefringence of that window that slashes your extinction ratio from 10,000:1 down to 500:1. The stress-induced birefringence of every transmissive element in the optical path must be factored into the calculations.

Practical Principles for Polarized Optical Path Layout

Having covered the theory, here is a summary of layout principles repeatedly validated in engineering practice:

Place polarization components as close to the light source as possible.

The earlier the polarization state is "purified," the fewer errors are introduced by subsequent components. Place a polarizer immediately after the light source to lock in the polarization state.

Aligning waveplate angles is the first step in alignment.

The 45° alignment of a quarter-wave plate and the fast-axis angle of a half-wave plate directly determine whether the system functions correctly. Calibrate each plate individually using a polarimeter or the rotating analyzer method; do not rely on intuition.

Minimize the number of polarization-sensitive components.

Each additional component introduces a potential source of birefringence and angular error. Consolidate functions whenever possible (e.g., using a PBS to simultaneously perform beam splitting and polarization purification) and eliminate unnecessary components.

Prioritize simulation; verify with measurements.

Use Jones matrix modeling to simulate the evolution of the polarization state across the entire optical path and predict the extinction ratio; then, use a polarimeter to measure the polarization state at key locations, compare the results with simulation values, and identify the sources of any discrepancies.

Do not overlook temperature.

Waveplate phase retardation, stress-induced birefringence (due to temperature gradients), and PBS extinction ratios all vary with temperature. In high-precision polarization systems, constant temperature control is not merely a "bonus"—it is a necessity.

The essence of polarization optics design lies in exercising "precision control" over the dimension of the light wave's oscillation direction. While geometric optics governs "where light travels," polarization optics governs "how light oscillates." A system is truly well-designed only when both dimensions are properly managed.

Polarization optics may seem abstract, but by focusing on the core framework of "component principles, mathematical descriptions, and error control," even the most complex polarization optical paths can be clearly deconstructed.

I hope this article helps you avoid pitfalls when designing polarization systems in the future.
