99.99% Reflectivity Laser High-Reflection Mirrors: A Comprehensive Analysis of Principles, Manufacturing Processes, And Measurement

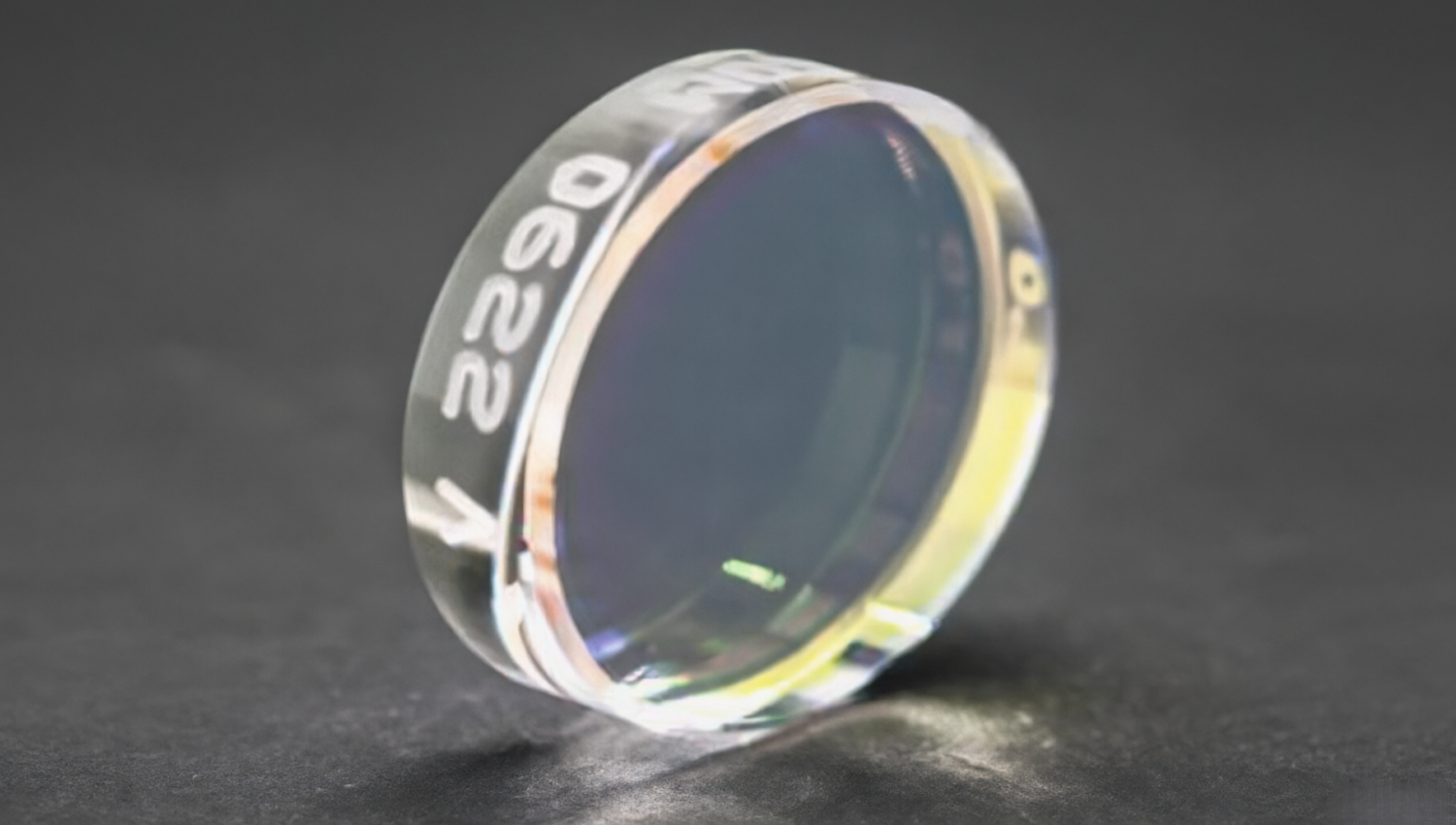

A friend once brought me a high-reflectivity laser mirror and asked, "The spec sheet says R > 99.99%, but my spectrophotometer measures it at 99.8%. Did I get a counterfeit?"

I told him it wasn't necessarily a fake. The mirror itself might be flawed, but it’s far more likely that the spectrophotometer simply isn't capable of measuring such a value.

Most spectrophotometers have an accuracy range of ±0.1% to ±0.3%; trying to use one to measure 99.99% reflectivity is like trying to measure the diameter of a human hair with a standard tape measure.

Writing "99.99%" on a spec sheet is easy—but actually achieving that level of performance and verifying it requires serious technical expertise at every stage.

Today, we’ll take a comprehensive look at high-reflectivity laser mirrors—from the coating process to the final measurement.

How is a 99.99% pure coating applied?

Ultra-high-reflectivity laser mirrors with a reflectance of 99.99% are produced using all-dielectric coatings deposited via Ion Beam Sputtering (IBS). Standard metallic coatings (such as gold, silver, or aluminum) cannot achieve 99.99% reflectance; this level of performance is only possible with multi-layer, low-loss dielectric coatings. Such mirrors are commonly used in laser resonators, Cavity Ring-Down (CRD) spectroscopy, Fabry-Pérot (FP) interferometers, ring laser gyroscopes, and ultra-stable optical cavities.

In short: the design consists of alternating layers of high- and low-refractive-index materials, with each layer having an optical thickness of one-quarter wavelength, stacked in dozens of layers.

For 1064 nm, a common combination is Ta₂O₅/SiO₂, with refractive indices of approximately 2.1 and 1.45. At each high-low (HL) interface, the reflected light waves interfere constructively (in-phase), while the transmitted light intensity decreases exponentially.

The math is straightforward: about 16 pairs yield a theoretical reflectivity of 99.9%, while 20 pairs push the theoretical value toward 99.999%.

Mathematically speaking, 20 pairs should be sufficient.

So, why do actual manufactured coatings often only reach 99.9%? Because the limiting factor is rarely the number of layers; it is absorption and scattering.

A reflectivity of 99.99% implies a total loss of less than 100 ppm. With absorption from the materials, the interfaces, and scattering each contributing tens of ppm, the "loss budget" is quickly exhausted.

Simply adding more layers only increases absorption and scattering; it also causes stress to accumulate, which can lead to the coating layers cracking.

Top-tier manufacturers use Ion Beam Sputtering (IBS) to maximize the density of each layer and the quality of the interfaces—typically within a range of around 20 pairs—followed by post-deposition annealing to minimize absorption. They do not rely on the crude approach of just stacking more layers.

Regarding bandwidth:

A standard quarter-wave stack has a limited high-reflection bandwidth, typically covering only about ±12% of the center wavelength.

Achieving broadband reflection (e.g., full reflection across 450–650 nm) requires non-quarter-wave designs or the superposition of multiple periodic stacks, which significantly increases both complexity and cost.

When purchasing optical coatings, be sure to specify the required bandwidth—don't just provide a single center wavelength.

LDT: The Make-or-Break Threshold for High-Reflectivity Mirrors

Even with high reflectivity, a single laser strike will damage the entire film, rendering it unusable.

Laser damage threshold (LDT/LIDT) is measured according to ISO 21254, commonly using two procedures: 1-on-1 (one strike per point) and S-on-1 (same point, repeated strikes).

At 1064nm nanosecond pulses, conventional films evaporated by electron beam have a yield of approximately a few to a dozen J/cm²; ion beam sputtering with optimized design can reach 40 J/cm².

This significant difference is primarily due to defects.

Nodules, dust, and polishing residue on the substrate are all energy accumulation points.

When struck by a laser, the defective area explodes first, and the edges of the resulting pit become new accumulation points, growing larger and larger with each strike.

Therefore, high LDT films are produced through: ultra-clean environment coating, pre-furnace substrate inspection, half-wavelength SiO2 buffer layer insertion at the interface to interrupt defect propagation, and post-deposition annealing to eliminate oxygen vacancies.

These process details determine the fate of a mirror more than the film system design itself.

Another piece of experience to add: the damage threshold is strongly correlated with the spot size.

The larger the spot, the higher the probability of covering the defect, and the lower the measured threshold.

When comparing LDT data, first check the test conditions, pulse width, and spot size.

Cavity mirrors, output couplers, and folding mirrors—all are classified as high-reflectivity mirrors, yet their specific requirements differ significantly.

Cavity mirrors (high-reflectivity end mirrors): Light travels back and forth within the cavity, undergoing multiple reflections—in fact, the light traverses the resonant cavity tens of thousands of times.

If a mirror has a reflectivity of 99.9% (implying a 1000 ppm loss per reflection), the cavity will fail to reach the threshold for oscillation.

Therefore, cavity mirrors require a reflectivity (R) of ≥99.99%, with high-end versions reaching 99.995% or greater.

Even more critical than reflectivity is absorption: under high-power continuous-wave (CW) operation, an absorption level of just a few tens of ppm can heat up the mirror, inducing a "thermal lens" effect that distorts the beam spot and degrades the optical mode.

Among the three categories, cavity mirrors are the most challenging to manufacture.

Output mirror (OC): The design intentionally leaves an opening for light to escape. Transmittance (T) ranges from a few tenths of a percent to several tens of percent, calculated from the cavity gain and loss.

The challenges lie in two areas: accurate transmittance (within ±0.5%) and good in-plane uniformity; otherwise, the coupling ratio will change wherever the light spot sweeps.

Additionally, the substrate is typically wedge-shaped to avoid the etalon effect formed by two parallel surfaces, which can cause reading instability at high power.

Turning mirror: Used outside the cavity for 45° beam deflection.

Keep two points in mind: First, at a 45° angle of incidence, reflectivities for S-polarized and P-polarized light differ—the high-reflectivity bandwidth for P-polarization is typically narrower. Always verify whether the "R" (reflectivity) value specified in the datasheet refers to S-polarization, P-polarization, or an average. Second, absorption in a turning mirror converts directly into heat, which can cause optical path drift; for systems with long optical paths or high stability requirements, you cannot afford to compromise on the quality of these mirrors.

While the requirements for absolute reflectivity are relatively relaxed (99.5% is usually sufficient), the requirements for surface figure and coating uniformity are extremely stringent.

The lesson when selecting components is this: first, clearly define the intended location, angle of incidence, polarization, and power density—only then should you consult the specification sheet. If a spec sheet doesn’t state the test conditions, it might as well not exist.

Measurement: A 99.99% figure isn’t measured directly—it’s derived.

Let’s return to the question posed at the beginning.

Measuring 99.99% essentially means measuring a loss of one part in 10,000; no instrument is capable of measuring such a reflectance level directly.

The industry approach is to break down the total loss, measure the individual components separately, and then combine the results.

Calorimetric Absorption Measurement:

In accordance with ISO 11551, a laser with a known power level is directed at an optical element (such as a lens or mirror). The temperature rise is monitored—typically using a thermocouple or an infrared thermometer—and the absorption rate is calculated based on the resulting temperature-rise curve. This method can achieve a sensitivity on the order of ppm (parts per million).

This is the most widely used technique for measuring absorption. Its limitation is clear: it only quantifies the amount of energy absorbed, while ignoring scattering and transmission.

Cavity Ring-Down Measurement of Total Loss:

A linear optical cavity is formed using two highly reflective mirrors. Once the laser source is switched off, the light intensity within the cavity decays exponentially; a detector is then used to record the decay time constant, τ.

Higher losses result in a shorter τ. To get a sense of the scale: for a cavity length of 0.5 m and a total round-trip loss of 200 ppm (100 ppm per mirror), τ is approximately 8 microseconds. Adding another "9" to the reflectivity (i.e., increasing it) extends τ by a factor of ten.

Cavity ring-down spectroscopy offers sensitivity at the ppm level, making it one of the few methods capable of verifying performance in the 99.999% (five-nines) range.

A limitation is that it measures the sum of all losses within the cavity; isolating the contribution of each individual mirror or specific loss mechanism requires careful experimental design and calibration.

The remaining pieces of the puzzle are addressed as follows: transmittance (T) is measured directly using a power meter (standard instruments are sufficient for this range), while scattering (S) is captured using an integrating sphere. Finally, the total loss budget is reconciled:

R = 1 − T − A − S

Each of the four parameters is measured independently; only when combined do they yield a credible 99.99% figure.

To be frank—as is well known within the industry—some optical components labeled as "99.99%" have only been tested under specific conditions: a designated design wavelength, 0° angle of incidence, and a small beam spot. Once you apply them to your own setup—with a 45° angle of incidence, a specific bandwidth, and a particular power density—the actual performance may be entirely different. Specifications are static, but testing conditions are dynamic.

Summary

Achieving 99.99% reflectivity is not limited by the thin-film stack design—theoretically, 20 pairs of quarter-wave layers are sufficient—but rather by process-related factors such as absorption, scattering, and defects. Furthermore, no instrument can directly measure this value; instead, transmittance (T), absorption (A), and scattering (S) must be measured separately and then combined. In this context, the testing conditions are even more critical than the specified parameter itself.
