2025 New AR Glasses Smart Terminal Adapter

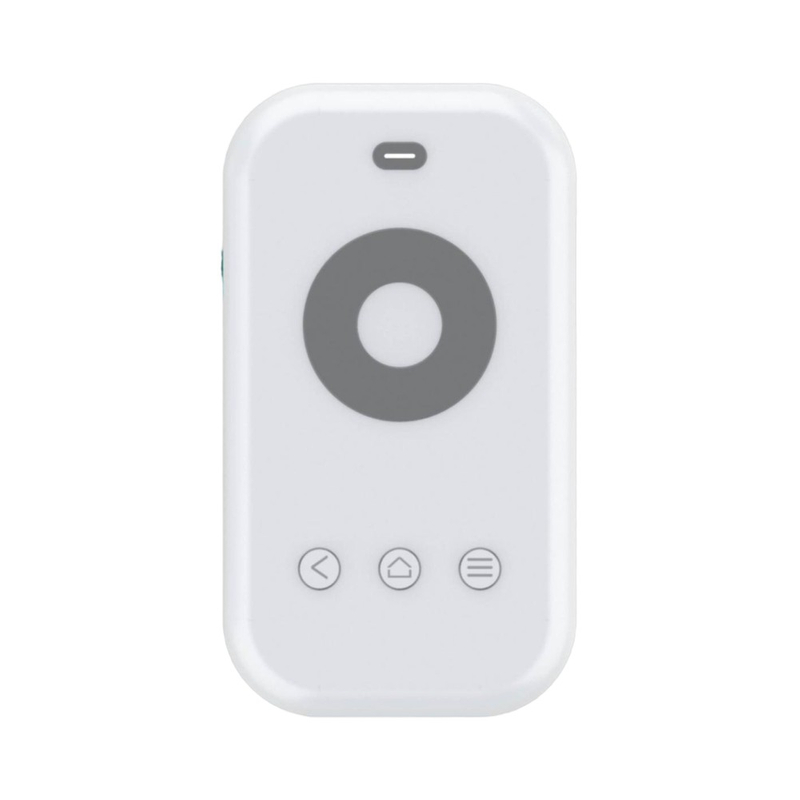

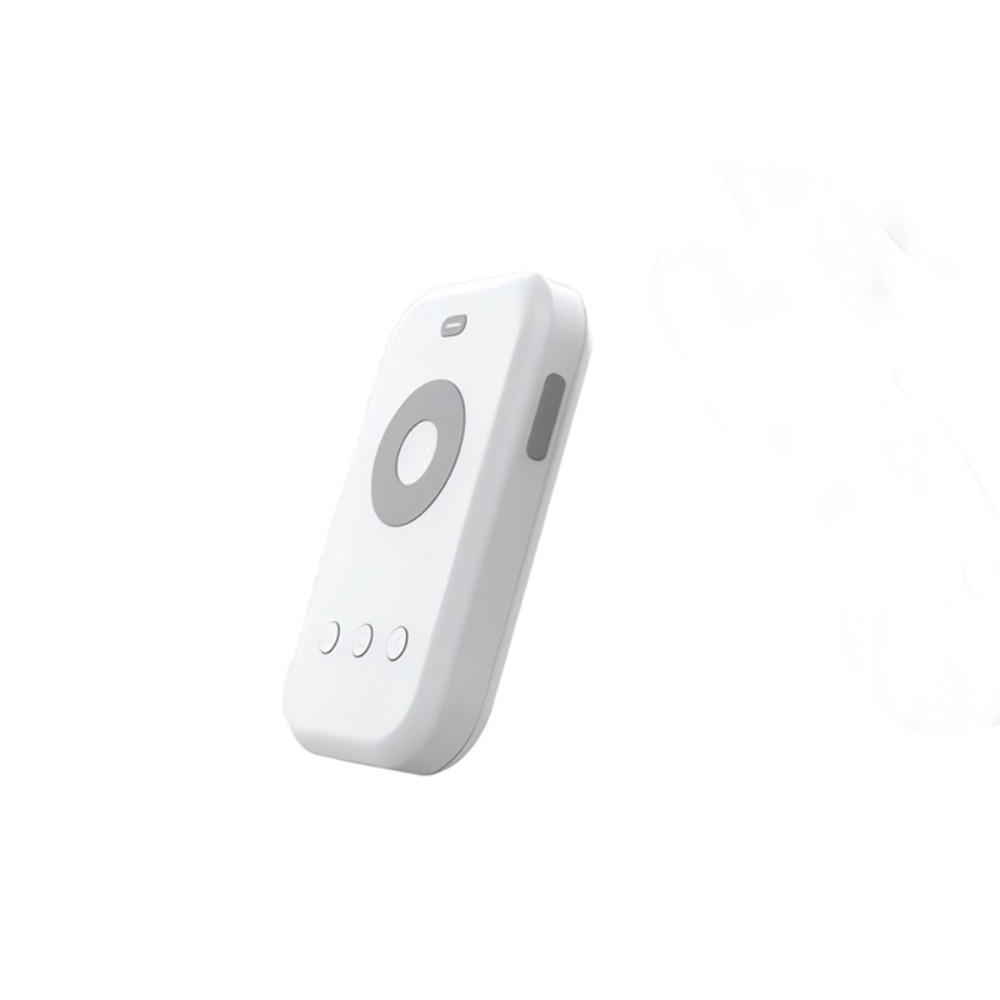

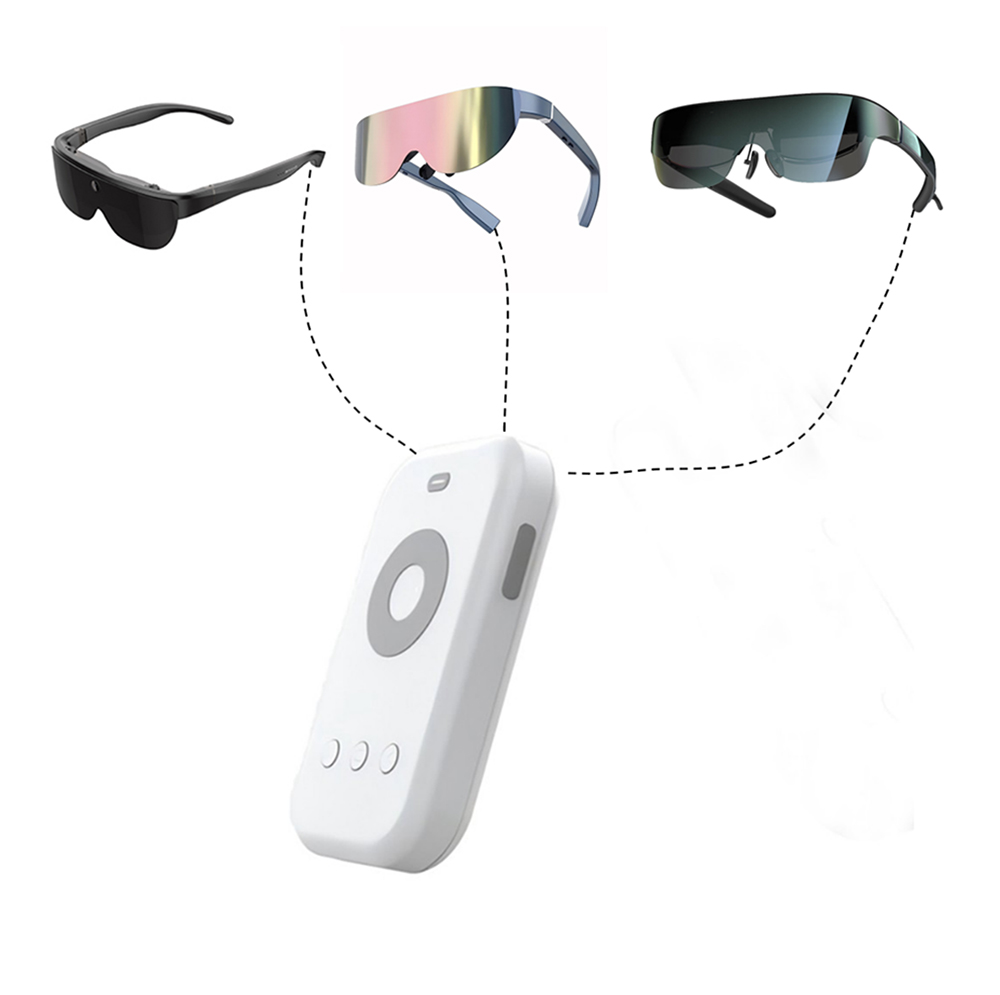

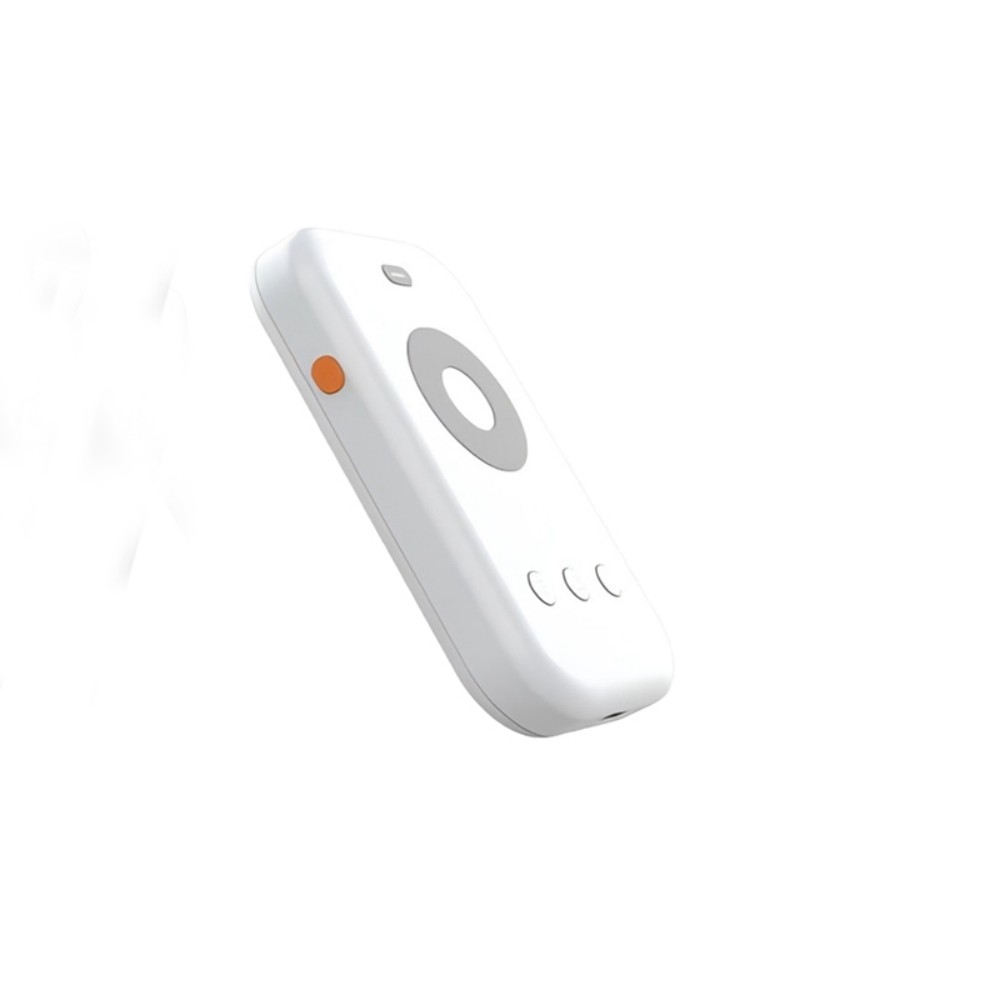

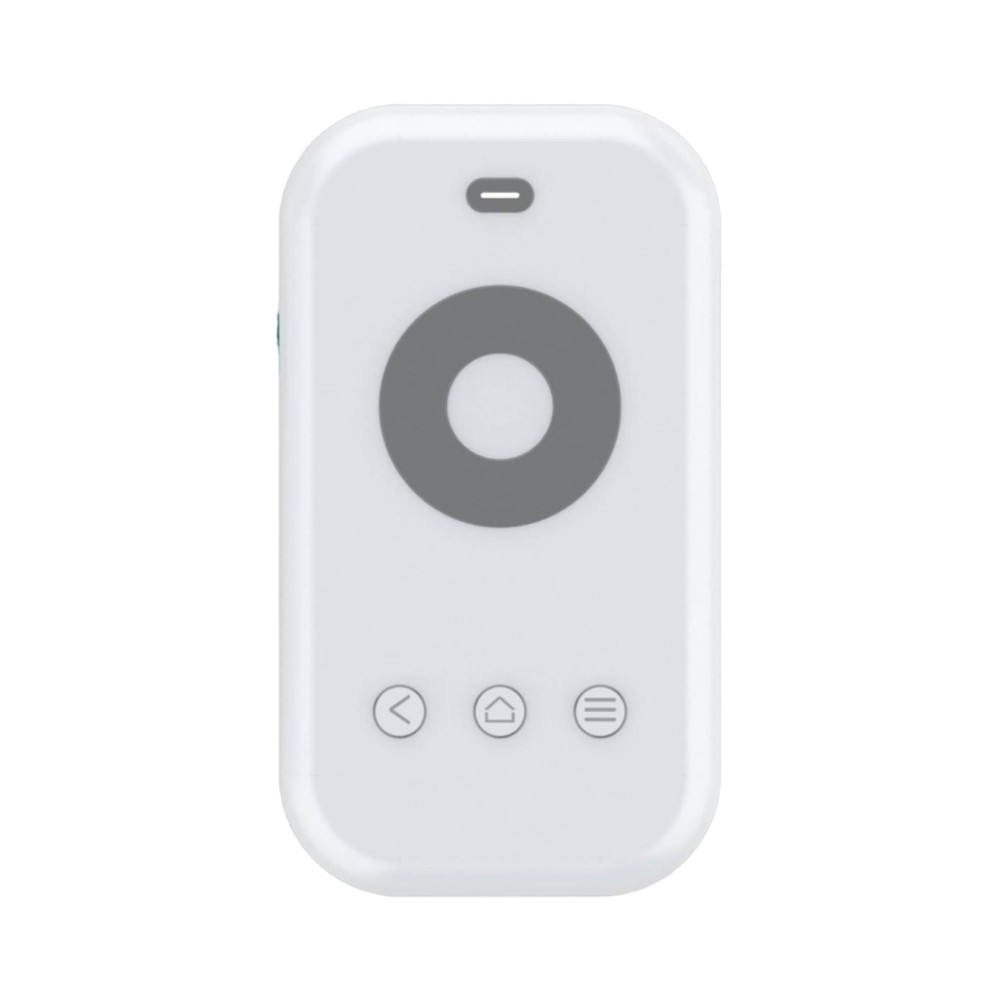

Mbox1 is a portable intelligent processing box that solves the pain point of AR glasses without content. It provides customized system and targeted intelligent AR applications. Compatible with Apple mobile phones and non-DP protocol Android mobile phone wireless screen problem.
-
MBOX
-
High-Definition display
| Availability: | |
|---|---|
| Quantity: | |
| Item | Description | |

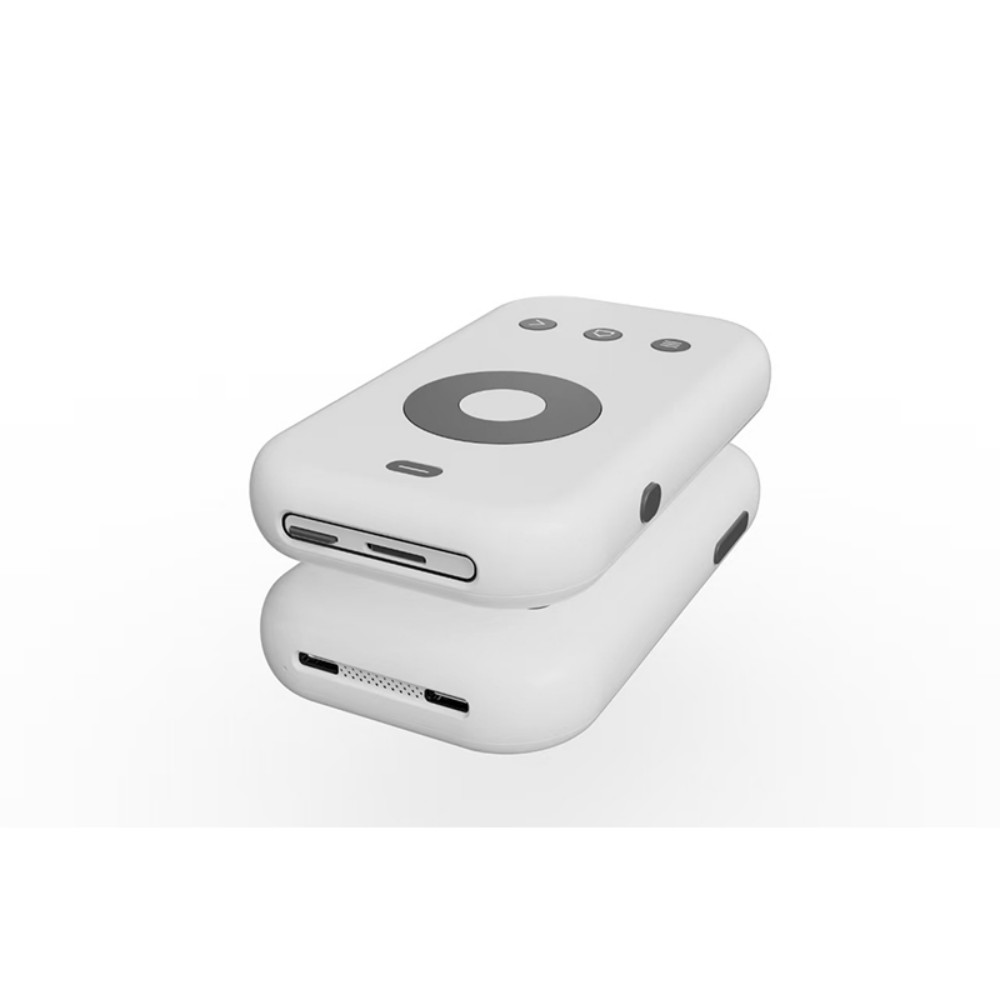

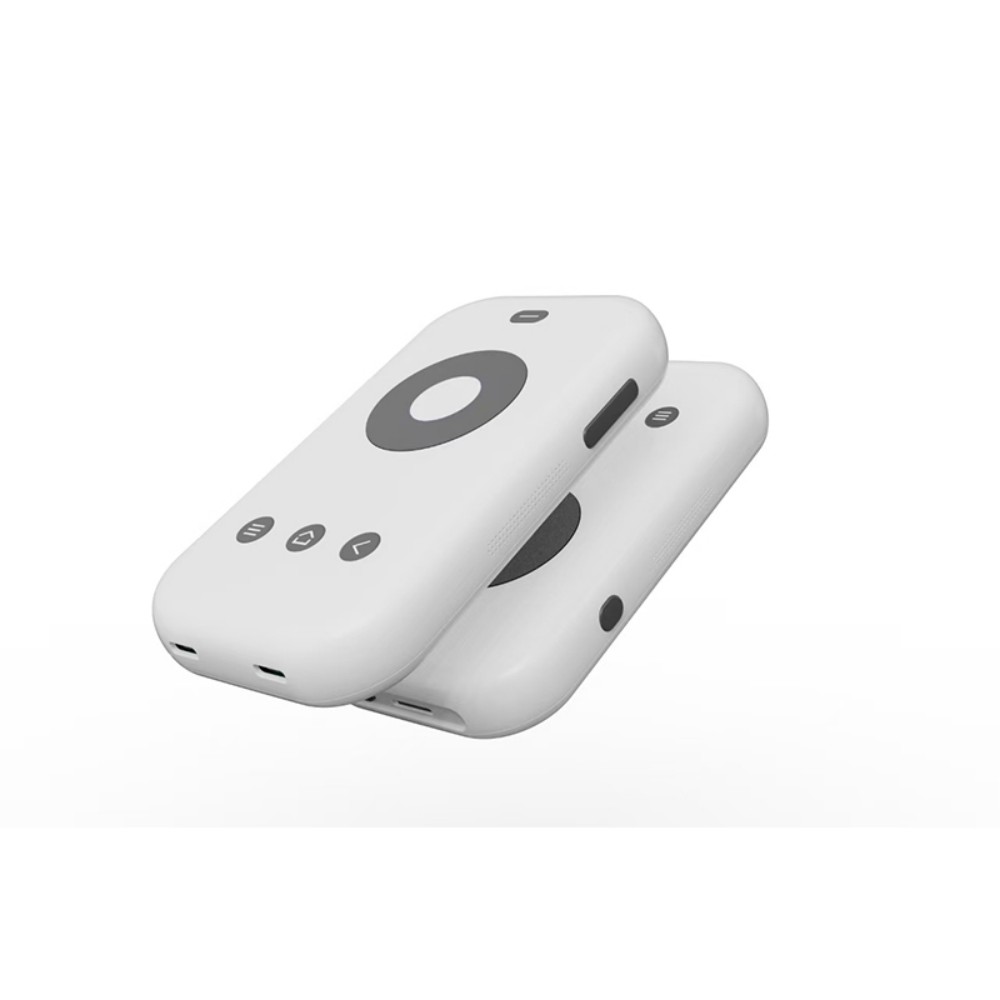

| Complete machine | form | Type-C charging interface, Type-C video output interface, supporting DP1.2+USB2.0 |
| platform | 1.CPU: RK3566, support HDMI interface, support left and right 3D playback, cost-effective, good compatibility 2. External HDMI conversion DP typeC chip 3. External wifi5 chip 4.GPU capability, support 3D playback | |
| Internal memory | 2+32G (customizable) | |
| battery | 5000mAh | |
| Waterproof and dustproof | IP6x dustproof support | |
| network | WiFi | WiFi5, IEEE 802.11a/b/g/n/ac/ax |
| Wireless projection screen | Supports wireless screen projection for Apple and Android phones | |
| Bluetooth | Bluetooth 5.0 | |
| reveal | TYPE_C 1 | TYPE_C supports DP video output |
| Resolution | 1920*1080@60fps Output | |
| Video format | Compatible with MP4, 3GP, MOV, MPG, WMV, MKV, FLV, rmvb and other video formats | |
| 3D | Left and right 3D, and the glasses come with the 3D switch to do a good job | |
| port | Video I/F | DisplayPort Mode |
| DP | Version v1.4, AR glasses video output interface | |
| Audio Codec | LPCM(32KHz to 192KHz) | |
| Power source | 5V 1.5A, charging interface, 5000mAh battery charge and discharge | |
| T card slot | Supports 1T external T card expansion and High speed mode | |
| USB protocol | USB 2.0 | |
| Audio frequency | mic | Single noise reduction mic |
| Professional codec | Support EQ regulation | |
| key | key | Power button, four arrow keys, OK key, back key, menu key, volume key |
| Custom key | Voice keys/shortcut keys can be customized | |
| 3D support | Supports 2D/3D switching | 3D/2D can be selected in the Settings, and long press the menu key to switch |
| Language | Multilingual support | Chinese, Traditional, English, Japanese, etc |
| Pilot lamp | Power indicator light | Charge display and power display |
| Item | Description | |
| Complete machine | form | Type-C charging interface, Type-C video output interface, supporting DP1.2+USB2.0 |
| platform | 1.CPU: RK3566, support HDMI interface, support left and right 3D playback, cost-effective, good compatibility 2. External HDMI conversion DP typeC chip 3. External wifi5 chip 4.GPU capability, support 3D playback | |
| Internal memory | 2+32G (customizable) | |
| battery | 5000mAh | |
| Waterproof and dustproof | IP6x dustproof support | |
| network | WiFi | WiFi5, IEEE 802.11a/b/g/n/ac/ax |
| Wireless projection screen | Supports wireless screen projection for Apple and Android phones | |
| Bluetooth | Bluetooth 5.0 | |
| reveal | TYPE_C 1 | TYPE_C supports DP video output |
| Resolution | 1920*1080@60fps Output | |
| Video format | Compatible with MP4, 3GP, MOV, MPG, WMV, MKV, FLV, rmvb and other video formats | |
| 3D | Left and right 3D, and the glasses come with the 3D switch to do a good job | |
| port | Video I/F | DisplayPort Mode |
| DP | Version v1.4, AR glasses video output interface | |
| Audio Codec | LPCM(32KHz to 192KHz) | |
| Power source | 5V 1.5A, charging interface, 5000mAh battery charge and discharge | |
| T card slot | Supports 1T external T card expansion and High speed mode | |
| USB protocol | USB 2.0 | |
| Audio frequency | mic | Single noise reduction mic |
| Professional codec | Support EQ regulation | |
| key | key | Power button, four arrow keys, OK key, back key, menu key, volume key |
| Custom key | Voice keys/shortcut keys can be customized | |
| 3D support | Supports 2D/3D switching | 3D/2D can be selected in the Settings, and long press the menu key to switch |
| Language | Multilingual support | Chinese, Traditional, English, Japanese, etc |
| Pilot lamp | Power indicator light | Charge display and power display |
Core Product Highlights
Design & Performance
✓ Ultra-Slim Optical System: 0.55mm thin optical module with 89% light transmittance
✓ Premium Build: Ergonomic magnesium alloy frame (72g)
✓ Full Android 13 OS: Supports Google Play & APK sideloading
Connectivity
✓ Wired Projection: Type-C DP Alt Mode (plug-and-play)
✓ Wireless Casting: Miracast/AirPlay/DLNA (1080p@60Hz)
Battery & Storage
✓ Extended Playback: 4hrs video (5000mAh) + 20W fast charge
✓ Ample Storage: 2+32GB + TF card expansion
Media Support
✓ Advanced Decoding: H.265/VP9 + 3D SBS/TAB formats
✓ Virtual Cinema: 70" screen @3m (854×480@60Hz)
AI Features
✓ Voice Control: Far-field mic array with noise cancellation
✓ AI Assistant: Integrated ChatGPT-4o Lite for translation/research
Bonus Features
✓ Developer SDK for AR apps
✓ IP54 water/dust resistance
✓ Anti-blue light certified
Key Advantages vs Competitors
• Thinnest optical module in class (0.55mm)
• Only model with both wired DP Alt Mode and wireless AirPlay
• Exclusive ChatGPT-4o integration for on-device AI
