AI Camera Smart AR Glasses
This AI Smart AR Glasses offer video recording, photography, and AI recognition for a seamless experience. Enjoy music and calls with advanced noise reduction and touch controls.
-
CA01
-
Smart AR Glasses for Capture and Interaction Anytime, Anywhere
-
High-Definition display, Wireless, Camera
| Availability: | |
|---|---|
| Quantity: | |
| Specification | ||
| Parameters | chip | JL7018F |
| Bluetooth version | V5.4 | |
| WIFI | V821/WiFi 4 | |
| Bluetooth distance | >12m | |
| Horn specifications | AAC Dual Speaker 1609/lndependent Amplifier | |
| MIC | Dual microphone noise reduction | |
| photo | Video 1080p,30 frames per second | |
| Photo Pixel | Compatible with 1080P; AVI format; WIFI transmission; APP real-time preview | |
| sensor | 6-axis sensor Gsensor/supports anti shake algorithm | |
| Memory | SD NAND patch/32Gb | |
| Wear detection | support | |
| battery | Wire bonding/compatible with high and low voltage, 3C fast charging,220mAh/3.85V | |
| Charging method | 2-pin magnetic charging | |
| pilot lamp | Camera indicator light/charging indicator light | |
| LED flash | 1 piece, size 2.1MMX1.5MM | |
| charging time | 2 hours | |
| standby | 4-7days | |
| call duration | about 10 hours | |
| Photo duration | >1 hour | |
| Video recording duration | >1 hour | |
| Duration of music playback | about 10 hours | |
| Waterproof grade | IP64 | |

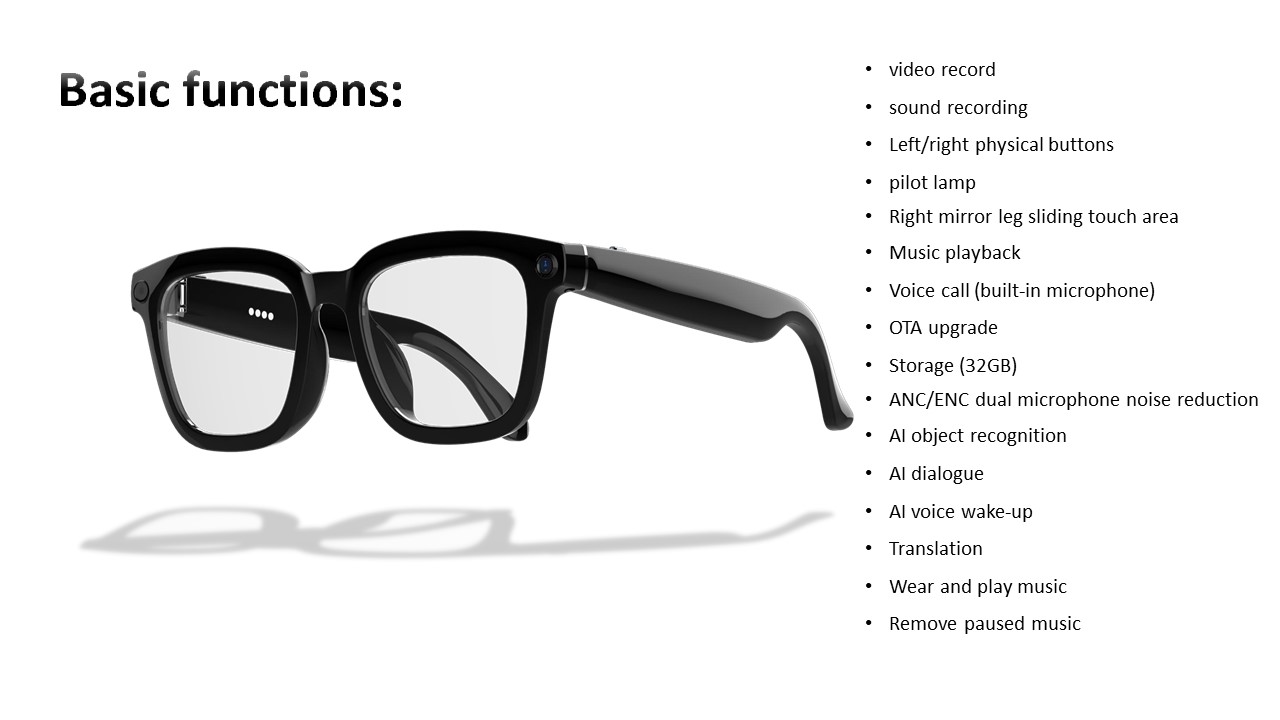

| Basic functions | recording | 1. 1080P 30 frames,automatically segmented and stored in Nand Flash; 2. Video format:Encode H.264,encapsulate AVI; 3. One click recording; 4. The video content supports app transmission and anti shake algorithms; 5.Support WiFi transmission |
| take pictures | 1.One click photography; 2.Image content,software 2000W,supports WiFi transmission | |
| sound recording | 1. One click recording; 2. Recording format:WAV 3. Supports WiFi transmission | |
| OTA upgrade | Connect to the app via Bluetooth for OTA upgrade | |
| Local music | Support full format local music playback:mp3wmaogg apeflacwavaacm4a | |
| Music playback | Support Bluetooth music push for mainstream phones such as iPhone/Android/HarmonyOS | |
| voice call | 1. When calling,click to answer the call/when making a call,click to hang up the call(physical button); 2. When receiving a call,long press and hold for three seconds to reject the call(physical button) | |
| Al functionality | Domestic bean buns/overseas chatgpt 1. Al image recognition 2. Al dialogue 3. Translation (Microsoft/University of Science and Technology) 4. Meeting minutes | |
| prompt sound | Power on/off prompt sound/photo prompt sound/video prompt sound | |
| Power on | Press and hold the right physical button for 2 seconds to turn on the device | |
| Power off | Long press the right button for 5 seconds to shut down | |
| Pairing/uncoupling | 1. Scan the QR code to download the app; 2. Bluetooth search; 3. Automatic reconnection; | |
| Al voice assistant | Voice call Hello Little Orange'to wake up the glasses AI voice assistant | |
| Memory | Built in storage 32GB | |
| Button function | Left button | Power on Bluetooth connection status:Short press once to wake up the Al voice assistant |
| Power on status:Short press twice to turn on recording, press again once during the process to turn off and save recording | ||
| Right button | Press and hold for 2 seconds to turn on,press and hold for 5 seconds to turn off,press and hold for 10 seconds to restore factory settings/enter automatic pairing mode,press and hold for 16 seconds to force restart | |
| Power on status:Press once to take a photo | ||
| Power on status:Short press twice to turn on recording, press again once during the process to turn off and save recording | ||
| Right sliding bar | Under music playback and call status, follow the slider on the right to move forward | |
| Under music playback and call status,press the slider on the right to move backwards | ||
| When music is playing,click on the slider | ||
| Remove glasses while music is playing | ||
| When the music is paused,click on the slider | ||
| Double click the slider while music is playing/pausing | ||
| Appearance /Material | Frame material | TR |
| Temple | PC | |
| lens material | PC | |
| Size/Weight | bare weight | 49.3g |
| Weight of the set | 230g | |
| Color box | 20*8*7cm | |
| Box gauge | 50.5*37.5*22.5cm | |
| Accessory | Smart Glasses | 1pcs |
| packaging box | 1pcs | |
| cleaning cloth | 1 pcs | |
| data line | 1pcs | |
| manual | 1 pcs | |
